Baileigh BV-5I Operator's Manual

OPERATOR'S MANUAL

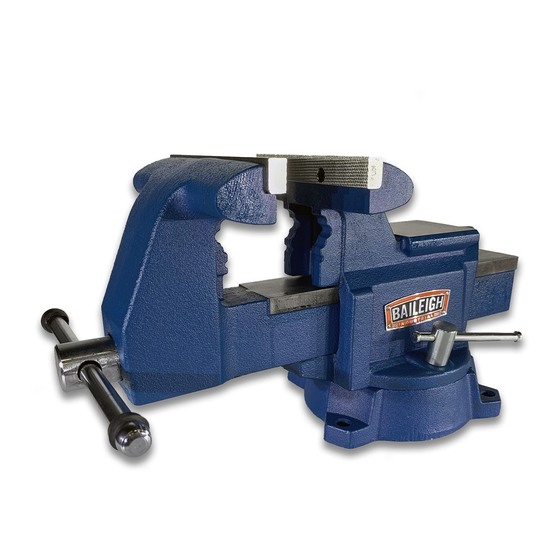

5" INDUSTRIAL BENCH VISE WITH PIPE JAWS
INTRODUCTION
The quality and reliability of the components assembled on a Baileigh Industrial machine guarantee near perfect
functioning, free from problems, even under the most demanding working conditions. However, if a situation arises,
refer to the manual first. If a solution cannot be found, contact the distributor where you purchased our product.
Make sure you have the serial number and production year of the machine (stamped on the nameplate). For
replacement parts refer to the assembly numbers on the parts list drawings.
Our technical staff will do their best to help you get your machine back in working order.
In this manual you will find: (when applicable)
• Safety procedures
• Correct installation guidelines
• Description of the functional parts of the machine
• Capacity charts
• Set-up and start-up instructions
• Machine operation
• Scheduled maintenance
• Parts lists
GENERAL NOTES
After receiving your equipment remove the protective container. Do a complete visual inspection, and if damage is
noted, photograph it for insurance claims and contact your carrier at once, requesting inspection. Also contact
Baileigh Industrial and inform them of the unexpected occurrence. Temporarily suspend installation.
Take necessary precautions while loading / unloading or moving the machine to avoid any injuries.
Your machine is designed and manufactured to work smoothly and efficiently. Following proper maintenance
instructions will help ensure this. Try and use original spare parts, whenever possible, and most importantly; DO
NOT overload the machine or make any modifications.
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL
HOLDINGS LLC IS PROHIBITED. Baileigh Industrial Holdings LLC, Inc. does not assume and hereby disclaims any
liability for any damage or loss caused by an omission or error in this Operator's Manual, resulting from accident,
negligence, or other occurrence.
BV-5I
1
© 2020 Baileigh Industrial Holdings LLC 1
Rev. 04/2020
