GE JD630DF Dimensions And Installation Information

JD630DF
GE 30" Drop-In Electric Range
®

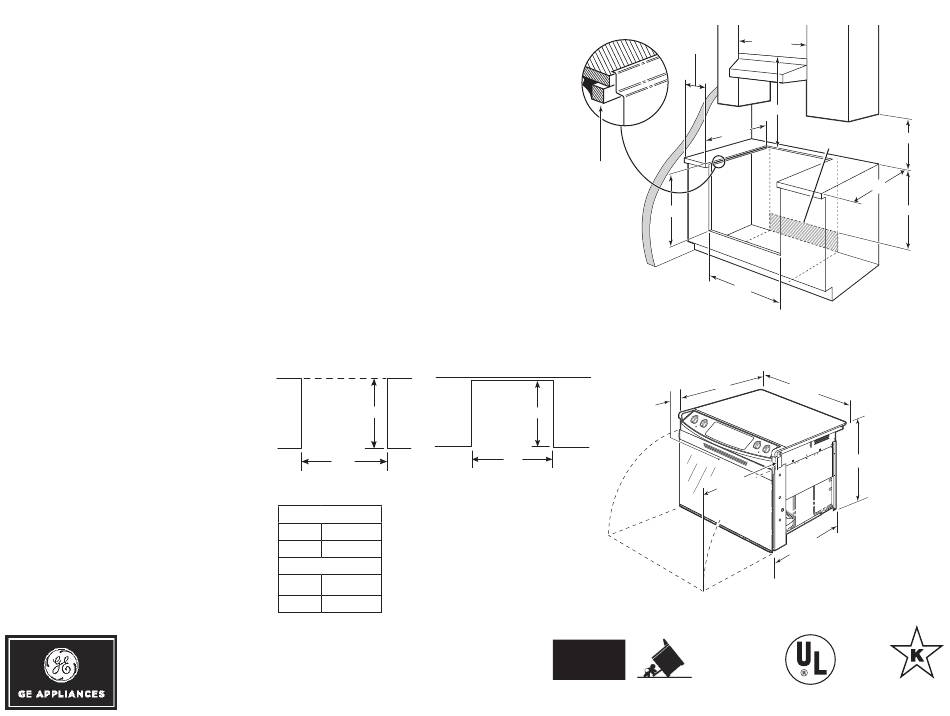

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
JUNCTION BOX LOCATION: Electric drop-ins are not approved for
installation with a plug and receptacle. This range is supplied with a flexible
conduit and must be hard wired to a junction box. See shaded area in drawing for
location of junction box. Refer to installation instructions for more information.
IMPORTANT: 30" DROP-IN RANGES ARE DESIGNED TO HANG FROM THE
COUNTERTOP. IT DOES NOT REST ON THE FLOOR. FOR INSTALLATION
ALTERNATIVES, REFER TO INSTALLATION INSTRUCTIONS.
NOTE: This appliance has been approved for 0" spacing to adjacent surfaces
above the cooktop. However, a 6" minimum spacing to surfaces less than 15"
above the cooktop and adjacent cabinet is recommended to reduce exposure
to steam, grease splatter and heat.
OPTIONAL KITS FOR DROP-IN ELECTRIC RANGES:
(Available At Additional Cost)
Range white filler trim kit WB07T10681
REAR FILLER STRIP:
WB07T10680 – Black Filler Strip Assembly
INSTALLATION INFORMATION: Before
installing, consult installation instructions
for current dimensional data and additional
requirements.
NOTE: Check local codes for required
†
breaker size.
For answers to your Monogram, GE Café
product questions, visit our website at geappliances.com or call
GE Answer Center
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
If you are NOT using the filler strip:
23-3/16"
30"
If you are using the filler strip:
If you are NOT using the filler strip:
25"
30"
KW RATING
240V 11.9
208V 8.9
BREAKER SIZE
240V 40 Amps
†
208V 40 Amps †
™ , GE Profile ™ or GE Appliances
® Service, 800.626.2000.
23-3/16"
DROP-IN ELECTRIC RANGE
DROP-IN ELECTRIC RANGE DROP-IN ELECTRIC RANGE
Recommended
6" Min.
Recommended
from walls
27-1/2"
30"
If necessary,
build up sides
If necessary,
to 1-1/4" thick
build up sides
to provide
to 1-1/4" thick
countertop
If necessary, 27-1/2"
to provide
support
build up sides
countertop
support
to 1-1/4" thick
to provide
countertop
support
If you are NOT using the filler strip:
24"
Above illustration intended for dimensional reference only.
If you are NOT using the filler strip:
2-7/8"
Refer to photograph for actual product appearance.
23-3/16"
To Front Surface
of Countertop
23-3/16"
30"
2-7/8"
23-3/16" 30"
To Front Surface
of Countertop
20-5/8" Door
If you are using the filler strip:
Clearance
From Front
30"
Surface of
25"
Countertop
If you are using the filler strip:
30"
25"
If you are using the filler strip:
30"
25"
Dimension and installation information are shown in inches.
30"
ADA
COMPLIANT
Acceptable Electrical Outlet
Area Also In Adjacent
15" Min.
Cabinet Or Under Floor
Conduit is 40" long
Recommended
25"
6" Min.
30" Min.
from walls
30" Min.
6" Min.
28-1/2"
30" Min.
from walls
30" Min.
30" Min.
Acceptable Electrical Outlet
23-3/16"
Acceptable Electrical Outlet
Area Also In Adjacent
23-3/16"
30" Min.
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long Cabinet Or Under Floor
Acceptable Electrical Outlet
23-3/16"
Area Also In Adjacent
Cabinet Or Under Floor
25"
27-1/2"
27-1/2"
30"
30"
31-1/4"
30"
24"
31-1/4"
27"
24"
2-7/8"
To Front Surface
of Countertop
24"
20-5/8" Door
Clearance
2-7/8" From Front
25-3/4"* Surface of
To Front Surface
Countertop
(excluding handle)
of Countertop
*Total depth from wall to
20-5/8" Door
front of closed oven door
25-3/4"*
Clearance
(excluding handle) including handle is 28-1/2"
From Front
Surface of
Countertop
20-5/8" Door
Clearance
From Front
Surface of
Countertop
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
15" Min.
15" Min.
Conduit is 40" long
15" Min.
Conduit is 40" long
25"
28-1/2"
28-1/2"
25"
28-1/2"
31-1/4"
27"
31-1/4"
27"
*Total depth from wall to
27"
front of closed oven door
including handle is 28-1/2"
25-3/4"*
(excluding handle)
*Total depth from
front of closed
Listed by
including hand
Underwriters
Laboratories
25-3/4"*
(excluding handle)
*Total depth from
front of closed
including hand
Specification Revised 11/20
