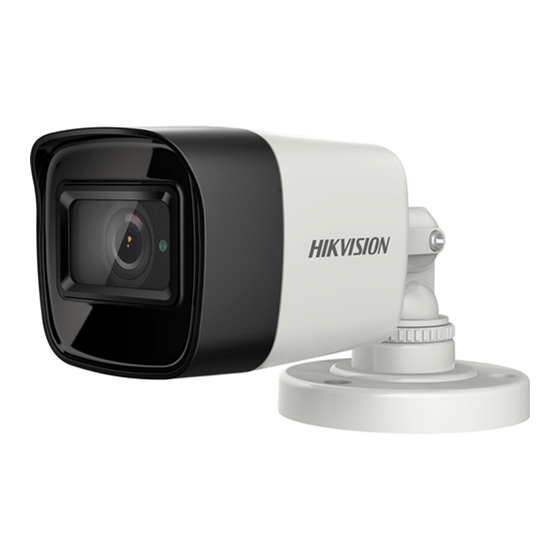

H8T Series Bullet Camera
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
TURBO HD
User Manual
Model
DS-2CE16H8T-ITF
DS-2CE16H8T-IT1F
DS-2CE16H8T-IT3F
DS-2CE16H8T-IT5F
0100001080730
Advertisement
Table of Contents
Related Manuals for HIKVISION TURBO HD H8T Series
Summary of Contents for HIKVISION TURBO HD H8T Series
- Page 1 TURBO HD H8T Series Bullet Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model Type I Camera DS-2CE16H8T-ITF DS-2CE16H8T-IT1F DS-2CE16H8T-IT3F...
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage...
-
Page 5: Installation
1 Introduction 1.1 Product Features The main features are as follows: High performance CMOS sensor IR cut filter with auto switch OSD menu with configurable parameters Auto white balance Internal synchronization SMART IR mode 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) ... - Page 6 Make sure the wall is strong enough to withstand three times the weight of the camera and the bracket. If the wall is cement, insert expansion bolts before installing the camera. If the wall is wooden, use self-tapping screws to secure the camera. If the product does not function properly, contact ...
- Page 7 Figure 2-3 3-axis Adjustment 1). Loosen the P screw to adjust the pan position [0° to 360°]. Tighten the screw after completing the adjustment. 2). Loosen the T screw to adjust the tilt position [0° to 180°]. Tighten the screw after completing the adjustment.
- Page 8 Junction Box Body Figure 2-6 Fix the Junction Box to the Wall/Ceiling 7. Route the cables through the bottom cable hole, or the side cable hole of the junction box. 8. Combine the junction box cover with its body. Figure 2-7 Fix the Junction Box Cover back to its Body 9.
- Page 9 Figure 2-9 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping screws, and expansion bolts. For cement wall/ceiling, expansion bolts are required to fix the camera. For wooden wall/ceiling, self-tapping screws are required. 5. Connect the corresponding power cord, and video cable.
- Page 10 5. Secure the junction box’s body with supplied screws on the ceiling/wall. Figure 2-12 Install the Junction Box 6. Route the cables through the bottom cable hole, or the side cable hole of the junction box. 7. Combine the junction box cover with its body with supplied screws on the junction box’s cover.
-
Page 11: Menu Description
3 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection 2. - Page 12 1). Click up/down direction button to select the item. 2). Click Iris + to confirm the selection. 3). Click left/right direction button to adjust the value of the selected item. 3.1 VIDOE FORMAT You can set the video format as 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, and 2MP@30fps.
- Page 13 3.3 DAY/NIGHT COLOR, BW (Black White), and AUTO are selectable for DAY/NIGHT switch. COLOR The image is colored in day mode all the time. B & W (Black and White) The image is black and white all the time, and the IR LIGHT turns on in the poor light conditions.
-
Page 14: Video Settings
Day to Night Threshold is used to control the sensitivity of switching the day mode to the night mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is. Nà D Threshold (Night to Day Threshold) ... -
Page 15: Motion Detection
You can set the BRIGHTNESS value from 1 to 9 to darken or brighten the image. The higher the value is, the brighter the image is. CONTRAST This feature enhances the difference in color and light between parts of an image. You can set the CONTRAST value from 1 to 9. -
Page 16: Factory Default
Figure 3-9 PRIVACY Select a PRIVACY area. Set the MODE as ON. Click up/down/left/right button to define the position, and the size of the area. 3.6 FACTORY DEFAULT Move the cursor to FACTORY DEFAULT and click Iris+ to reset all the settings to the factory default. 3.7 EXIT Move the cursor to EXIT and click Iris+ to exit the menu without saving.
