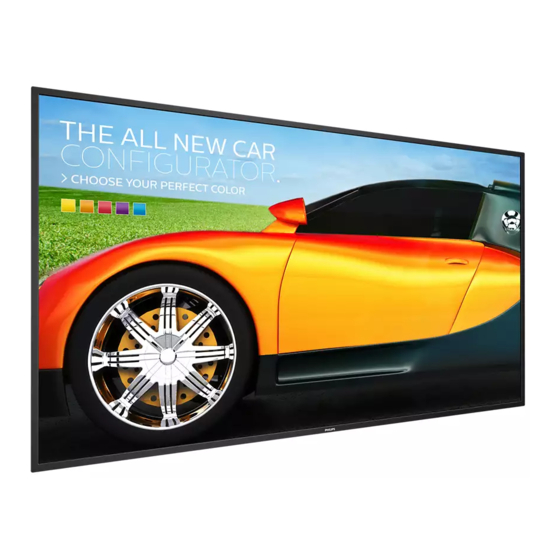

Philips Signage Solutions Q-Line 55BDL3050Q User Manual

55" 4k uhd ultra hd
Hide thumbs
Table of Contents

Advertisement

Quick Links

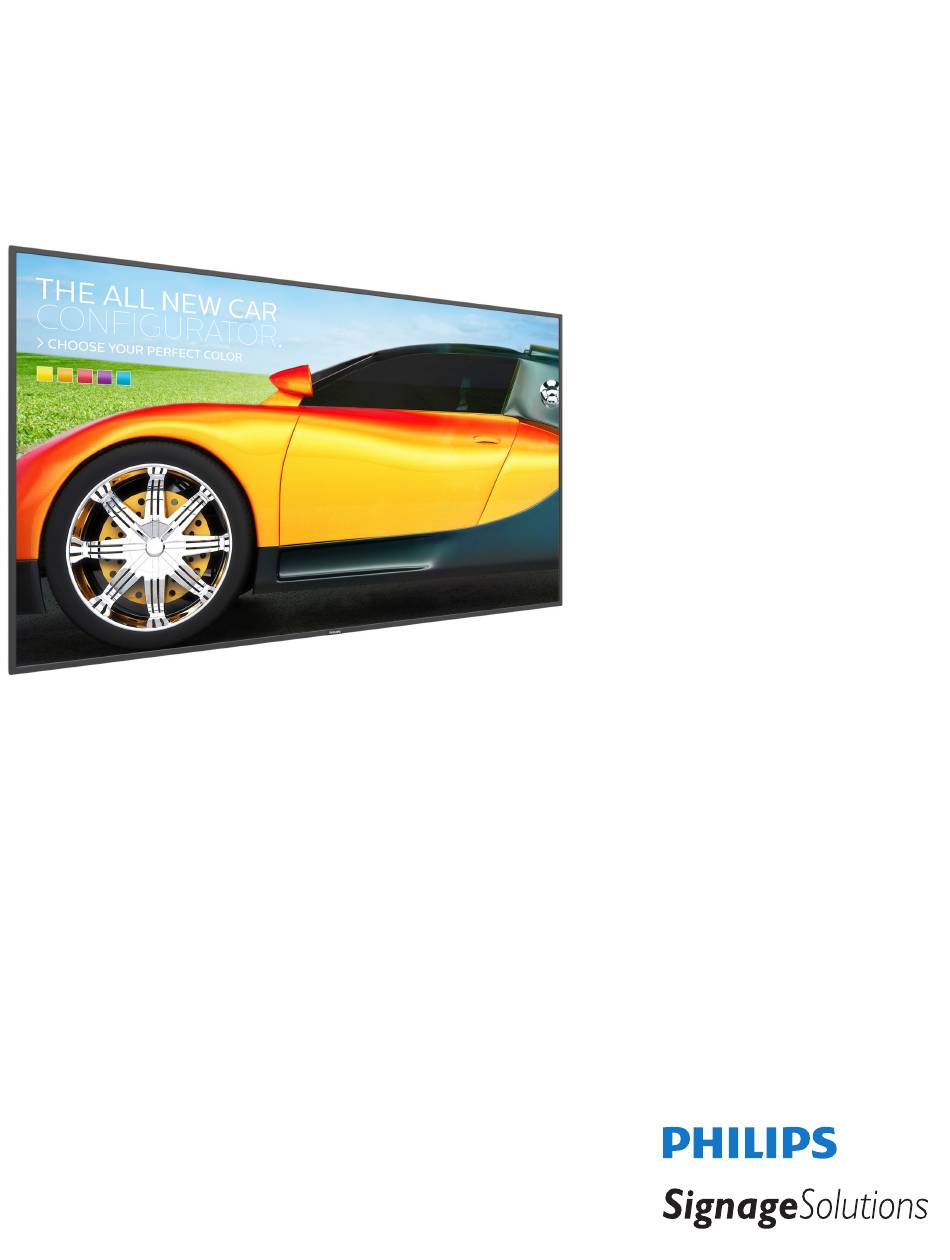

55BDL3050Q
V1.10
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Philips Signage Solutions Q-Line 55BDL3050Q

Summary of Contents for Philips Signage Solutions Q-Line 55BDL3050Q

  • Page 1 55BDL3050Q V1.10 www.philips.com/welcome User Manual (English)
  • Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
  • Page 3 55BDL3050Q Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation..
  • Page 4 55BDL3050Q Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement in Brazil: ANATEL RF STATEMENT Per Article 6 of Resolution 506, equipment of restricted radiation must carry the following statement in a visible location “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. ” ANATEL BODY SAR STATEMENT “Este produto atende aos requisitos técnicos aplicados, incluindo os limites de exposição da Taxa de Absorção Específica referente a campos elétricos, magnéticos e eletromagnéticos de radiofrequência, de acordo com as resoluções n°303/2002 e 533/2009.
  • Page 5 55BDL3050Q Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. 3. We are committed to develop, produce and market products that cause no adverse health effects. 4. We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. 5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products. Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED.
  • Page 6 55BDL3050Q Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ. China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物 质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏 × ○ ○ ○ ○...
  • Page 7 55BDL3050Q 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○...
  • Page 8 55BDL3050Q End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 9 55BDL3050Q Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery. According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou...

  • Page 10: Table Of Contents

    55BDL3050Q Table Of Contents OSD Menu ................40 6.1. Navigating the OSD Menu ..........40 6.2. OSD Menu Overview ............40 Unpacking and Installation ............1 Supported Media Formats ............ 46 1.1. Unpacking ..................1 1.2. Package Contents ................1 Input Mode ................48 1.3. Installation Notes .................1 Pixel Defect Policy ..............

  • Page 11: Unpacking And Installation

    55BDL3050Q Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display NORMAL • Quick start guide SOURCE FORMAT LIST INFO • Remote control with AAA batteries ADJUST OPTIONS • Power cord • RS232 cable ID SET ENTER • RS232 daisy chain cable Remote Control...

  • Page 12: Mounting On A Wall

    55BDL3050Q 1.4. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. Protective Sheet VESA Grid Table 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. 4.

  • Page 13: Parts And Functions

    55BDL3050Q Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button Remote control sensor and power status indicator Use this button to turn the display on or put the display to standby. • Receives command signals from the remote control. • Indicates the operating status of the display without OPS: [MUTE] button - Lights green when the display is turned on Switch the audio mute ON/OFF. - Lights red when the display is in standby mode [INPUT] button - When {SCHEDULE} is enabled, the light blinks green and red Choose the input source. - If the light blinks red, it indicates that a failure has been [ ] button detected • Increase the volume...

  • Page 14: Input/Output Terminals

    55BDL3050Q 2.2. Input/Output Terminals MICRO SD USB 3.0 USB 2.0 AUDIO OUT AUDIO OUT PC LINE IN VGA IN RS232 RS232 IR-IN IR-OUT DVI IN HDMI 1 IN HDMI 2 IN RJ45 AC IN USB 2.0 / USB 3.0 PORT AC power input from the wall outlet.

  • Page 15: Using Of Remote Sensor And Power Indicator

    55BDL3050Q 2.2.1. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. NOTE: I f you do not intend to use the remote control for a long period, remove the batteries.
  • Page 16 55BDL3050Q Push up to collapse the lens Push down to extend the lens...

  • Page 17: Remote Control

    55BDL3050Q 2.4. Remote Control ] LIST button No function. 2.4.1. General functions NAVIGATION buttons Root Menu: Go to Smart picture OSD. Main Menu: Move the highlight bar up to adjust the selected item. IR Daisy Chain Menu: Increase controlled Group ID number. Root Menu: Go to Audio source OSD. Main Menu: Move the highlight bar down to adjust the selected item. IR Daisy Chain Menu: Decrease controlled Group ID number. Main Menu: go to previous level menu.
  • Page 18 55BDL3050Q 2.4.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID You can set the remote control ID when you want to use this remote Mode. The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again.
  • Page 19 5. All media or pdf files should be put at the folder, which is named “philips” with sub-folder, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/music/ pdf) are named by media types and shouldn’t be changed. videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ pdfs : {root dir of storage}/philips/pdf/ Note that the root directories of three storages are Internal storage: /sdcard USB storage: /mnt/usb_storage...
  • Page 20 55BDL3050Q NAVIGATION buttons 2. Media Player -> Compose -> edit or new add playlist -> choose any media files -> press to show the information of the 1. Navigate through menus and choose items. 2. In the content of the web page, these buttons are to control the chosen media file. [ ] OPTIONS button scroll bar of the screen. Press or is for moving vertical scroll Open toolbox in Media Player or PDF Player. bar up or down. Press or is for moving horizontal 1. Media Player ->Compose -> Edit or new add playlist -> press scroll bar left or right. to open toolbox. Toolbox will be slide from the left side of 3. For PDF files, »...

  • Page 21: Connecting External Equipment

    55BDL3050Q Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Out HDMI 1 IN HDMI 2 IN [HDMI IN] 3.2. Connecting a PC 3.2.1. Using VGA input [VGA AUDIO IN] Audio Out PC LINE IN VGA IN...

  • Page 22: Connecting Audio Equipment

    55BDL3050Q 3.2.3. Using HDMI input HDMI 1 IN HDMI 2 IN HDMI Out [HDMI IN] 3.3. Connecting Audio Equipment 3.3.1. Connecting an external audio device [AUDIO OUT] Audio In AUDIO OUT Stereo Amplifier 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board.

  • Page 23: Ir Connection

    55BDL3050Q DISPLAY 1 DISPLAY 2 [RJ-45] [RJ-45] [RS-232C OUT] [RS-232C IN] 3.5. IR connection External IR Receiver DISPLAY 2 DISPLAY 1 [IR IN] [IR IN] [IR OUT] DISPLAY 1 DISPLAY 2 [RS-232C OUT] [RS-232C IN] NOTE: 1. This display’s remote control sensor will stop working if the [IR IN] is connected. 2.

  • Page 24: Ir Pass-Through Connection

    55BDL3050Q 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control...

  • Page 25: Operation

    55BDL3050Q Operation • Admin mode will show five icons: “Settings”, “Apps”, “Network” “Storage” and “Help”. NOTE: T he control button described in this section is mainly on the • When you leave admin mode, system will return to last source. remote control unless specified otherwise. 1)Home page of admin mode, this page has five items: “Settings”, “Apps”, “Network” “Storage” and “Help”. 4.1. Watch the Connected Video Source Settings : go to settings app. 1. Press [ ] SOURCE button.

  • Page 26: Media Player Introduction

    4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ 4.4. Media Player introduction: 1. Home page of Media Player, this page has three items: “Play”, “Compose” and “Settings”. Play : select playlist to play. Compose: edit playlist.
  • Page 27 55BDL3050Q 5. You could edit or delete a non-empty playlist, just choose the 8. Press info key after you choose desired file, you will get the detail desired playlist which is with pencil icon. information. 9. Press play key after you choose desired file, you will play the media 6. Once you start to edit a playlist, you will see below screen. file directly. Source - files in storage. Playlist – files in playlist. There are 4 icons which map to the keys of remote controller. Option key – launch slide bar Play key – play media file. Info key – show media info. Ok key – select/unselect file. 6-1 In the slide bar, it helps you to do the following: - select all : select all storage files. - delete all : delete all playlist files. - add/remove : update playlist from source.

  • Page 28: Browser Manual

    2. U sers can choose 1~7. Press any one will show a dialog. Note : if playlist file contains video and music, when the pd plays music file, the screen will be black. Step 2. Copy mpplaylistX.txt to “philips” folder of internal storage. 3. Enter url and press OK then data will save on List You may use FTP to do this. - File path : /storage/emulated/legacy/philips Ex. /storage/emulated/legacy/philips/mpplaylist1.txt Step 3. Prepare media files to “photo”, “video” and “music” folder under “philips” folder, internal storage only. - Ex. /storage/emulated/legacy/philips/photo/xxx.jpg /storage/emulated/legacy/philips/video/yyy.mp4 /storage/emulated/legacy/philips/photo/zzz.mp3 Step 4.
  • Page 29 55BDL3050Q • Import file and url will show on list 4. Press “Option” then left side will pop up a list Import : Import url list file Export : Export url list file Delete all : Delete all url record on right side Back : left side list will be closed. • File format for import Format should be like below with file extension “txt” 4.1 Import • Click import 4.2 Export: • Click export • Choose storage • Choose storage • Choose file contains urls...
  • Page 30 6. On url list page, if you select non-empty item, it will show a dialog to ask edit or play url. If press “Edit”, it will show edit url dialog, if Step 2. Copy bookmarklist.txt to “philips” folder of internal storage. press “Play”, it will show web page of item’s url. You may use FTP to do this. - File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/bookmarklist.txt Step 3. Start browser app, it will auto import browser text file. PS. Once the playlist file (text) is imported, if an user change playlist by remote controller, this change will not be written to playlist text...

  • Page 31: Pdf Reader Play

    6-1. In the slide bar, it helps you to do the following: playlist to edit between FILE 1 and FILE 7. - select all : select all storage files. The pencil icon means the playlist is non-empty. - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. - back : return. 4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, pdfs : {root dir of storage}/philips/pdf/...
  • Page 32 Step 1. Create pdf player text file. show current page number at the bottom of the page. - File name : pdfplaylistX.txt, “X” means playlist number(1,2,3,4,5,6,7). Ex. pdfplaylist1.txt, pdfplaylist2.txt - Content : Step 2. Copy pdfplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this. - File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt Step 3. Prepare pdf files to “pdf ” folder under “philips” folder, internal storage only. - Ex. /storage/emulated/legacy/philips/pdf/xxx.pdf /storage/emulated/legacy/philips/pdf/yyy.pdf /storage/emulated/legacy/philips/pdf/zzz.pdf...

  • Page 33: Cmnd & Play

    55BDL3050Q 4.7. CMND & Play Custom App Select App 1) Server Setup CMND & Play server address 2) Account Setup CMND & Play account 3) PIN Code Setup CMND & Play PIN code (4) Version There are two options, Ver.2 and Ver.3 Ver. 2 use 2.0/2.2 agreement Ver. 3 4.8.2. Function Introduction use 3.0/3.1 agreement Custom App (5) Content Select App Play Books There are internal storage/SD card/USB storage 3 options for selecting.
  • Page 34 55BDL3050Q If customer installed apk,user can select customer installed apk in list • Case 1: Not set up Custom App case. Customer app will show up and focus on first item automatically. Custom App Select App Play Books After set up, the setting screen display the app name. Custom App Select App Play Books • Case 2: Set up Custom App case(there is entity circle to the right of icon) Custom App Select App Play Music...

  • Page 35: Signage Display

    55BDL3050Q Signage display C. IP Address D. Netmask E. DNS Address 5.1. Setting F. Gateway Main items: (2) Mac Address (1) Wi-Fi (Show up when plug in Wi-Fi dongle) Ethernet (2) Ethernet Main Switch Disable (3) Proxy Enable To see available networks, turn Ethernet on. (4) Signage Display Ethernet Configuration Connection Type (5) System Tools Static IP Mac Address 00:24:67:21:57:ea...

  • Page 36: Proxy

    55BDL3050Q 5.4. Proxy Signage Display General settings Browser connect to Proxy server and ask Proxy server to connect Signage Display Name PD_0024672157ea some website on Internet. Boot Logo Screenshot Server settings Enable/Disable to turn on/off Proxy server. Email Notification • Click “Enable” to switch proxy function “ON” Remote Control SCIP Network Port • Input the “Proxy hostname”. (Proxy server IP address) Source settings Media Player Browser • Input the “Proxy port”. (Proxy server port number) CMND &...
  • Page 37 55BDL3050Q 2) When boot logo selected, PD will check if there is bootanimation. Case 2 zip under USB and SD card. The users do not settle customized boot logo. PD find bootanimation.zip file under SD and USB. The screen will show bootanimation.zip and select the first file automatically. Function introduction: a. Option description /data/local Case 3 Use customized boot animation file which is copied from SD card or The user settle customized boot logo, the screen will show /data/ local/bootanimation.zip. /mnt/external_sd Use boot animations file under SD card /mnt/usb_storage Use boot animations file under USB b. Save Press save key to save SD card or USB bootanimation.zip to /data/ local and set it as boot logo. c. Forget Press Forget key to delete /data/local bootanimation.zip and not show boot logo. d. Cancel Close dialogue w/o changes. 3) If OSD menu Logo item is On or Off, the users cannot choose Scenario introduction: boot animation in Android settings.
  • Page 38 (Multiple selection) 1) Interval Set up interval timeframe. 30 mins or 60 mins. 5)Save to Set up screenshot save path. Internal storage, SD card or USB storage.) Note: picture storage path (1) In root of internal storage/usb storage/sd card, PD will create 2) Start Time folder automatically. Set up screenshot start time. (2) The picture will save to philips/Screenshot/. Note: (1) If no start time, the screen will show current time automatically (2) Just press Back key to exit dialog for Set up (3) Start time cannot be newer than End time. It will show Error toast. 6) Purge Screenshots Set up purge timeframe. One day or One week. 3) End Time Set up screenshot End time...
  • Page 39 55BDL3050Q (7) Send screenshots via email After check this item, it will send screenshot to email of administrator Please refer to Email notification Note: Please confirm Email setting is done. 5.5.2. Server Settings 1. Email Notification Via Enable/Disable to control Email On/Off) After Enable, user can set up Email notification configuration. Gmail safety setting If Gmail is not working when the settings are completed, please test the Gmail account via a PC and the below link https://www.google.com/settings/security/lesssecureapps And confirm on “Access for less secure apps”the“Turn on” item is selected. 1) SMTP Set SMTP configuration) User can set Gmail account or other mail account. User can select other mail account and set up SMTP server, Security type and port item Note Yahoo Email Security Setting Password input limitation If Yahoo Email is not working when setting complete, please confirm (1) Length: 6-20 characters “Allow apps that use less secure sign in” item is enabled.
  • Page 40 55BDL3050Q 3)Test Before password input: Send Test Mail To test Gmail account receive/send function. Note (1) When Email is Disable, “Send Test Mail Button” button will gray 2. FTP Via Enable/Disable to control FTP On/Off. After set up, PD can share FTP files. After password input: 1) Account Set up FTP account Note: Input limitation (1) Length: 4-20 characters Set up completed screen: (2) Format: I. English a-z and A-Z II. Number 0-9 3)Storage Path Show default path: Internal storage Note: 2) Password Can only display Internal storage, cannot be modified.(Only show Set up FTP password.
  • Page 41 55BDL3050Q 4) Will show Server is unbinded if Remote control server feedback (3) Will show Server is unbinded if Remote control server feedback unbinded status. unbinded status. 5) Port Set up FTP port number. Default: 2121 Note: Input limitation (1) Length: Max 5 characters (2) Range: 1024 ~ 65535 (3) Format: Number 0-9 (4) Unavailable port: 5000 (5) The port number must more than 1024 (4) Will show Server is binded if Sever binded successfully. 3. Remote Control Via Enable/Disable to Control Remote Control On/Off User can input Server address. If server does not registered, it will ask user for PIN code. (5)Will show Error PIN code if input incorrect PIN code. Bind status: (1) Will show network is disconnected if not yet connects to network.
  • Page 42 55BDL3050Q 5.5.3. Source Settings Open Browser setting page. 1. Media Player Can Edit Media Player play list and effect settings. 3. CMND & Play 1) Server (1) Open Media Player Player List edit page. Setup CMND & Play server address 2) Account Setup CMND & Play account 3) PIN Code Setup CMND & Play PIN code (4) Version There are two options, Ver.2 and Ver.3 Ver. 2 use 2.0/2.2 agreement Ver. 3 use 3.0/3.1 agreement (5) Content (2) Open Media Player slideshow effect edit page. There are internal storage/SD card/USB storage 3 options for selecting. When Ver.2, Server/Account/PIN code will be gray and unavailable . 2. Browser Can edit Bookmark configuration.
  • Page 43 55BDL3050Q 4. PDF Player Function introduction (1) Open PDF Player Player List edit page. (1) Save (2) Open PDF Player effect edit page. Select App and press Save key to save it. (2) Forget Press Forget key to clean previous stored data (3) Cancel No change, close window directly If no customer installed apk, the list will be blank. No option for choose. Save and Forget key will be gray and unavailable. 5. Custom App User can set up the application for Customer Source. Note (1) Only display User Installed app. (2) Will not show up system pre-install app. Scalar OSD menu operation RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source User can select customer installed apk in list to Customer mode. No setup Custom App Screen will show available apps and focus on first app item automatically. If no set up customer APK, PD will show Black screen when switch source to Customer mode.

  • Page 44: System Tools

    55BDL3050Q 5.6. System Tools After setup, it will show App name System tools 4 main functions: (1) Clear Storage (2) Factory Reset (3) Import & Export (4) Clone Media Files Case2. Setup Custom App. (there is a checked circle on right) 5.6.1. Clear Storage The purpose is to clear all data in Philips folders. Divided into 4 mode: (1) Clear all Philips folders (2) Only clear Philips folder under Internal storage. (3) Only clear Philips folder under USB storage. (4) Only clear Philips folder under SD card. 5.5.4. Security Pop-up the window to display all folders which can be clear. 1. External Storage Enable: SD card/USB External Storage Lock. Disable: SD card/USB External Storage Unlock. Note: Must re-plug SD card/USB External Storage after unlock the external storage.

  • Page 45: Clone Media File

    (1) Settings.db (Saved file name: settings.db) (2) Will save to Philips folder in storage 5.6.3.1. Export Signage Display Settings Will export to Philips folder under USB or SD card (1) E xport settings.db. Include OSD setting, Android settings but “Signage Display Name” and “Boot Logo” (2) Export 3 party apk to Philips/app/ Note: 5.7. Clone Media File If no Philips folder exists in USB or SD card, it will be created automatically. Clone media file from Internal, SD or USB Philips folder. List all available storage (internal/SD/USB) 1. The cloned folder name under Philips folder (1) philips/photo (2) philips/music (3) philips/video (4) philips/cms (5) philips/pdf (6) philips/browser 2.

  • Page 46: Display

    55BDL3050Q 5.8. Display User can modify the font size, can choose: Small/Normal/Large/Huge 5.11. Date & time Via Scalar OSD menu to control Auto Time On/Off. Note: 5.9. Apps Add new NTP server to display current server IP . Display applications information. Note (1) User options key on RCU to show setting option. 5.12. Developer options Android developer options. For more information please visit https://developer.android.com/index.html 5.10. Security (1) Credential storage Control panel of certificates...

  • Page 47: About

    55BDL3050Q 5.13. About Main info in About: (1) System updates (2) Android version (3) Kernel version (4) Build number 5.14.2. How to custom an Android boot animation? 1. Overview The Android boot animation is used script to load PNG files when the device boots. It is contained within an uncompressed zip file called bootanimation.zip. 2. Inside the bootanimation.zip file 5.13.1. System updates The bootanimation.zip as follow: Will automatically search update.zip in USB. • The image folder (Contains PNG images named in incremental Will be shown in list for user selection if found numbers) Note: • The desc.txt file (1) Only support Android Full image. (2) file name should be update.zip.
  • Page 48 55BDL3050Q The first ‘p’ defines play mode is immediately stop playing when boot complete. The number after ‘p’ defines repeat mode - specifying 0 would make the par t loop indefinitely till the device has boot complete. - specifying 1 would make the part playback once. The next number defines the delay time(ms). For example, if set 10, when all image files has been playback, system will delay 10ms. The part0 and part1 are image folder name. The above example, the boot animation will play at a resolution of 1920 by 1080 pixels, at a frame rate of 30 fps, starting with the contents of part0 folder and after playing them in one loop, switching to contents of part1 folder and playing them continuously till the device boot complete.
  • Page 49 1.2 Go to Admin Mode > Apps > File Manager 1.3 Using File Manager and find out your apk and then you can install. Just press “ok” on the selected apk. 2. Download apk by Chromium browser, and then go to <internal storage path>/Download/ by File Manager. 2.1 The rest of steps is the same as above. Please note, each model may have different <internal storage path>. (b) Via Adb Shell 1. Make sure that your PC can connect to Philips Android Signage Display using adb. 2. Prepare your apk in a folder(for example, C:\apkfolder) on PC. 3. Execute the following instruction by command line tool. C:\apkfolder> adb install -r apk_name.apk (c) Via Customized Intent 1. If you develop an apk which can download any android app, then your apk can issue a customized intent. 2. Giving the apk name and the path it was stored. The system will help you to install by program.

  • Page 50: Osd Menu

    55BDL3050Q OSD Menu 6.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 6.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 6.1. Navigating the OSD Menu Picture Brightness Screen Contrast Audio Sharpness 6.1.1. Navigating the OSD menu using the Configuration 1 Black level remote control Configuration 2 Tint Advanced option Color...
  • Page 51 55BDL3050Q Color control Zoom mode The color levels of red, green, and blue are adjusted by the color bars. HDMI, DVI, VGA: {Full} / {4:3} / {Real} / {21:9}/ {Custom}. Playing media in Media Player : {Full} / {4:3} / {Real} / {21:9} R: Red gain, G: Green gain, B: Blue gain. There are no function when BROWSER, CMND & Play, PDF Player, PDF Smart power Player, Custom and Media Player UI and Android UI...
  • Page 52 55BDL3050Q Auto adjust 6.2.4. Configuration1 menu Press “Set” to detect and adjust H position, V position, Clock, Phase automatically. Picture Switch on state Force on NOTE: VGA input only. Screen Panel saving Action Audio RS232 routing RS232 Screen reset Configuration 1 Boot on source Action Reset all settings in the Screen menu to factory preset values. Configuration 2 Advanced option Configuration1 reset...
  • Page 53 The information OSD will remain on the screen with {Off} selection. SW Version FBXX.XX The options are: {1 ~ 60} seconds. Logo Choose to enable or disable the picture of Logo when turn on your HDMI Version display. Set the HDMI version to 1.4 or 2.0, this setting is only valid on HDMI The options are: input • {Off} Configuration2 reset • {On} (Default) Reset all settings in Configuration2 menu to the factory preset values. • {User} 1. If Logo set to ON, both scalar Philips logo and android animation Philips logo will show. 2. If Log set to OFF, neither scalar Philips logo nor android animation logo will not show.
  • Page 54 55BDL3050Q 6.2.6. Advanced option menu • {ACS}: Apply brightness value (backlight) which is adjusted by MIC tool. The default value before adjustment is the same as OSD brightness value, e.g., 70) Picture IR control Unlock • Type: {Off} (Default)/{SW Tool}/{OSD Only} Screen Power LED Light • Source resolution: {Full HD}(Default)/ {4K} Audio Keyboard control Unlock Configuration 1 Tiling Action •...
  • Page 55 55BDL3050Q • Schedule list: You can set 7 schedules. Following table is the action for Android board with different power mode. • Enable: Enable/disable schedule. If set start/end time is conflict or empty, input is empty or time conflict with other schedule list, you DC off/on: press power button by RC cannot enable schedule. Power mode in OSD Mode 1/2 Mode 3/4 • Start time: Set start time. DC off shutdown 1. The current source APK(such • End time: Set end time. as MediaPlayer, Broswer, PDF or •...

  • Page 56: Supported Media Formats

    55BDL3050Q Supported Media Formats USB Multimedia Codec Formats Video Decode Type Video Codec Container Decode Encode Channel Remark MPEG program stream (.DAT, .VOB, .MPG, .MPEG) MPEG transport stream (.ts) Max Resolution: 1080P@60fps MPEG1/2 MPEG1/2 MP4 (.mp4) Max Bit Rats : 40Mbps AVI (.avi) MKV (.mkv) MP4 (.mp4) Max Resolution: 1080P@60fps MPEG-4 MPEG4 AVI (.avi)
  • Page 57 55BDL3050Q Image Decode Type Image Codec Photo Decode Encode Channel Remark Max Resolution: 7000 x 7000 JPEG JFIF file format 1.02 File Format: JPG, JPEG The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: BMP The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: PNG The limitation of max resolution depends on DRAM NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

  • Page 58: Input Mode

    55BDL3050Q Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 480 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array 60 Hz 40 MHz SVGA 600 Super VGA 75 Hz 49.5 MHz 60 Hz 65 MHz 1024 768 Extended Graphic Array 75 Hz 78.75 MHz WXGA...

  • Page 59: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 9.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 60: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 9.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 9.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 61: Cleaning And Troubleshooting

    55BDL3050Q Cleaning and Troubleshooting 10.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.

  • Page 62: Troubleshooting

    55BDL3050Q 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible Caused by surrounding electrical appliances or Move the display to another location to see is the noise is heard...
  • Page 63 55BDL3050Q How to setup the settings in the menu to Daisy chained by RS232 and no IR cable 1. The first display sets as “Primary” on OSD control all the monitors at the same time and (Advanced option/IR control item), others set as individually via RC? “Secondary”. 2. The setup OSD will show on Top-Left of display. (Toggle MENU will show again if it disappear) 3. Default setting: ID NO: 0, GP NO: 0, this setting can control all displays by IR.

  • Page 64: Technical Specifications

    55BDL3050Q Technical Specifications Display: Item Specifications Screen Size (Active Area) 138.7 cm / 54.6 inch Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.315 (H) x 0.315 (V) [mm] Displayable colors 10 bits(D), 1.07 Billion colors Brightness (typical) 350 cd/m Contrast ratio (typical) 4000:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω 82 dB/W/M/160 Hz ~ 13 KHz Audio Output RCA R/L x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input 3.5mm phone jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) RS232C 2.5mm Phone jack x 2 RS232C in/RS232C out RJ-45 RJ-45 Jack x 1 (8 pin)
  • Page 65 55BDL3050Q General: Item Specifications Power Input 100 - 240V~, 50 - 60Hz, 2.5A Power Consumption (Max) 200 W Power Consumption (typ.) 150 W Power Consumption (Standby & Off) <0.5 W Dimensions (Without Stand) [W x H x D] 1239.2 x 727 x 61.7 mm Weight (Without Stand) 15.96 Kg Gross Weight (Without Stand) 23.0 Kg Product Fiche : Item Specifications Energy Efficiency Class Visible Screen Size 138.7 cm / 54.6 inch On Mode Power Consumption (W) 145 W Annual Energy Consumption (kWh) 212 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W) 0.50 W Display Resolution (Pixels) 3840 x 2160 Network Standby (W) Environmental Condition: Item...
  • Page 66 2017 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
