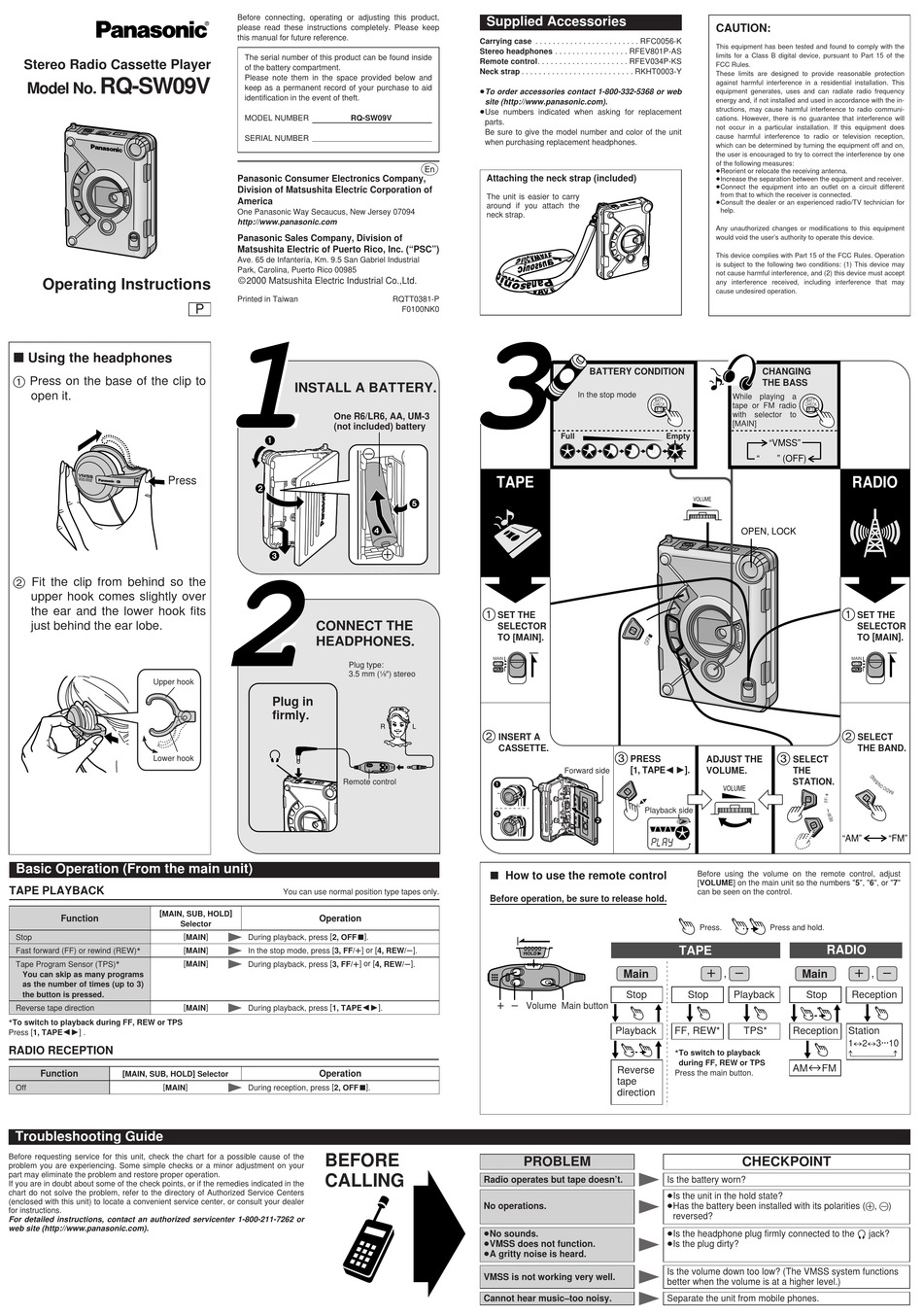

Panasonic RQ-SW09V Operating Instructions

Stereo Radio Cassette Player
RQ-SW09V
Model No.
Operating Instructions
∫ ∫ Using the headphones
1 Press on the base of the clip to
open it.
Press
VIRT UAL
MOT ION
SOU ND
SYST EM
L
2 Fit the clip from behind so the
upper hook comes slightly over
the ear and the lower hook fits
just behind the ear lobe.
Upper hook
Lower hook
Basic Operation (From the main unit)
TAPE PLAYBACK
[ MAIN, SUB, HOLD ]
Function
Selector
Stop
Fast forward (FF) or rewind (REW) *
Tape Program Sensor (TPS) *
You can skip as many programs
as the number of times (up to 3)
the button is pressed.
Reverse tape direction
* To switch to playback during FF, REW or TPS
Press [ 1, TAPE21 ] .
RADIO RECEPTION
Function [ MAIN, SUB, HOLD ] Selector
[ MAIN ]
Off
Troubleshooting Guide
Before requesting service for this unit, check the chart for a possible cause of the
problem you are experiencing. Some simple checks or a minor adjustment on your
part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the
chart do not solve the problem, refer to the directory of Authorized Service Centers
(enclosed with this unit) to locate a convenient service center, or consult your dealer
for instructions.
For detailed instructions, contact an authorized servicenter 1-800-211-7262 or
web site (http://www.panasonic.com).
Before connecting, operating or adjusting this product,
please read these instructions completely. Please keep
this manual for future reference.
The serial number of this product can be found inside
of the battery compartment.
Please note them in the space provided below and
keep as a permanent record of your purchase to aid
identification in the event of theft.
MODEL NUMBER RQ-SW09V
SERIAL NUMBER
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of
America
One Panasonic Way Secaucus, New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company, Division of
Matsushita Electric of Puerto Rico, Inc. ("PSC")
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial
Park, Carolina, Puerto Rico 00985
©2000 Matsushita Electric Industrial Co.,Ltd.
Printed in Taiwan
P
1
INSTALL A BATTERY.
One R6/LR6, AA, UM-3
(not included) battery
1
2
3
2
CONNECT THE
HEADPHONES.
Plug type:
3.5 mm (
Plug in
firmly.
Ë
Remote control
You can use normal position type tapes only.
Operation
[ MAIN ] During playback, press [ 2, OFF ∫ ] .
[ MAIN ] In the stop mode, press [ 3, FF/r ] or [ 4, REW/s ] .
[ MAIN ] During playback, press [ 3, FF/r ] or [ 4, REW/s ] .
[ MAIN ] During playback, press [ 1, TAPE21 ] .
Operation
During reception, press [ 2, OFF ∫ ] .
BEFORE
CALLING
Supplied Accessories
Carrying case . . . . . . . . . . . . . . . . . . . . . . . . RFC0056-K
Stereo headphones . . . . . . . . . . . . . . . . . RFEV801P-AS
Remote control. . . . . . . . . . . . . . . . . . . . . RFEV034P-KS
Neck strap . . . . . . . . . . . . . . . . . . . . . . . . . . RKHT0003-Y
≥ To order accessories contact 1-800-332-5368 or web
site (http://www.panasonic.com).
≥Use numbers indicated when asking for replacement
parts.
≥Be sure to give the model number and color of the unit
when purchasing replacement headphones.
p
Attaching the neck strap (included)
The unit is easier to carry
around if you attach the
neck strap.
RQTT0381-P
F0100NK0
3
-
TAPE
5
4
+
1
SET THE
SELECTOR
TO [MAIN].
MAIN
SUB
HOLD
1 ⁄ q) stereo
8
R L
2
INSERT A
CASSETTE.
1
3
∫ How to use the remote control
Before operation, be sure to release hold.
HOLD
r s Volume Main button
PROBLEM
Radio operates but tape doesn't.
No operations.
≥No sounds.
≥VMSS does not function.
≥A gritty noise is heard.
VMSS is not working very well.
Cannot hear music–too noisy.
CAUTION:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
≥Consult the dealer or an experienced radio/TV technician for
help.
Any unauthorized changes or modifications to this equipment
would void the user's authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
BATTERY CONDITION
In the stop mode
While playing a
BATT
CHECK tape or FM radio
r 5
with selector to
[MAIN]
Full Empty
VOLUME
3
PRESS ADJUST THE
[ 1, TAPE2 1 ] . VOLUME.
Forward side
VOLUME
Playback side
2
F
Before using the volume on the remote control, adjust
[VOLUME] on the main unit so the numbers "5", "6", or "7"
can be seen on the control.
Press.
TAPE
Main r , s
Stop Stop Playback
Playback FF, REW*
* To switch to playback
during FF, REW or TPS
Reverse
Press the main button.
tape
direction
Is the battery worn?
≥Is the unit in the hold state?
≥Has the battery been installed with its polarities (+, -)
reversed?
≥Is the headphone plug firmly connected to the Ë jack?
≥Is the plug dirty?
Is the volume down too low? (The VMSS system functions
better when the volume is at a higher level.)
Separate the unit from mobile phones.
CHANGING
THE BASS
BATT
CHECK
r 5
"VMSS"
" " (OFF)
RADIO
OPEN, LOCK
1
SET THE
SELECTOR
TO [ MAIN ] .
MAIN
SUB
HOLD
2
SELECT
THE BAND.
3
SELECT
THE
STATION.
"AM" "FM"
Press and hold.
RADIO
Main r , s
Stop Reception
TPS* Reception Station
1,.2,.3···10
^""""""J
AM FM
CHECKPOINT
