Summary of Contents for Motorola amphisoundX MT100-SB21

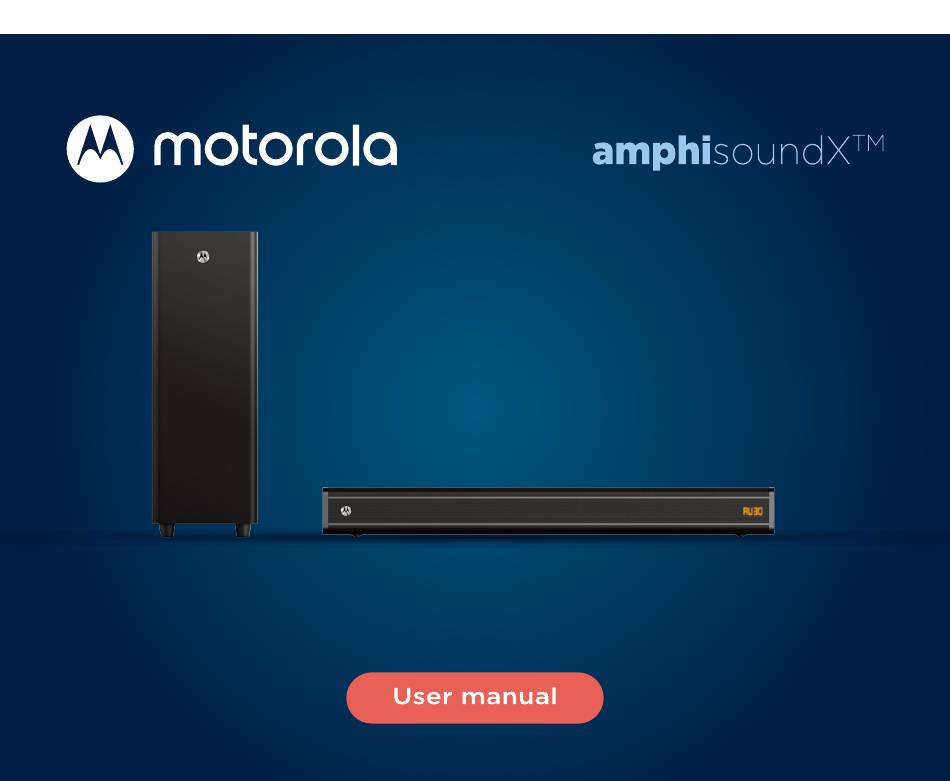

- Page 1 105g铜版纸彩色印刷，装订成册，成品尺寸L140*H110MM，料号：30408L000037-002 100W 2.1 SOUNDBAR MT100-SB21...
- Page 2 Subwoofer Soundbar AUX cable User manual Power cable Insert card Remote Control Wall Mount Kit...
- Page 3 wall mountable wall mountable Installation guide: 1. Connect the subwoofer cable to Subwoofer port at the Soundbar back panel. 2. Connect the Soundbar Power cable to soundbar & Plug into AC Source. 3. Turn on using Remote/side Panel& connect with AUX/BT/HDMI/Optical Audio Source. Note: If connected with HDMI cable, make sure your TV CEC/Digital pass-through settings are turned on.
-
Page 4: Wall Mount Installation Instructions
Wall mount installation instructions: Step 1: Remove the 4 Wall-mount screws behind the Soundbar. Step 2: Attach the Wall-mount attachment to soundbar and screw back the screws that were removed in step-1. Step 3: Put the Wall-screw-kit on the wall and hang the soundbar with wall-mount attachment. - Page 5 Side panel operation 4. + USB Slot 3. - Switch on/ change the mode Stand-by Play / Pause the songs in Press “ ” for continuous 3 seconds to USB*/BT mode. force disconnect the Bluetooth In USB*/BT mode, press it to be Press it to decrease volume previous song Press it to increase volume...
-
Page 6: Remote Controls
Remote controls Power on/Power o . 2. BASS : Press it and + or - to increase or decrease Bass. 3. TREBLE : Press it and + or - to increase or decrease treble. BASS TREBLE 4. : Short press to increase volume, long press to increase volume continuously . 5. - Page 7 Motorola 100w SB blinking slowly;...
- Page 8 Place the soundbar on the wall or on top of TV for better listenning.
- Page 9 and whether HDMI (ARC) feature is available on the TV.
- Page 12 Total system power 100W Soundbar speaker 2 Way Soundbar power 25W x 2 Speaker size 2.25 inch x 2 Subwoofer power Impedance 8 Ohm Separation >40db Frequency range 180Hz - 20KHz >60db Product Dimension (mm) L x W xH 600 x 83 x 66 Audio input socket 3.5mm stereo Net Weight...
