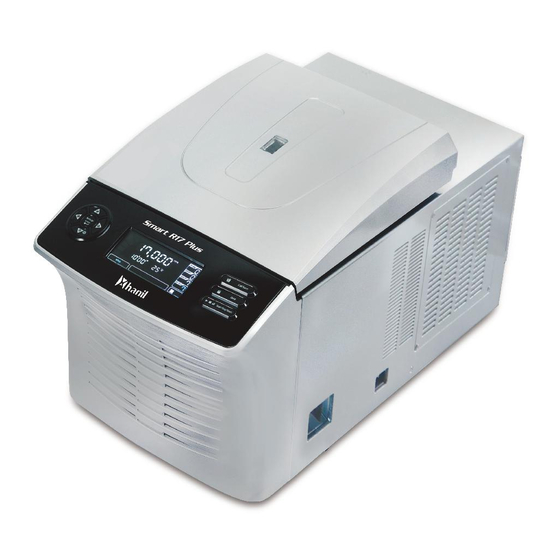

Hanil Smart R17 Plus Quick Manual

Quick Guide
Display & Control Panel
Cursor keys / Enter
Function selection(◀,▶)
Up or down the values(▲,▼)
Save the values(●)
Fast Cool
(Smart R17 Plus)
Quickly lower the temperature
inside the chamber and rotor to
the desired temperature
Setting Run Parameters
(RPM / RCF / Time / Temperature (R17) / ACC / DEC)
Press the Setup /
Select a parameter to be
Enter button
changed (Press the ◀or▶ but-
ton) → Up or down the values
(Press the ▲or▼ button)
RPM setting mode: RPM flashes
RCF setting mode : RCF flashes
Time setting mode: 00' 00'' flashes
Temperature setting mode : 00 ℃ flashes
ACC/DEC setting mode : Accel/Decel flashes
Smart R17 Plus / Smart 15 Plus
Cat. No. : SM-R17PL / SM-15PL
Display Sceen
RPM / RCF / Time / Temperature(R17) / Program / ACC / DEC
Saving / Calling Up a Program
Press the Setup / Press the
Call / Save button
Enter button
Save
Select the program number → Press the Enter button
→ Set the parameters → Press the Setup / Enter button
Call up
Select the program number → Press Setup / Enter button
Serial No.
Select the program number Press the Setup /
Enter button
(Press the ▲or▼ button)
Program Save / Call
Saving / Calling up a program (Up to 10)
Max. RPM
Max. RCF
Timer
Temperature
Lid Open
Range
ACC / DEC
Ramps
Start / Stop / Short
- Start or stop the centrifugation
- Short run centrifugation
Fast Cool (Smart R17 Plus)
Set the desired temperature
(see 'Setting Run Parameters')
Short Spin
Set the desired Speed
(see 'Setting Run Parameters')
Installation Date
Smart R17 Plus Smart 15 Plus
17,000 rpm 15,000 rpm
23,005 xg 21,055 xg
< 100 min, pulse,
continuous
-10℃ to
-
40℃
9/10
Press the Fast cool
button more than 2sec.
Press the short button
more than 2 sec.
