Speed
Displays the port speed.
Duplex Displays the duplex mode.
Flow Control Displays the flow control.
LAG Mode Displays the LAG mode.
Detail To create a new LAG, click Detail in the Detail
column to display the Link Aggregation detail screen.

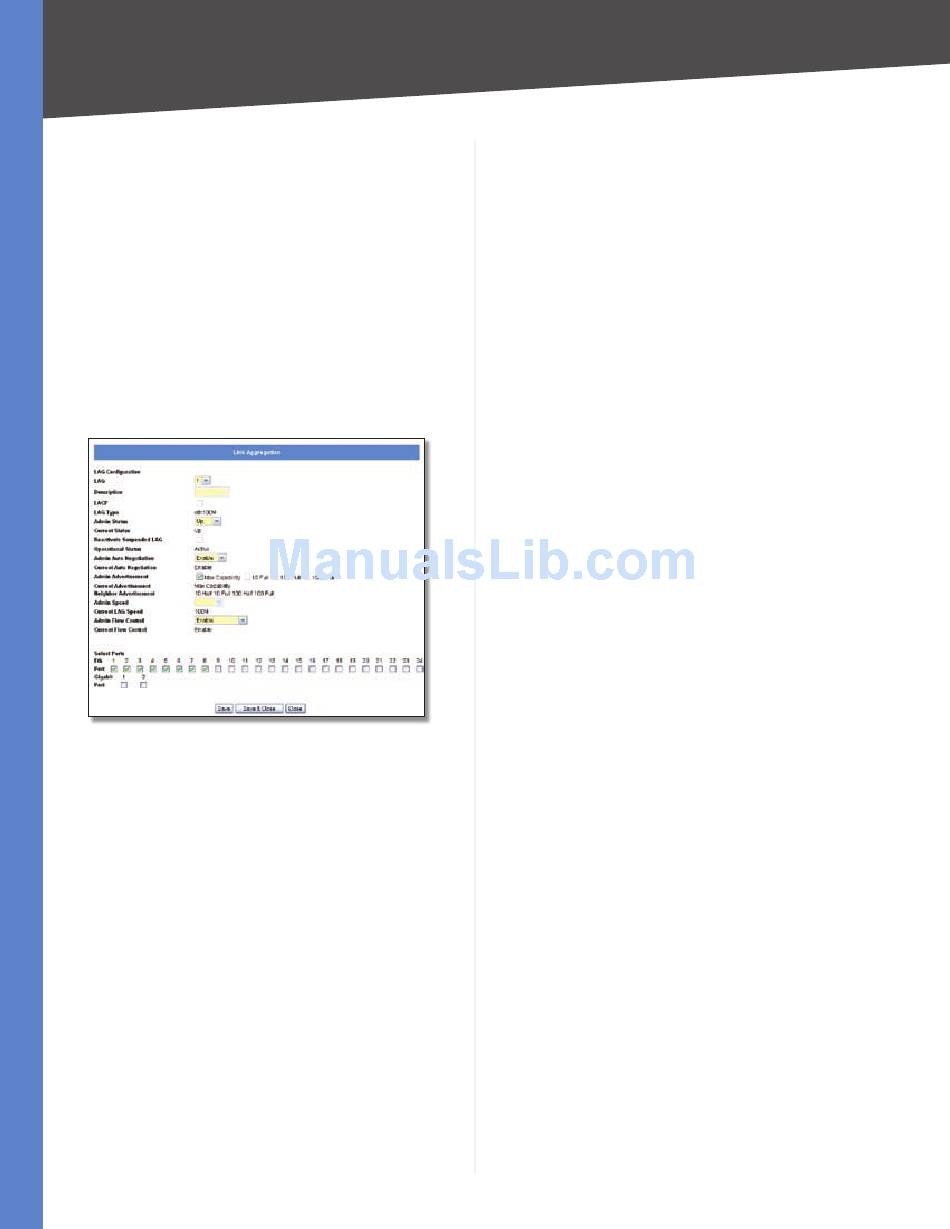

LAG Configuration
The Link Aggregation detail screen lets you configure a
LAG. You can create a LAG, select its ports, enable/disable
the LAG, and set the capability advertisements, speed,
duplex mode, and flow control. To use this screen, click
Detail on the Port Settings screen.
Port Management > Link Aggregation > Detail
LAG
The LAG number (-8). To display or edit another
LAG, select the number from the drop-down menu.
Description
The user-defined LAG description of up to
64 characters. This field is blank by default.
LACP Select the checkbox to enable Link Aggregation
Control Protocol (LACP).
LAG Type
(Read-only) The LAG type. The possible values
are:
eth00m
The LAG contains 100 Mbps Ethernet ports.
•
eth000m
The LAG contains 1000 Mbps Ethernet
•
ports.
Admin Status The LAG's administrative status. Select
either Up or Down to enable or disable the LAG.
Current Status (Read-only) The LAG's status, either Up or
Down.
Reactivate Suspended LAG
suspended, select this checkbox to reactivate the LAG.
Business Series Smart Gigabit Ethernet Switch
If the LAG has been
Configuration Using the Web-based Utility
Operational Status
(Read-only) Displays whether the
LAG is operational or non-operational.
Admin Auto Negotiation
Disable to enable or disable Auto-Negotiation on the
LAG. Auto-Negotiation allows a LAG to advertise its
transmission rate, duplex mode, and flow control settings
to other LAGs.
Current Auto Negotiation
Auto-Negotiation status.
Admin Advertisement
and duplex modes) that the LAG will advertise. The
available speeds are determined by the LAG port type.
The duplex mode must be full-duplex. The following
capabilities are supported.
Max Capability The LAG advertises all port speeds in
•
full-duplex mode.
0 Full
The LAG advertises 10 Mbps full-duplex
•
operation.
00 Full
The LAG advertises 100 Mbps full-duplex
•
operation.
000 Full (Gigabit ports only) The LAG advertises
•
1000 Mbps full-duplex operation.
Current Advertisement
and duplex mode settings that the LAG is currently
advertising.
Neighbor Advertisement
duplex mode settings that the neighbor port (the port to
which the selected LAG is connected) is advertising. If the
LAG has no neighbor port, this field displays "Unknown. "
Admin Speed Use this to manually set the LAG's
configured transmission rate in Mbps. You can select 0M,
00M, or 000M (Gigabit ports only). Before you change
this setting, make sure that Admin Auto Negotiation is
disabled.
Current LAG Speed
(Read-only) The LAG's current rate in
Mbps.
Admin Flow Control
manually enable or disable flow control, or select Auto-
Negotiation for automatic selection of flow control.
Current Flow Control
control setting.
Select Ports To add a port to the LAG, select its checkbox
in this section. You can select up to 8 ports per LAG.
Click Save to save the settings and leave the screen open.
Click Save & Close to save the settings and close the
screen. Click Close to close the screen without saving the
settings.
Select Enable (default) or
(Read-only) The LAG's current
Select the capabilities (speeds
(Read-only) The speed
(Read-only) The speed and
Select Enable or Disable to
(Read-only) The current flow
