REF: TC-105
8 CHANNEL
DMX PUSHER
QUICK USER GUIDE /
MANUAL DE INSTRUCCIONES

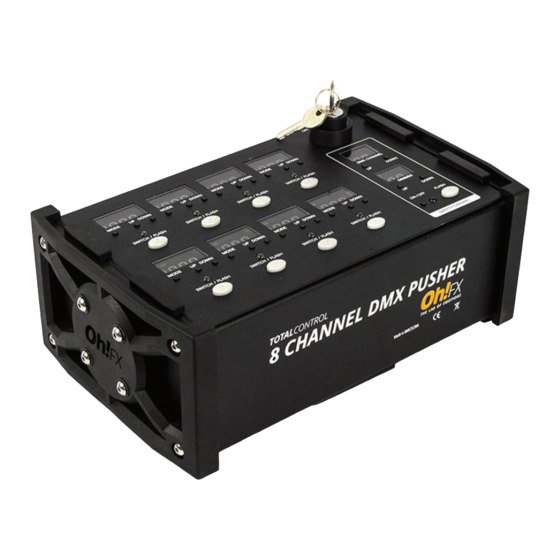

The 8 CHANNEL DMX PUSHER is a device designed to control eff ect machines with DMX signal (on/
off ).
/ El 8 CHANNEL DMX PUSHER es un controlador DMX para máquinas de efectos especiales (on/
off ).
TECHNICAL SPECIFICATIONS
/ ESPECIFICACIONES TÉCNICAS
Weight
/ Peso:
2,70 Kg
Dimensions
/ Dimensiones:
27,8 X 17,40 X 12,30 cm
Power
/ Alimentación:
110-230 V. 50-60 Hz
Consumption
/ Consumo:
1A
Advertisement
Summary of Contents for Oh!FX TC-105
- Page 1 REF: TC-105 8 CHANNEL DMX PUSHER QUICK USER GUIDE / MANUAL DE INSTRUCCIONES The 8 CHANNEL DMX PUSHER is a device designed to control eff ect machines with DMX signal (on/ off ). / El 8 CHANNEL DMX PUSHER es un controlador DMX para máquinas de efectos especiales (on/ off...

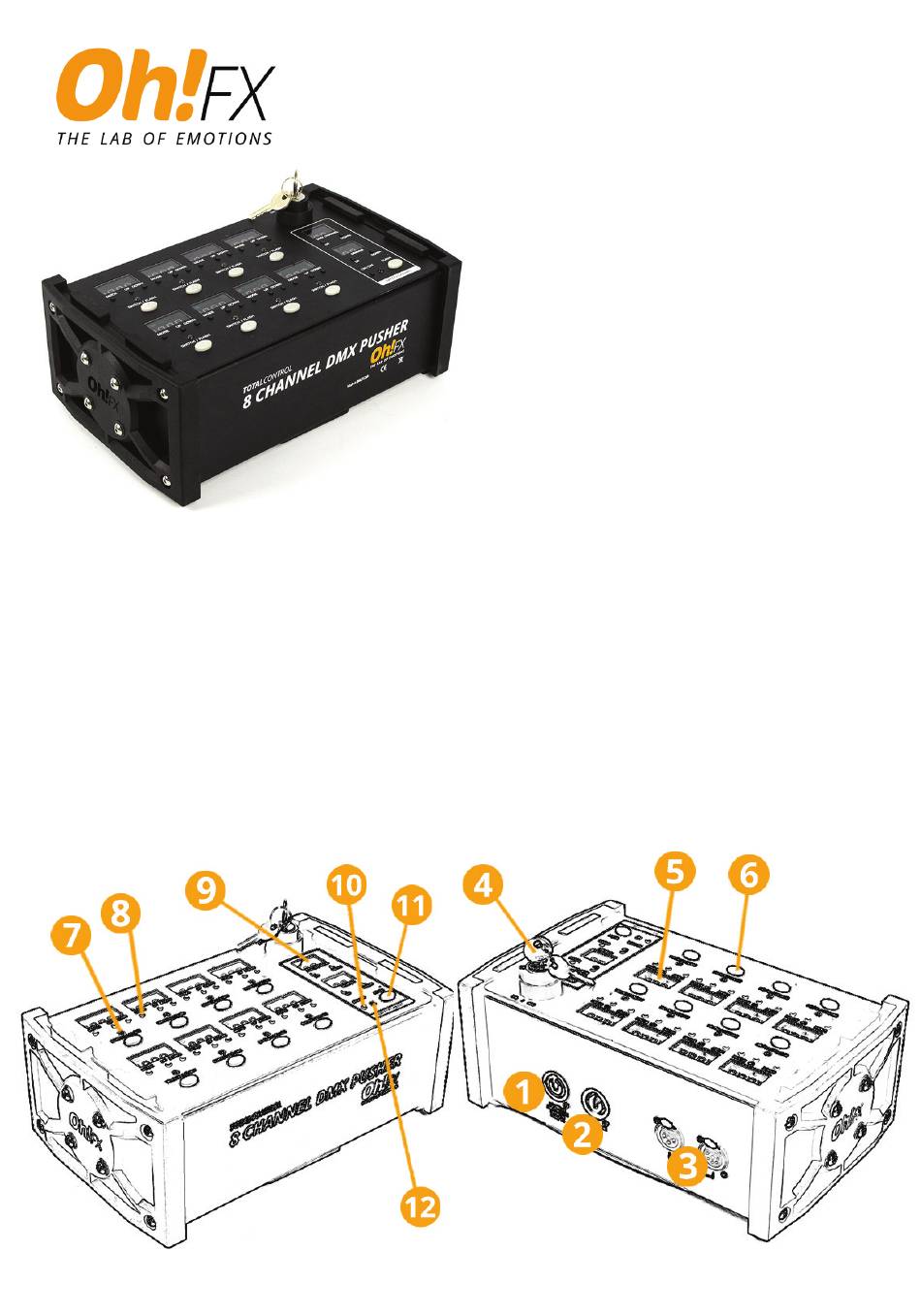

- Page 2 INSTRUCTION MANUAL 8 CHANNEL DMX PUSHER Power Input (power In) / Entrada de corriente (powercon) Link current / Link corriente DMX Output / Salida DMX Safety Key / Llave de seguridad Operating Channels of DMX / Canales operativos DMX Activation button / Botón de accionamiento Activation Led indicator / Led indicador de accionamiento...
- Page 3 INSTRUCTION MANUAL 8 CHANNEL DMX PUSHER that channel and will indicate that it has already been activated/fi red with a blink on the led indicator (7). SECURITY CHANNEL Some eff ect machines are equipped with a safety channel protecting against accidental activations. Thus, in the same way, the 8 CHANNEL DMX PUSHER device is equipped with an unlocker fuction for the safety channel (9) so that to be able to operate with these machines.
- Page 4 Oh!FX will not be responsible for any accident or damage caused as a result of: failure to comply with the warnings or instructions set for this device, use for other purposes that are not expressly indicated in these instructions, manipulation of this device by unauthorized people, insuffi...
