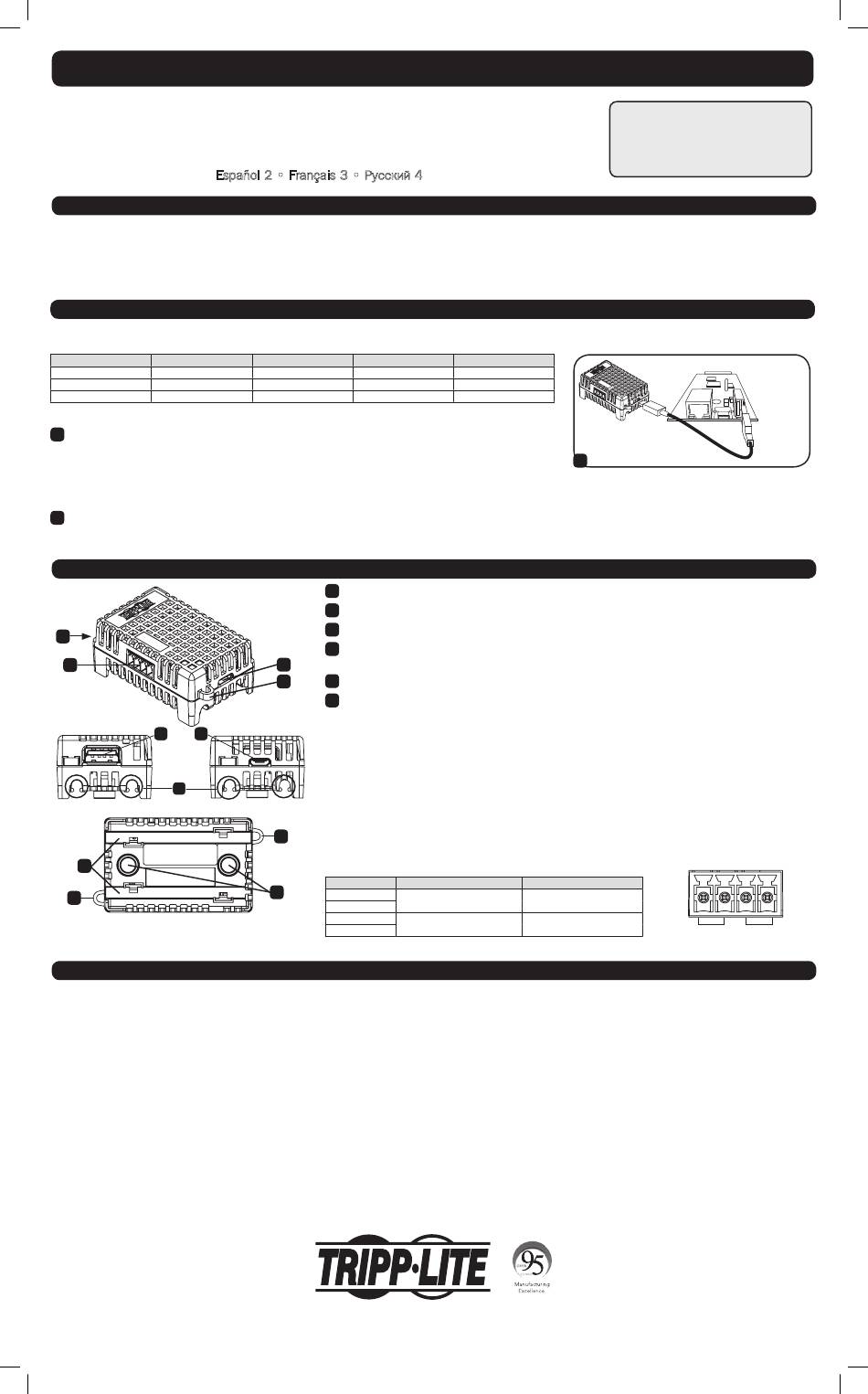

Tripp Lite EnviroSense2 Owner's Manual

EnviroSense2 (E2)
Environmental Sensor Module
Overview
• Three E2 models are available to monitor
temperature, humidity, contact closures or to
actuate contact closures. For use with Tripp Lite LX
Platform devices.
Installation
E2 sensor modules are compatible with LX Platform devices including: WEBCARDLX, WEBCARDLXMINI, PDU3E-Series PDUs, PDU3XE-Series PDUs and Single-phase
PDUs with slotted or integrated "LX" interfaces.
MODEL NAME TEMPERATURE
E2MT X
E2MTDO X
E2MTHDI X
Connecting the E2 Module to an LX Platform Device:
1
Using the included USB cable, plug the USB-A connector into the LX Platform device's USB-A receptacle
(refer to the device documentation to find the appropriate port). Then plug the cable's USB Micro-B connector
into the E2 module's USB Micro-B port.
Note: Up to three E2 modules can be daisy-chained together by connecting the USB-A port of the first module to the USB
Micro-B port of the second, then connecting the USB-A port to the USB Micro-B port of the third module. The module will
perform optimally in a properly ventilated environment.
2
The E2 module will appear as 'SensorXXXX' in the PowerAlert Device Manager, where XXXX are the last four digits of the E2's serial number. To view the E2, go to
Overview and select the module from the Device dropdown menu.
Feature Identification
Top View
3
1
USB-A
Connector View
3 2
5
Bottom View
5
4
