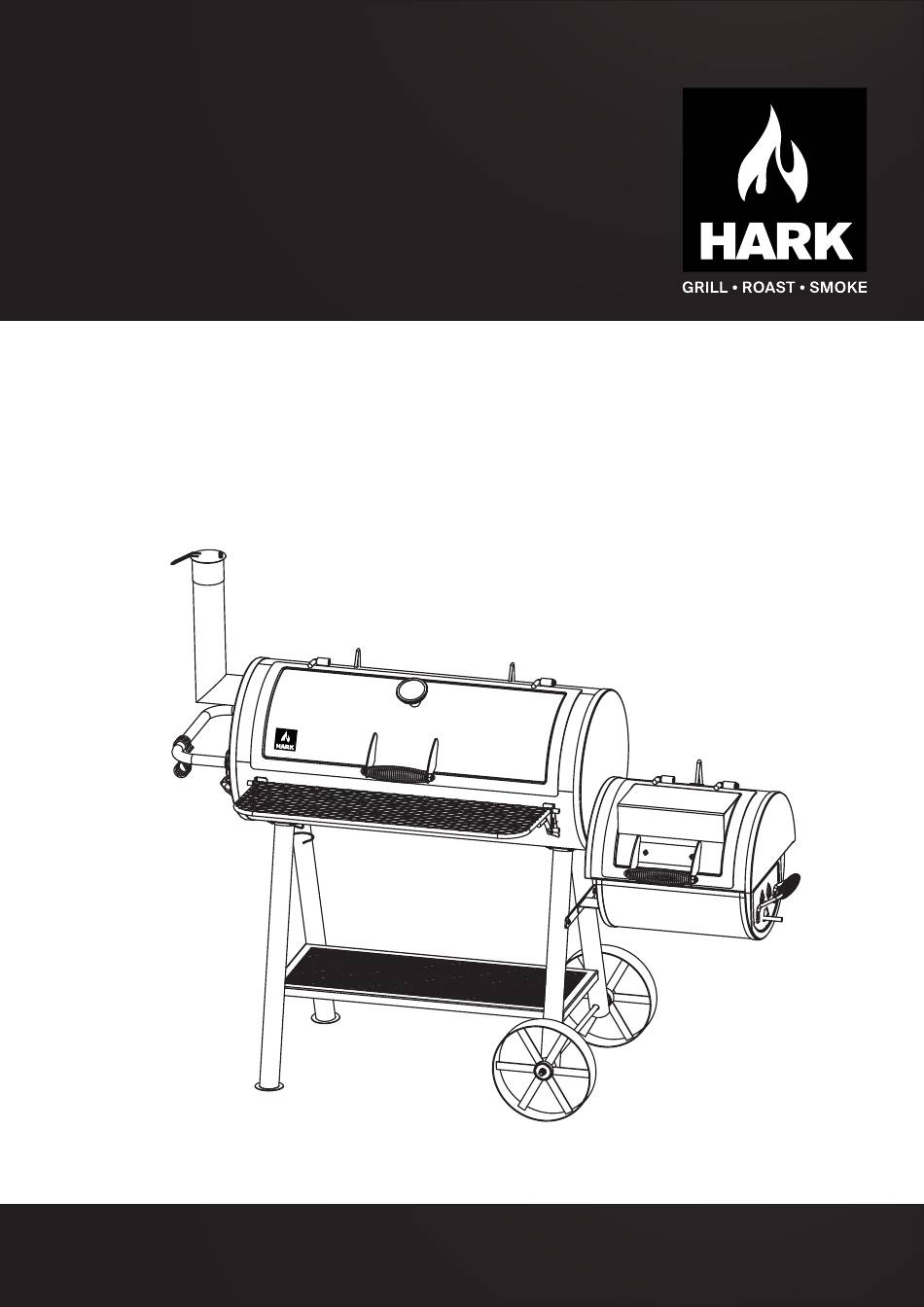

- Page 1 Owner’s Manual ASSEMBLY, CARE & SAFETY INSTRUCTIONS Product Code: HK0527 HARK HICKORY PIT OFFSET SMOKER MODEL: HK0537 FOR OUTDOOR USE ONLY...
- Page 3 CONDITIONS OF WARRANTY • The appliance is delivered to the HARK’s service department or authorised service agent and freight charges both ways are paid by the owner. No liability is accepted for loss or damage during transit. •...
- Page 4 Do not lean over or into the firebox - Do not modify the Hark Hickory Pit offset smoker. or grill when lighting or operating the smoker. This Any changes to the smoker will void the warranty.
- Page 5 A. PARTS LIST Name Name Name Cooking Grills (3) Firebox Top Front Shelf Bracket Left Charcoal Grates (3) Firebox Base Grease Bucket Holder Temperature Gauge Ash Tray Beer Bottle Opener Door Air Damper Handle Side Handle Cooking Chamber Ash Tray Handle S Hooks Firebox Bracket Air Damper...
-
Page 6: Tools Required
B. HARDWARE PACK Hardware # Description Picture M6 x 12 Bolt M5 x 12 Bolt M12 Nut M6 Nut M6 Lock Nut (Silver) M5 Nut Flat Washer TOOLS REQUIRED Phillips Head Screwdriver (Not included) Adjustable Wrench (Not included) - Page 7 C. ASSEMBLY INSTRUCTIONS — Remove the lid from the smoking STEP 1 fig. 1 chamber by removing bolt and washer and sliding the hinge pins Washer Bolt Smoking chamber on the lid out of the hinge holes on the cooking chamber. Set bolts and washers aside for step 18.
- Page 8 STEP 4 Wheel axle M12 Nut M12 2PCS — Attach wheels to short legs with wheel axle and M12 nuts (CC). fig. 4 STEP 5 — Turn the grill body to be horizontal. Attach firebox support to short legs with M6 x 12 bolts (AA). Firebox support M6*12 2PCS fig.
- Page 9 STEP 7 — Attach firebox base to firebox top with M6 x 12 bolts (AA). M6*12 6PCS fig. 7 STEP 8 5.0MM Approx — Insert two M6 X 12 bolts half way into the firebox elliptical cut outs as shown. M6*12 2PCS fig.
- Page 10 STEP 10 — Attach firebox to cooking chamber M6*12 4PCS with M6 x 12 bolts (AA). — Tighten all firebox bolts securely. fig. 10 STEP 11 M6*12 2PCS — Attach firebox to firebox support M6 Nut 2PCS with M6 x 12 bolts (AA) and M6 nuts (DD).
- Page 11 STEP 13 — Attach smoke stack and smoke stack gasket to the smoking Cap nut Spring chamber with M6 x 12 bolts (AA) and Smoke stack damper M6 nuts (DD). — Insure that the gasket is in between the smoke stack and smoking Smoke stack chamber.
- Page 12 STEP 16 — Attach the front shelf left bracket to the smoking chamber with M6 x 12 bolts (AA) and M6 nuts (DD). — Attach front shelf and the right bracket by inserting the hooks of front shelf ends through the slots on front shelf brackets as shown, and then attaching to smoking chamber with M6 x 12 bolts (AA) and M6 nuts...
- Page 13 STEP 19 — Remove pre-attached bolts and nuts from firebox lid handle — Then attach firebox lid handle to the firebox lid with two bolts, nuts and washers. Washer Bolt fig. 19 STEP 20 Washer Bolt — Remove pre-attached hinge bolt and washer from firebox lid hinge pins.
- Page 14 STEP 22 — Attach ash drawer handle to ash drawer with M5 x 12 bolts (BB) and M5 nuts (FF). M5*12 2PCS fig. 22 M5 Nut 2PCS STEP 23 — Insert ash drawer assembly into firebox assembly as shown. fig. 23 STEP 24 —...
- Page 15 STEP 25 fig. 25 — Place three charcoal grates into the bottom of the smoking chamber — Fit baffle plates above the charcoal grates in the cooking chamber. — Place three cooking grates over the baffle plates in the cooking chamber. —...
- Page 16 26 Assembly of your Hark Hickory Pit offset smoker is now complete. fig. 26 shows how the assembled unit should look.
- Page 17 Cooking Chamber (5). The bucket must be placed under the grease hole at all times and will need to be checked regularly to ensure it is not full. Always wait until the smoker has fully cooled before emptying the grease. — Your Hark Hickory Pit offset smoker is now ready for use.
- Page 18 The primary cause of rust damage is the failure to remove ash after each use. Letting ash sit on the lower charcoal grates and in the bottom of the Hark Hickory Pit offset smoker, will eventually cause rust as it will get wet and hold moisture over time.
- Page 19 PLEASE NOTE: One common mistake when using an offset smoker is to build the fire too big. The Hark Hickory Pit offset smoker is very efficient and only requires a small fire to maintain adequate smoking temperatures. The unit only needs a few handfuls of charcoal to achieve a consistent smoking temperature.
- Page 20 — To set your Hark Hickory Pit offset smoker for direct grilling, spread the charcoal across the bottom of the charcoal grate, then place the cooking grills on top so that you are able to place the food directly above the coals.
- Page 21 You can experiment using these baffles to regulate the temperature as desired. If your Hark Hickory Pit offset smoker ever becomes too hot, simply close down the Air Dampers to the fire. Alternatively, you can open the cooking chamber door to allow excess heat to escape.
-
Page 22: Replacement Parts
PLEASE NOTE: One common mistake when using an offset smoker is to build the fire too big. The Hark Hickory Pit offset smoker. is very efficient and only requires a small fire to maintain adequate smoking temperatures. The unit only needs a few handfuls of charcoal to achieve a consistent smoking temperature. - Page 23 Hark Enterprises Pty Ltd 19-25 Cyber Loop, Dandenong South VIC 3175 T: 1300 799 787 E: service @ hark.com.au W: www.hark.com.au...
