WEBS-ZPS Zone Paging System Instructions
I.
Introduction
Model WEBS-ZPS Zone Paging System is a modular telephone zone paging and control system for use
with analog WEBS
to 99 zones and can page individual zones, groups of zones (up to 32), or all zones at once.
II.
Contents
Before beginning installation, make sure you have all the included components. The WEBS-ZPS
includes:
Qty.
1
1
III.
Mounting
The WEBS-ZPS is designed to be wall mounted with the modules side-by-side like books. They should
be oriented so the zone modules are on the right as shown in Figure 1(a) and 1(b). Figure 1(a) illustrates
a WEBS-ZPS unit with a 7-pin dual inline pin (DIP) switch on the first module and Figure 1(b) illustrates a
WEBS-ZPS unit without a 7-pin DIP switch on the first module. There is no functional difference between
the two.
A rack mounting kit is available as Model WEBS-RMKT.
This system is powered by plugging the AC adaptor into the module second from the left.

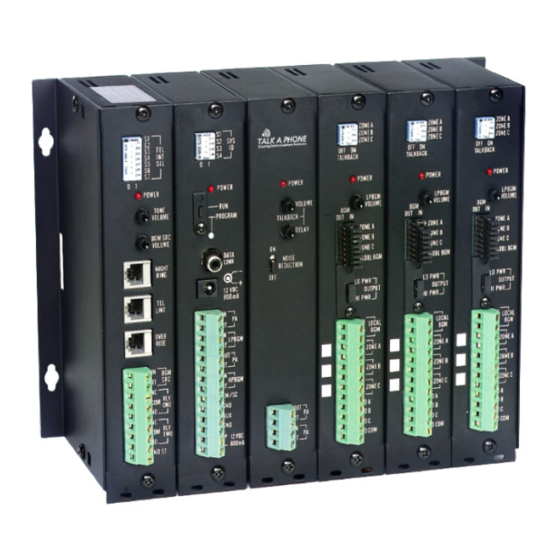

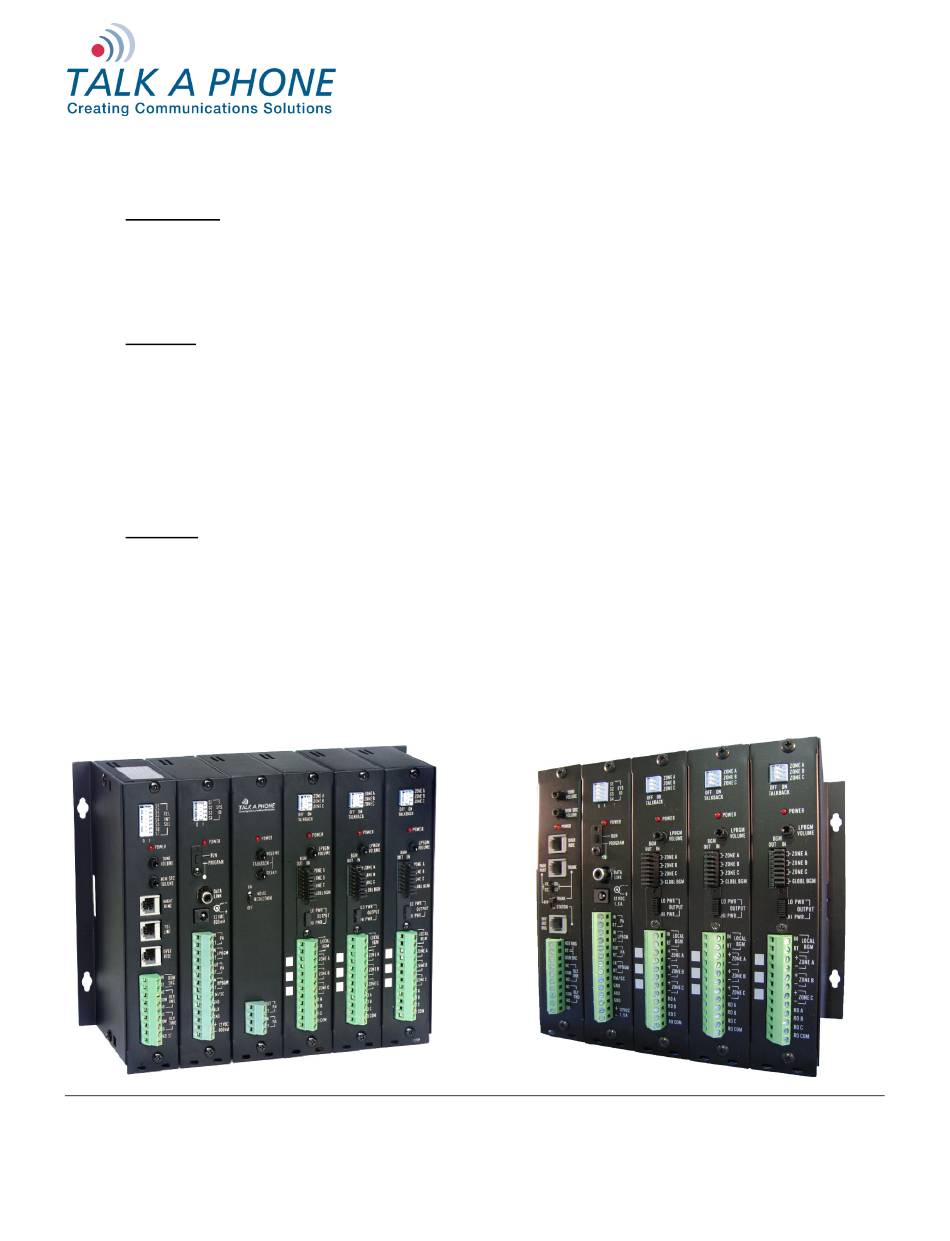

Figure 1(a). WEBS-ZPS (with 7-pin DIP switch).
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
®
stations (such as WEBS-MT/R, WEBS-WM and WEBS-PA-2A). It is expandable up
Part
WEBS-ZPS
AC Adapter
Copyright © 2011 Talk-A-Phone Co. All rights reserved.
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
All prices and specifications are subject to change without notice.
Figure 1(b). WEBS-ZPS (without 7-pin DIP switch).
Rev. 1/6/2010
Advertisement
Summary of Contents for Talkaphone WEBS-ZPS
- Page 1 Figure 1(a) and 1(b). Figure 1(a) illustrates a WEBS-ZPS unit with a 7-pin dual inline pin (DIP) switch on the first module and Figure 1(b) illustrates a WEBS-ZPS unit without a 7-pin DIP switch on the first module.
- Page 2 System Wiring Option A: If the first module of the WEBS-ZPS unit has a 7-pin DIP switch (TEL INT SEL) as shown in Figure 2, please refer to the following set of instructions: Figure 2. WEBS-ZPS with 7-pin DIP switch (TEL INT SEL).
- Page 3 WEBS-ZPS Zone Paging System Instructions Option B: If the first module of the WEBS-ZPS unit does not have a 7-pin DIP switch (TEL INT SEL) as shown in Figure 3, please refer to the following set of instructions: Figure 3. WEBS-ZPS without 7-pin DIP switch (TEL INT SEL).
- Page 4 Locate the terminals labeled ZONE A and connect them to the WEBS-MT/R tower. Each WEBS-MT/R tower is allocated to a single zone on the WEBS-ZPS. Zone A will be Zone 1 and can be paged by following the directions in Section VI of this manual. Zone B will be Zone 2, Zone C will be Zone 3, and Zone A of the next module will be Zone 4, etc.
- Page 5 WEBS-ZPS Zone Paging System Instructions Figure 7(a). Connecting the WEBS-ZPS to the WEBS-MT/R Amplifier (black chassis) Figure 7(b). Connecting the WEBS-ZPS to the WEBS-MT/R Amplifier (silver chassis) via the DIN Rail Terminal Block Copyright © 2011 Talk-A-Phone Co. All rights reserved.
- Page 6 1. To switch to programming mode, remove the switch lock and place the PROGRAM/RUN switch to PROGRAM position. In the case of a WEBS-ZPS unit without a 7-pin DIP switch (TEL INT SEL) on the first module, all programming is accomplished through the TRUNK jack on the first module, using the appropriate installed interface.
- Page 7 Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804 Page 7 of 7 Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com All prices and specifications are subject to change without notice. Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
