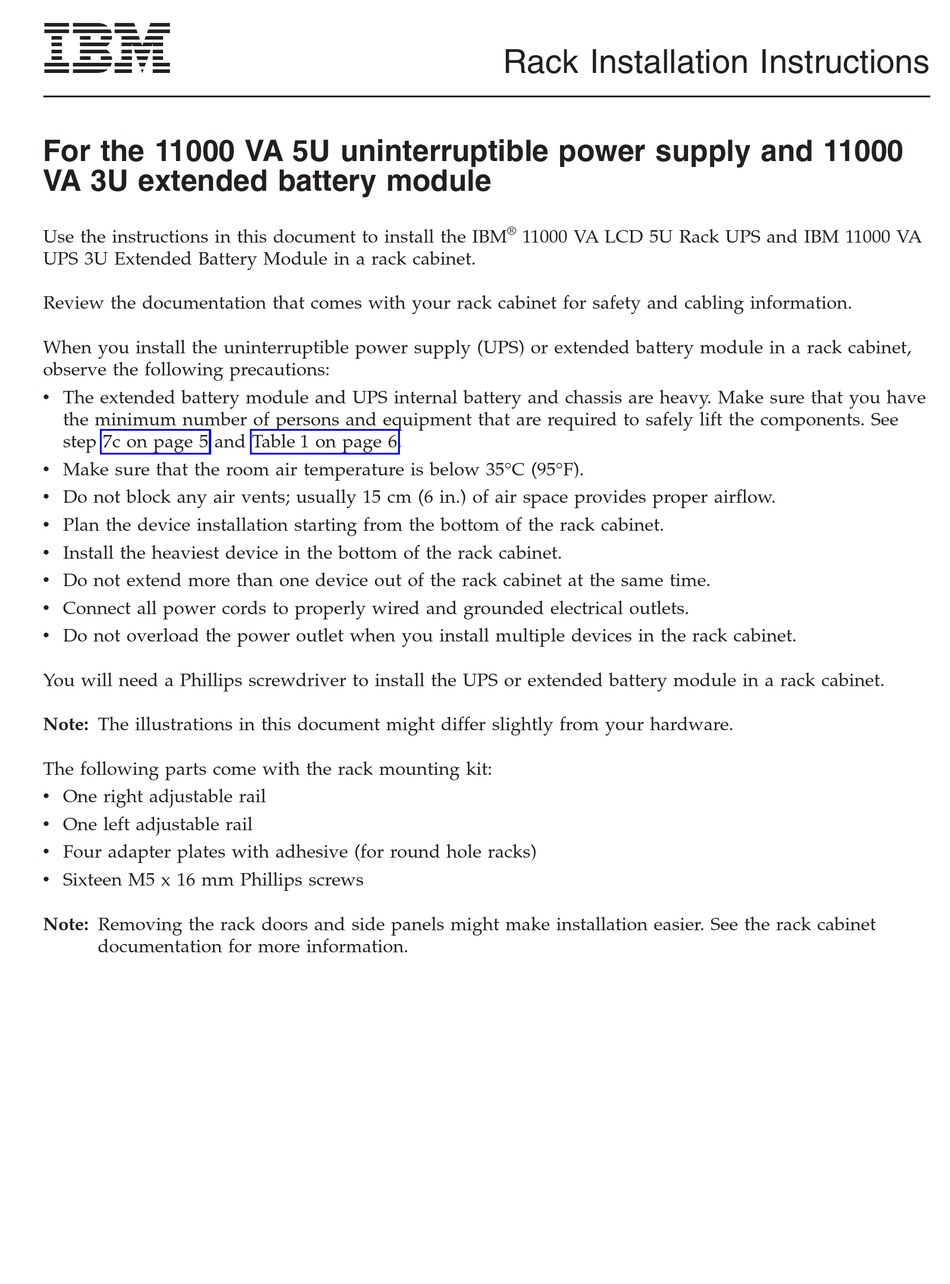

IBM 11000 VA 5U Rack Installation Instructions

For the 11000 VA 5U uninterruptible power supply and 11000
VA 3U extended battery module
Use the instructions in this document to install the IBM
UPS 3U Extended Battery Module in a rack cabinet.
Review the documentation that comes with your rack cabinet for safety and cabling information.
When you install the uninterruptible power supply (UPS) or extended battery module in a rack cabinet,
observe the following precautions:
v The extended battery module and UPS internal battery and chassis are heavy. Make sure that you have
the minimum number of persons and equipment that are required to safely lift the components. See
step 7c on page 5 and Table 1 on page 6.
v Make sure that the room air temperature is below 35°C (95°F).
v Do not block any air vents; usually 15 cm (6 in.) of air space provides proper airflow.
v Plan the device installation starting from the bottom of the rack cabinet.
v Install the heaviest device in the bottom of the rack cabinet.
v Do not extend more than one device out of the rack cabinet at the same time.
v Connect all power cords to properly wired and grounded electrical outlets.
v Do not overload the power outlet when you install multiple devices in the rack cabinet.
You will need a Phillips screwdriver to install the UPS or extended battery module in a rack cabinet.
Note: The illustrations in this document might differ slightly from your hardware.
The following parts come with the rack mounting kit:
v One right adjustable rail
v One left adjustable rail
v Four adapter plates with adhesive (for round hole racks)
v Sixteen M5 x 16 mm Phillips screws
Note: Removing the rack doors and side panels might make installation easier. See the rack cabinet
documentation for more information.
Rack Installation Instructions
®
11000 VA LCD 5U Rack UPS and IBM 11000 VA
