USER MANUAL

Advertisement

loading

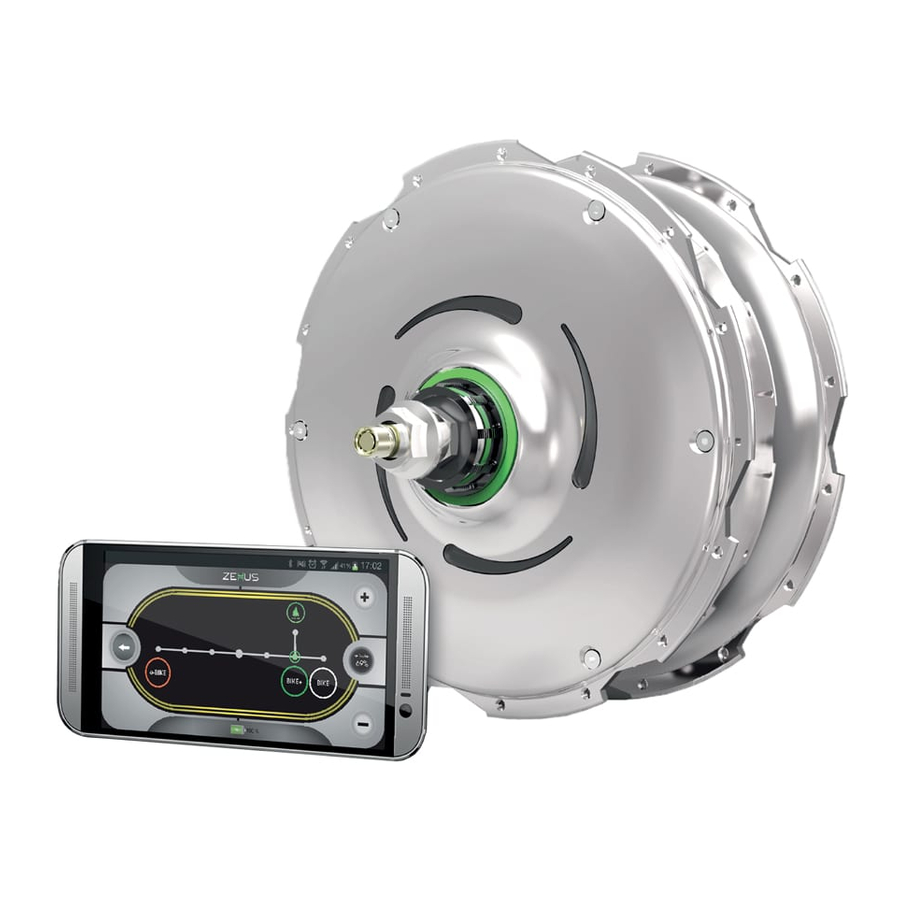

Summary of Contents for ZEHUS BIKE all in one

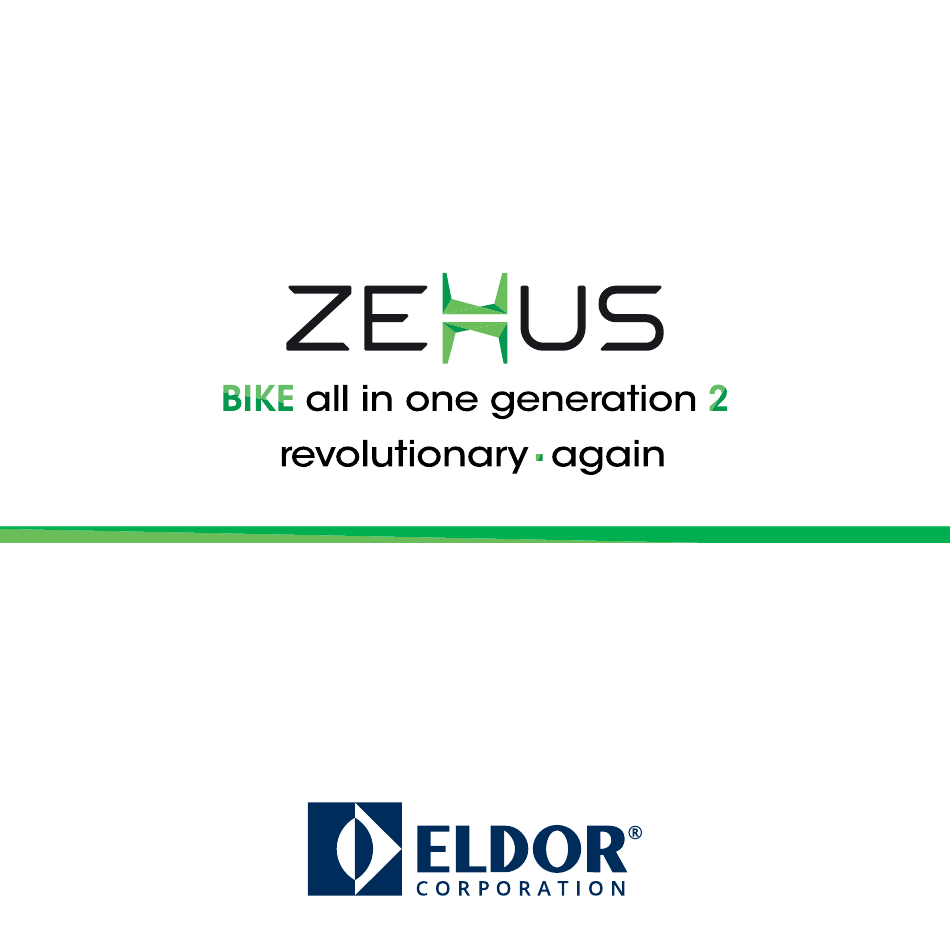

  • Page 1 USER MANUAL...
  • Page 2 This page was intentionally left blank...

  • Page 3: Safety Notes

    Warranty is void if the bike is being used without protecting the connector. Please observe all national regulations on registering and using e-bikes. The term “battery pack” refers to an internal part of the BIKE all in one system. DO NOT try to access the battery pack.
  • Page 4 Keep the battery charger away from rain or moisture. Keep the battery charger clean. Danger of electric shock Before any charging operation, check the battery charger status (cable, plug, connectors). If any damage is detected, DO NOT use the charger and contact a qualified retailer.
  • Page 5 BIKE all in one turns on automatically when the rear wheel reaches a speed higher than 5 km/h. Thus, to turn on BIKE all in one just start pedaling your bike as usual or spin the wheel while you lift the bike, as explained in Figure 1 .
  • Page 6 2.1 BIKE all in one activation procedure (see Figure 2) When BIKE all in one is turned on, the motor assistance is not yet activated for safety reasons. In order to activate the motor assistance, you must perform all the following steps: 1.
  • Page 7 The generated power depends on several factors including the bike speed and the pedalling speed, depending on the selected power mode. The default power mode of BIKE all in one is the “turbo” mode. For instruction on how to change the power mode please refer to 4.2.
  • Page 8 2.3 Charging BIKE all in one (see Figure 4) To charge BIKE all in one, simply remove the protection cap from the charging connector (I) and plug in the Zehus charger (2). Then connect the Zehus charger to a power outlet (110~240 V).
  • Page 9 The components can be damaged if ex- posed to extreme temperatures. CAUTION: ALWAYS seal the connector on BIKE all in one with the proper protection cap (5) before riding. Using BIKE all in one without the protection cap will void the warranty.
  • Page 10 3. Using a Smartphone with your BIKE all in one In order to be able to load the correct parameters on your BIKE all in one, you would have to connect a smartphone through bitride connect application. NOTE: after registering your BIKE all in on, you will be able to use your bike also without a connected device.
  • Page 11 3.4 How much is bitride connect app? Bitride connect app is available for free. 3.5 How do you install bitride connect app? Depending on your mobile device, go either to the Apple Store or to Google Play and search for bitride connect app. The detailed procedure is listed below. On iPhone: Open App Store Tap the search icon...
  • Page 12 Once your bitride account has been created, you will now be able to register one or more Zehus devices to your personal account. internet smartphone...
  • Page 13 NOTE: every Zehus device can be registered ONLY to one account. Please be sure you perform un-registering of the vehicle before landing or selling it. Once performed the login, hit the button “add new device” to register your BIKE all in one. Before starting the procedure we recommend you prepare your charger. Please assure you have a stable internet connection while registering.
  • Page 14 It is possible to store your purchase recepit into bitride connect app. This is very useful in case you need to check if your BIKE all in one is still covered by our limited 2-years war- ranty. You can insert your purchase recepit during your registration procedure, or you can...
  • Page 15 Bitride connect has 3 main sections that allows you to get the best out of your BIKE all in one: Dashboard Other Support 4.1 Using the “Dashboard” section Whenever bitride is connected to a BIKE all in one, an advanced dashboard is shown: Activation banner: tap here to activate Motor Power infografic Bike Speedometer or Lock button...
  • Page 16 Motor is active KERS is active 4.2 Changing BIKE all in one power modes In order to change the power mode, you simply slide the power mode carousel. If the selected power mode is customizable you will see the customize button on the bottom...
  • Page 17 Lock will stay active until an authorized user connects to BIKE all in one and unlocks it. When BIKE all in one turns off, wheel will be released from the braking force. As soon as it will turn on again (speed higher than 5 km/h), the wheel will be safely locked again.
  • Page 18 4.4 Using the “Other” section In this section you can access: Your profile information Your vehicles information You can start a new registration You can log out from bitride connect 4.5 Your profile information In this page you can see your general information. All profile data are stored according to GDPR, thus this data will not be shared with third parties.
  • Page 19 In “My Vehicles” page, it is possible to manage your Zehus powered bikes and scooters, change name, update firmware, force connection and disconnection, manage your settings and presets, change your BIKE all in one LED color, manage your warranty or Unregister your BIKE all in one.
  • Page 20 4.7 Settings and presets In this section you can find a quick explanation of BIKE all in one power modes. Please refer to 5 for further information 4.8 Change LED color In this section you can change your BIKE all in one LED color, by choosing among 7...

  • Page 21: Led Indicators

    4.9 Remote controller In this section, you can connect your BIKE all in one to a Zehus Remote controller (option- al). Zehus remote controller is a removable handlebar device that allows you to: Turn ON/OFF the bike without having to take your hands off the handlebar...

  • Page 22: Usb Charging

    Charging your remote controller Zehus Remote Controller has a mini USB charging port. It takes 2 hours to fully charge. Depending on the type of use, battery can last up to 2 weeks: USB CHARGING Mounting your remote controller to the handlebar Thanks to Zehus remote controller support, once mounted on the handlebar, your re- mote will be in the perfect position for your thumb to press the buttons.
  • Page 23 Registering your remote controller to a BIKE all in one NOTE: please charge your Zehus remote controller before use In order to connect Zehus remote controller to your BIKE all in one, enter the registration procedure from “My Vehicles” section then: Follow the on screen tutorial tap on “Start registration”...
  • Page 24 Please update the firmware if you do not hear the buzzer working properly NOTE: at the end of this procedure, BIKE all in one will be turned off. Please turn on your BIKE all in one to use it.
  • Page 25 “My Vehicles” menu. NOTE: it is not necessary to be connected to BIKE all in one in order to unregister it. A stable internet connection is needed for this procedure.
  • Page 26 4.11 Using the “Support” section This section allows you to: Read the Frequently Asked Question of Zehus products Check the manuals for Zehus products Perform our “Diagnostic Wizard” Search for Zehus Service Center Send us a Feedback Check the app version...
  • Page 27 4.12 Zehus Diagnostic Wizard Zehus Diagnostic Wizard can help if you think that your drivetrain may have some prob- lems. The clear guided procedure asks you about possible issues in your Zehus system, then it collects information from your BIKE all in one.
  • Page 28 5. BIKE all in one power modes Your BIKE all in one let you choose among different power modes. Each power mode has a different assistance factor and a different pedalling range. The following power modes are available: Turbo, Turbo Custom, Eco and OFF. Turbo Cus- tom is customizable to meet your needs.
  • Page 29 Eco: this power mode is a regular pedelec (or Electric Pedal Assisted biCylce). The motor assists you up to 25 km/h and with a maximum power of 250 W, depending on the speed of the bike and on the effort on the pedals. Motor assist is softer than Turbo power mode, so with this power mode you can cover up to 55 km*.
  • Page 30 5.1 Customize Power Modes It is possible to customize Turbo power mode for a softer ride, by choosing 3 parameters: Boost: with this parameter you change the maximum level of motor torque at low speed. The higher the parameter is set, the higher the torque. In turbo mode, this parameter is set to 100% Assistance: with this parameter you change the speed range of your maximum torque level.
  • Page 31 5.2 Influences on BIKE all in one range The range of BIKE all in one depends on many factors as: Chosen operational mode Tire pressure Road conditions and route profile Head winds and ambient temperature Weight of the driver and luggage...
  • Page 32 In order to recharge BIKE all in one connect the charger plug to the charging connector located on the right side of the BIKE all in one axle. Then connect the charger plug to an outlet (see 2.3, Figure 4).
  • Page 33 6.2 Battery pack storage conditions BIKE all in one has to be stored at the right temperature. The battery pack life can be maximized by following the rules for a correct storage and handling. In case of malfunctioning your battery pack will have to be replaced. Please refer to a Zehus retailer to have your battery pack replaced.

  • Page 34: Technical Data

    7. Technical data Drive unit Rated power Maximum torque 30 (40 with RC boost) Battery pack Rated Voltage 28.8 Rated Capacity 6000 Energy 172.8 Weight (~) Operating Temperature °C -20°C to +70°C Storage Temperature °C -40°C to +60°C Charging Temperature °C -20°C to +60°C Degree of protection...

  • Page 35: Maintenance And Service

    5) before every maintenance procedure. Otherwise, severe injury may occur. 8.1 Cleaning BIKE all in one Please, keep BIKE all in one hub clean. Clean it with a soft, damp cloth. BIKE all in one may not be immersed in water or cleaned with high pressure cleaner.
  • Page 36 Inform your parcel service that the pack- age contains dangerous goods. Please also observe the possibility of more detailed national regulations. In case of questions concerning transport of BIKE all in one, please refer to an authorized Zehus dealer.

  • Page 37: Your Notes

    Your Notes:...
  • Page 38 Rev 2021/05-rev2.00 The specifications on this document are subject to change at ZEHUS de- cision. ZEHUS assumes no responsibility for any claims or damages arising out of the use of this document, or from the use of modules based on this document, including but not limited to claims or damages based on infringement of patents, copyrights or other intellectual property rights.
