Summary of Contents for Dell UltraSharp WB7022

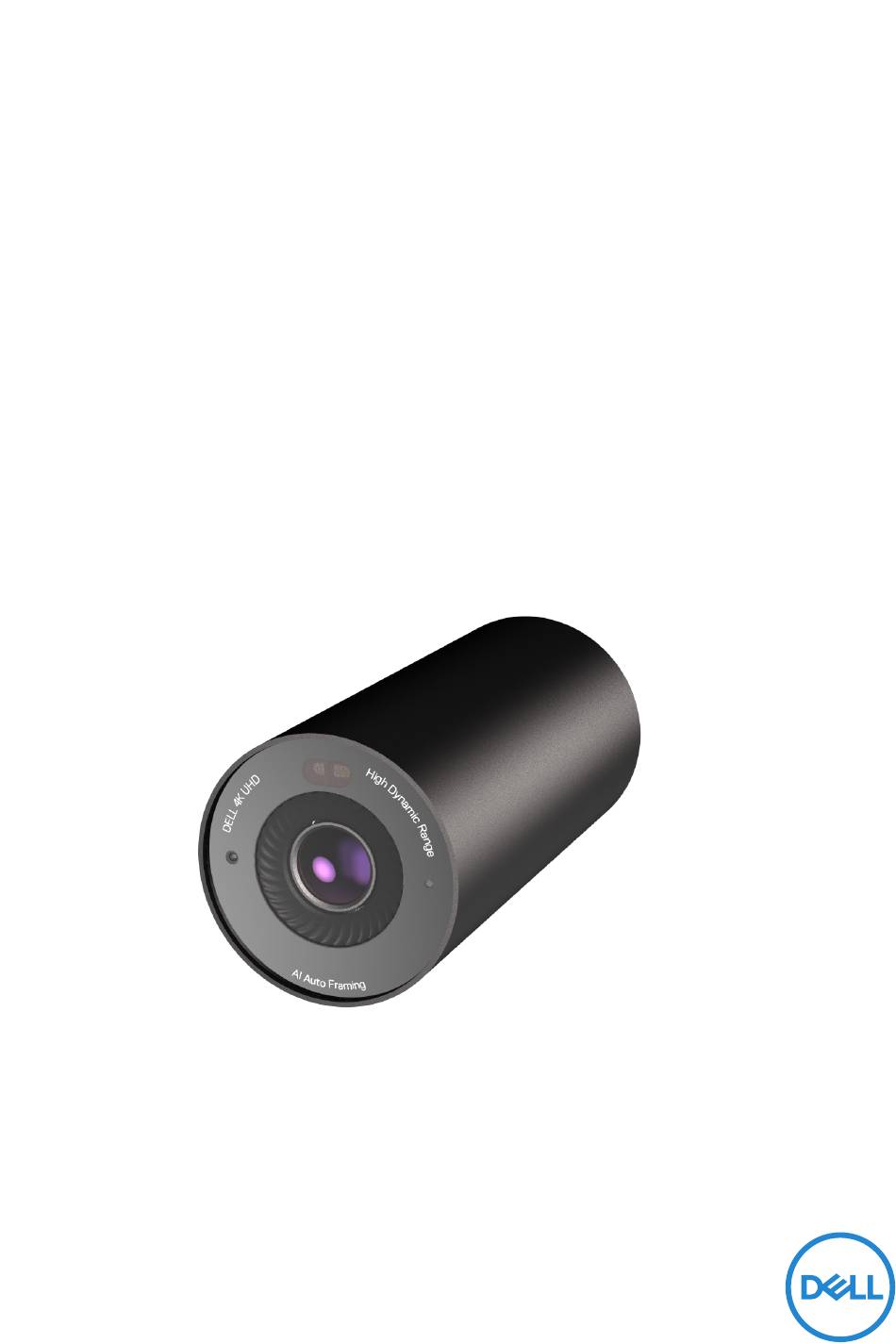

- Page 1 Dell UltraSharp Webcam WB7022 User Guide Regulatory Model: WB7022c...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners. 2021 – 06...
-
Page 3: Table Of Contents
Installing Dell Peripheral Manager ........13... -
Page 4: Overview
Overview The Dell WB7022 webcam is the latest in the Dell peripheral line-up which offers the following: • 4K video at 30 fps and Full HD video at 60 fps • AI Auto-framing • 5x digital zoom • Adjustable field-of-view with autofocus •... -
Page 5: What's In The Box
What’s in the box Dell WB7022 webcam Webcam mount USB-C to USB-A cable (USB 3.1 Gen 1, 2 m) Tripod adapter NOTE: A tripod stand is not included with the product. User Documentation (Quick Start Guide, SERI, Warranty Information) External privacy cover... -
Page 6: Views
Views 1. IR LED/Sensor 7. Webcam body 2. Proximity sensor 8. Webcam mount 3. Multi-element lens and Large 4K 9. Tripod adapter* Sony© STARVIS™ sensor 10. Tripod-adapter thread 4. White LED light indicator 5. Slot for webcam mount or tripod adapter 6. -
Page 7: Setting Up Your Webcam On A Monitor
Setting up your webcam on a monitor NOTE: It is recommended to have an active internet connection on your computer for the best setup experience. 1. Connect the USB-C end of the cable to the USB-C port of the webcam. NOTE: Insert the cable connector completely into the USB-C port. - Page 8 6. Connect the USB-A end of the cable to a USB-A 3.0 port on your notebook, desktop or monitor. 7. Follow the instructions on the screen to customize the camera settings using Dell Peripheral Manager application. For more information see Dell Peripheral Manager.
-
Page 9: Setting Up Your Webcam On A Tripod
Setting up your webcam on a tripod 1. Align the thread on the tripod adapter with the mounting screw on the tripod. Rotate the tripod adapter until it is firmly fixed on the tripod. 2. Connect the USB-C end of the cable to the USB-C port on the webcam. NOTE: Insert the cable connector completely into the USB-C port. - Page 10 5. Connect the USB-A end of the cable to a USB-A 3.0 port on your notebook, desktop or monitor. 6. Follow the instructions on the screen to customize the camera settings using Dell Peripheral Manager application. For more information see Dell Peripheral Manager.
-
Page 11: Features
Features Adjustable Field of View: The Dell WB7022 webcam features a 90 degree field of view (FOV) and can be changed to 65 or 78 based on the user's preference. Adjusting the FOV allows you to personalize the video output to your external environment. -
Page 12: Specifications
Specifications Webcam camera stream data ports One USB 3.1 Gen 1 (USB-C) port Stream video out ports and resolutions H.264, MJPEG encoding engine Video format supported 4K UHD at 30 fps Full HD at 30 or 60 fps HD at 30 or 60 fps Field of View 65 / 78 / 90 degree Focus... -
Page 13: Dell Peripheral Manager
Installing Dell Peripheral Manager When you connect the device to your computer for the first time, Dell Peripheral Manager is downloaded and installed automatically through the Windows Update process. NOTE : If Dell Peripheral Manager does not appear within a few minutes, you can manually install the software by checking for updates. -
Page 14: Frequently Asked Questions
Proximity sensors are used to detect the presence of any object if they come into the field of view of the sensor. The Dell WB7022 webcam has a proximity sensor that triggers Windows Hello and authenticates the user using facial recognition. The sensor also detects your presence and wakes up your computer from sleep. -
Page 15: Troubleshooting
Troubleshooting Problem Possible solutions Recommended steps for For any issues with the Dell WB7022 webcam, it is webcam recommended to start by following these steps: issues 1. Update the BIOS on your computer to the latestavailable version. 2. Update the operating system to the latest available version. - Page 16 Webcam's proximity detec- This feature is not supported on non-Dell computers. tion feature does not work If you are using a Dell computer, update the BIOS and drivers to the latest available version from the Dell support site. Unable to install Dell Periph-...
-
Page 17: Information
For U.S. customers: This purchase and your use of this product are subject to Dell’s end user agreement, which you can find at www.dell.com/terms This document contains a binding arbitration clause. For European, Middle Eastern and African customers:... -
Page 18: Getting Help
Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Steps 1.
