HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/

CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/

PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E

SERVICE MANUAL

Ver. 1.0 2013.01

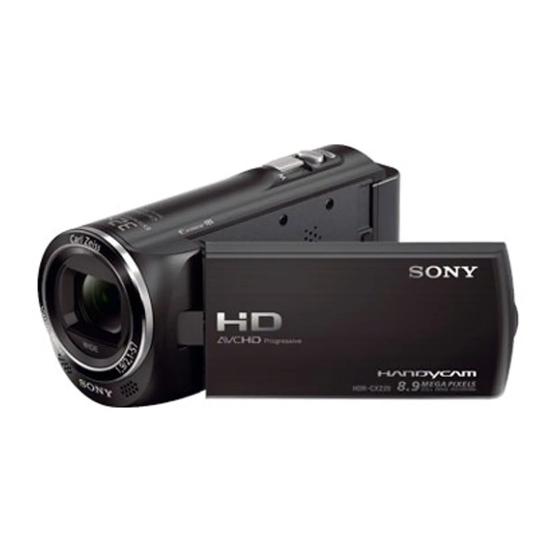

Photo: HDR-PJ230/BLACK

Check the SERVICE NOTE (LEVEL 2) before the service.

MODEL GROUP

Projector Model:

PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E

Non Projector Model:

CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E

IM Model (Internal Memory Model):

CX230/CX230E/CX290/CX290E/CX380/CX380E/CX390/CX390E/PJ230/PJ230E/PJ380/PJ380E/PJ390/PJ390E

Non IM Model (Non Internal Memory Model): CX220/CX220E/CX280/CX280E/CX320/CX320E/PJ220/PJ220E/PJ320E

Prefix of Model Name

CX2[][] Model: CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E

CX3[][] Model: CX320/CX320E/CX380/CX380E/CX390/CX390E

PJ2[][] Model:

PJ220/PJ220E/PJ230/PJ230E

PJ3[][] Model:

PJ320E/PJ380/PJ380E/PJ390/PJ390E

Other example:

CX22[]/CX23[] Model: CX220/CX220E/CX230/CX230E

The components identified by mark

Les composants identifiés par une

0 or dotted line with mark 0 are

marque 0 sont critiques pour la

critical for safety.

sécurité.

Replace only with part number

Ne les remplacer que par une

specified.

pièce portant le numéro spécifié.

HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3

9-834-721-11

LEVEL

US Model

Canadian Model

AEP Model

UK Model

North European Model

E Model

Australian Model

Hong Kong Model

Chinese Model

Korea Model

Brazilian Model

Tourist Model

Japanese Model

Digital HD Video Camera Recorder

Sony Corporation

Revision History

Ver.

Date

History

1.0

2013.01

Official Release

Distinguishing MM-102 Boards (CX380/CX380E/PJ380/PJ380E)

Two types of MM-102 board are used in this unit.

When repairing an MM-102 board, identify its type by the IC model names printed on the surface of IC8101 on the MM-102 board.

IC8101

Type A

KLMAG2GE4A-A001T06

Type B

KLMAG4FEJA-A001T21

Note:

IC8101 cannot be replaced with any other type of IC. Be sure to replace them with the same type of IC.

983472111.pdf

S.M. Rev.

Contents

issued

—

2013A08-1

Published by Sony Techno Create Corporation

Table of Contents

Summary of Contents for Sony HDR-CX220

Page 1 0 sont critiques pour la critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified. pièce portant le numéro spécifié. 2013A08-1 HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 © 2013.01 Sony Corporation 9-834-721-11 Published by Sony Techno Create Corporation...
Page 2: Safety Check-Out
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPO- CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REM- サービス，点検時には次のことにご注意ください。 NENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS PLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES...
Page 3: Electrical Parts List
C8701 1-116-737-11 CERAMIC CHIP CN8002 1-822-837-21 CARD CONNECTOR * CN8003 1-816-644-51 FFC/FPC CONNECTOR (LIF) 12P 标识有的元件包含机密信息。 < CONNECTOR > 更换或维修元件时，请严格遵守指⽰。 < DIODE > 更换后的电路板和IC，应予以报废。 * CN8101 1-816-647-61 FFC/FPC CONNECTOR (LIF) 18P D8001 6-501-216-01 DIODE CL-271HR-C-TS HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 4 IC TC7MP3125FTG (EB) IC6103 (Not supplied) IC BU79R272-E2 * CN6201 1-822-378-11 CONNECTOR, FPC (ZIF) 33P * L6301 1-481-102-21 INDUCTOR 10uH * CN8502 1-816-643-51 FFC/CONNECTOR, FPC (LIF) 10P * CN6202 1-821-503-11 CONNECTOR, FPC (ZIF) 39P CN8503 1-822-395-51 CONNECTOR, BOARD TO BOARD 60P HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 5 CERAMIC CHIP 4.7uF (CX28[]/CX29[]/CX3[][]/PJ3[][] Model) C2424 1-112-717-91 CERAMIC CHIP 6.3V C4305 1-112-300-91 CERAMIC CHIP 4.7uF C1439 1-114-582-91 CERAMIC CHIP 0.1uF C2425 1-165-989-11 CERAMIC CHIP 10uF 6.3V (CX3[][]/PJ3[][] Model) (CX3[][]/PJ3[][] Model) C4306 1-112-300-91 CERAMIC CHIP 4.7uF C4308 1-112-300-91 CERAMIC CHIP 4.7uF HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 6 CONNECTOR, HDMI (PJ3[][] Model) IC5502 6-716-952-01 IC R2A30427BM (CX3[][]/PJ3[][] Model) C5513 1-119-923-11 CERAMIC CHIP 0.047uF * CN9101 1-843-120-21 HEADER ASSEMBRY IC5503 6-715-211-01 IC MM3404A28URE R1025 1-218-977-11 METAL CHIP 100K 1/16W (CX28[]/CX29[]/CX3[][]/PJ3[][] Model) IC7701 (Not supplied) IC NJM3232MG2 (TE2) (PJ2[][] Model) (CX28[]/CX29[]/CX3[][]/PJ3[][] Model) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 7 SENSOR, ANGULAR VELOCITY R2415 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W R5511 1-218-971-11 METAL CHIP 1/16W (CX28[]/CX29[]/CX3[][]/PJ3[][] Model) R2416 1-218-971-11 METAL CHIP 1/16W (CX28[]/CX29[]/CX3[][]/PJ3[][] Model) R2427 1-208-659-11 METAL CHIP 0.5% 1/16W (CX3[][]/PJ3[][] Model) R7702 1-218-969-11 METAL CHIP 1/16W (CX28[]/CX29[]/CX3[][]/PJ3[][] Model) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 2-5E...
Page 8: Overall Block Diagram
AV_JACK_IN AV_JACK_IN MULTI CX28[]/CX29[]/CX3[][]/PJ3[][] Model XRESET_REQ XRESET_REQ SE7701 XPOWER_TACT_SW XPOWER_TACT_SW IC7701 ROLL ROLL_AD OVERALL (2/3) SENSOR ROLL (PAGE 4-2) VST_C_CHARGE USB_D+/-_MULTI_CN SENSOR AMP LANC_SIG OVERALL (2/3) (15/15) IC1001 (15/15) (PAGE 4-2) DEBUG_UART0_TXD UART_TX/LANC_SIG USB_ID2 LANC/UART SEL_UART_LANC SELECT UART_TX/LANC_SIG (1/15) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 9 FP-2060 HDMI_TX0SOP-TX2SOP, HDMI_TX0SON-TX2SON FLEXIBLE BOARD CN1009 CN8101 HDMI_TXCP/TXCN HDMI_TXCP/TXCN HDMI IC8101 TE1_DAT_0 - 7 MMC_DAT_0 - 7 Q1302 HDMI_SDA, SCL SDA, SCL INTERNAL LEVEL SHIFT MEMORY Q1301 TE1_CLK/CMD MMC_CLK/CMD CEC_INOUT (1/2) LEVEL SHIFT Q1403 HDMI_JACK_IN LEVEL SHIFT VIDEO/AUDIO SIGNAL HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 10 LCD_HD PJ_TEMP_AD PAD_PROJ_ON S6002 DPPSPI_DIN/DOUT/CLK LCD_CK LCD_CK MULTI LCD_DATEN SELECTOR PJ_TEMP_AD I2C_SDA/SCK I2C_SDA/SCK 29,32 PAD_PROJ_ON PAD_PROJ_ON MEM0_A0 - A12 PJ_TEMP_AD PJ_TEMP_AD MEM0_DQ0 - DQ15 IC8606 IC8701 DPPSPI_DIN/DOUT/CLK FLASH MEM0_CLK_N/P SDRAM SPI_CSZ0 MEM0_BA0/BA1 MEMORY (1/4) MEM0_LDM/UDM (3/4) MEM0_LDQS/UDQS MEM0_CASZ/RASZ/CSZ MEM0_CKE/WEZ HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 11: Power Block Diagram
USB_VBUS AJ20 CAMERA DSP, BATT_UNREG_SENSE VBUS_EN BATT_UNREG AE21 VBUS_EN AV SIGNAL PROCESS, LANC_DC VBUS_XOVR_CUR IC9103 LENS CONTROL, LANC_DC GPIO_S__2 XVBUS_DET_STD_A MODE CONTROL, USB SWITCH GPIO_SB__5 HDMI PROCESS XVBUS_DET (13/15) GPIO_S__1 (2/15 - 4/15) Q9103 SEL_UART_LANC AS_PWM0A USB_VCC_MULTI XVBUS_DET SEL_UART_LANC HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 12 A_3.3V CMOS_A_3.3V A_2.8V CX3[][]/PJ3[][] Model IC5502 LENS BARRIER IM Model DRIVE (12/15) FP-2060 MM-102 BOARD IC8701 FLEXIBLE 2.9 REG BOARD CN1009 CN8101 (1/2) IC8101 FB1005 MEDIA_3.3V MEDIA_3.3V TE1_VCC INTERNAL VOUT MEMORY MMC_PWR_ON1 MMC_PWR_ON1 MMC_PWR_ON1 (1/2) GPIO_S__4 MMC_VCC MMC_VCC TE1_VCC HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 13 1.8V P1P0V VOUT PJ_RSTZ PJ_RSTZ PJ_RSTZ IC8801 LED DRIVE (4/4) D8801 DMD_VRST VINA L8801 VINR VINL REF_VRST VINL DMD_VBIAS VBIAS VSPI DMD_VOFS VOFS RSTZ VFLASH IC8605 P1P0V IC8701 P1P8V SDRAM CONTROL IC8606 (1/4) (3/4) VFLASH FLASH MEMORY (3/4) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 4-6E...
Page 14: Frame Schematic Diagram
FLEXIBLE CM-1004 BOARD CM-1004 BOARD CX3[][]/PJ3[][] Model BOARD MIC901 (SIDE A) (SIDE B) BATTERY MICROPHONE DC IN TERMINAL UNIT J901 IM Model LENS BLOCK DC JACK MM-102 BOARD CP001 (Not supplied) IC8101 (Not supplied) CN6702 FP-2059 FLEXIBLE BOARD CN8101 HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 15 (LCD MODULE) PJ3[][] Model TOUCH PANEL VC-1010 BOARD WIDE COLOR LCD (SIDE A) 2.7 INCH: PJ2[][] Model (Page 5-1) 3.0 INCH: PJ3[][] Model LCD BACKLIGHT PD-1013 BOARD CN6305 LCD901 (LCD MODULE) TOUCH PANEL 3.0 INCH WIDE COLOR LCD BACKLIGHT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 5-2E...
Page 16: Schematic Diagrams And Printed Wiring Boards
0 are critical for safety. 0印の部品，または0印付の点線で囲まれた部品は， Replace only with part number specified. 安全性を維持するために，重要な部品です。标识有的元件包含机密信息。更换或维修元件时，请严格遵守指⽰。従って交換時は，必ず指定の部品を使用してください。 Les composants identifiés par une 更换后的电路板和IC，应予以报废。 marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 17: Schematic Diagrams
C6720 0.1u REG_GND XCLR XCLR REG_GND REG_GND R6705 C6717 REG_GND 0.1u CL001 INCK INCK A_2.8V R6767 REG_GND REG_GND REG_GND CN6702 R6729 R6741 A_2.8V CMOS_A_3.3V C6728 IC6703 MM3404A28URE 2.8V REG C6729 REG_GND CM-1004 BOARD CMOS IMAGER XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 18 SENS_VD SENS_HD SENSSI SENSSO REG_GND REG_GND SENSSCK SENSXCS REG_GND REG_GND XFLASH_RST XCLR REG_GND REG_GND REG_GND REG_GND CLK_CMOS_IN INCK REG_GND REG_GND REG_GND REG_GND FP-2053 FLEXIBLE BOARD CX3[][]/PJ3[][] Model FP-2059 FLEXIBLE BOARD MIC JACK VC-CM CONNECTION (PRINTED WIRING BOARD is omitted.) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 19 100K: CX28[]/CX29[]/CX3[][] Model R1060 CX3[][]/PJ3[][] Model XPOWER_TACT_SW 47K: PJ2[][] Model XPWR_ON 16 17 18 19 REG_GND CN1010 EXCEPT PJ3[][] Model LENS REG_GND C1003 C1004 BARRIER SHUTTER_XA SHUTTER_XA UNIT SHUTTER_A SHUTTER_A REG_GND REG_GND VC-1010 BOARD (1/15) CONNECTORS XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 20 0.1u USB_CHG_EN AD21 USB_CHG_HL AF20 REG_GND AE31 AVSS_PLL0 USB_PWR_EN AF21 REG_GND AE30 AVSS_PLL1 USB_ACV_DET AE20 AE29 AVSS_PLL1 AE26 AVSS_PLL2 AE25 AVSS_PLL2 VC-1010 BOARD (2/15) CPU, CAMERA DSP, AV SIGNAL PROCESS,LENS CONTROL, MODE CONTROL, HDMI PROCESS XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 21 SATA_CKREFP VTERM0_SATA SATA_CKREFN REG_GND AVSSC_SATA SATA AVSSC_SATA AVSSC_SATA SATA_AMOUT AVSSC_SATA AVSSC_SATA AVSSC_SATA D_2.8V REG_GND AVSSC_SATA Q1403 DMG964030R LEVEL SHIFT VC-1010 BOARD (3/15) CPU, CAMERA DSP, HDMI_JACK_IN AV SIGNAL PROCESS,LENS CONTROL, MODE CONTROL, HDMI PROCESS REG_GND XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 22 N.C. FSP_XRST_OUT AK29 AL31 N.C. N.C. FSP_XRST_IN AK28 XFLASH_RST AK31 N.C. N.C. FSP_INT AF23 N.C. C1517 N.C. N.C. N.C. N.C. REG_GND VC-1010 BOARD (4/15) CPU, CAMERA DSP, AV SIGNAL PROCESS,LENS CONTROL, MODE CONTROL, HDMI PROCESS XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 23: Audio Processor
0.1u C2415 C2403 0.01u 0.1u R2414 2200 CX3[][]/PJ3[][] Model R2427 R2428 R2415 C2416 INT_MIC_L 2200 0.01u INT_MIC_R R2429 C2425 C2426 R2430 R2431 6800 6800 R2432 AUDIO_GND R2433 EXT_MIC_R EXT_MIC_L AUDIO_GND VC-1010 BOARD (5/15) AUDIO PROCESSOR XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 24 R3007 4700 REG_GND C3001 C3002 C3003 DAO_D1 CLOCK 0.1u 0.1u MCLK IC3001 DBDA CS48L10-CWZR AUDIO DSP DBCK R3006 XRESET XSYS_RST CLK/SCL C4 D3 D2 C3 C2 AV_SCK AV_SO MISO_SDA XCS_IC_3001 VC-1010 BOARD (6/15) AUDIO DSP XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3...
Page 25 A7 A6 A5 B5 B4 A4 A3 B3 A2 B2 A1 C2 Note: IC3301 is not supplied, but this is included in VC-1010 COMPLETE BOARD (SERVICE). PJ3[][] Model PJ2[][] Model VC-1010 BOARD (7/15) LCD SERIAL INTERFACE TRANSMITTER XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-10...
Page 26: Video Selector
SYS_HSYNC LCD_XHD PDATA21 PDATA2 SYS_VSYNC LCD_XVD CL3409 PDATA22 PDATA1 SYS_DE LCD_DATEN PDATA23 PDATA0 Note: IC3401 is not supplied, but this is included in VC-1010 COMPLETE BOARD (SERVICE). VC-1010 BOARD (8/15) PJ3[][] Model VIDEO SELECTOR XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-11...
Page 27: Hdmi Receiver
HDMI_RX_PDATA18 HDMI_RX_PDATA19 HDMI_RX_PDATA20 HDMI_RX_PDATA21 HDMI_RX_PDATA22 HDMI_RX_PDATA23 Q3601 SSM3K121TU, LSOYF B+ SWITCH D_1.8V D_1.8V_HDMI_RX R3626 Q3602 SSM3K121TU, LSOYF B+ SWITCH A_1.8V A_1.8V_HDMI_RX R3627 VC-1010 BOARD (9/15) LOAD_SW2 R3625 PJ3[][] Model C3620 0.1u HDMI RECEIVER REG_GND XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-12...
Page 28 VOUT BL_H C4337 C4338 VC-1010 BOARD (10/15) 2.2u Note: IC4304 (Projector Model) is not supplied, but this is included in LCD_CABC_PWM VC-1010 COMPLETE BOARD (SERVICE). R4322 DC/DC CONVERTER, LANC INTERFACE BL_L R4341 XX MARK: NO MOUNT REG_GND R4315 HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-13...
Page 29 BATT_UNREG_SENSE XLANC_PWR_ON XLANC_ON VBUSOK USB_DD_EN USB_DD_PGOOD ISETOUT1 ISETOUT2 Note: IC4801 is not supplied, but this is included in VC-1010 COMPLETE BOARD (SERVICE). NENU LOAD_SW2 SYS_DD_ON_IC_4302 SYSTEM_AD VC-1010 BOARD (11/15) GENERAL_AD FRONT CONTROL, LANC INTERFACE XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-14...
Page 30 SHUTTER_A FOCUS_A FC_DIR_A H10 IN4B OUT4B LENSV_EN LENS_COVER_DIR_PWM FOCUS_XB FC_ENB IN5A OUT5A FOCUS_B FC_DIR_B G10 IN5B OUT5B G8 IN6A OUT6A I_DRIVE- IN6B OUT6B I_DRIVE+ MR_A_2.8V A_3.3V VC-1010 BOARD (12/15) C5524 C5525 STEADYSHOT PROCESSOR REG_GND XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-15...
Page 31: Usb Control
CL9106 MAIN_UNREG ISETIN3 VOUT C9118 BATT CL9108 ISETOUT1 ISETOUT1 CL9109 ISETOUT2 ISETOUT2 BGATE D9101 RB480Y-40T2R EVER_3.0V R9111 R9120 UNREG_IN_DET R9134 R9136 R9138 C9110 C9114 C9111 C9115 0.1u 0.1u REG_GND VC-1010 BOARD (13/15) USB CONTROL XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-16...
Page 32 R7703 REG_GND NJM3232MG2 (TE2) VREF ROLL SENSOR COM412 I/O_UNREG ROLL_AD VST_C_CHARGE REG_GND L7701 10uH A_2.8V C7707 4.7u REG_GND VC-1010 BOARD (14/15) VC-1010 BOARD (15/15) ACV/BATT SWITCH CX28[]/CX29[]/CX3[][]/PJ3[][] Model ROLL SENSOR XX MARK: NO MOUNT XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-17...
Page 33: Internal Memory
4.7u 0.1u TE1_DAT_2 Note: C8103 and C8104 are not supplied, but they are TE1_DAT_3 included in MM-102 COMPLETE BOARD. TE1_DAT_4 TE1_DAT_5 TE1_DAT_6 TE1_DAT_7 R8111 XX TE1_VCC REG_GND MM-102 BOARD (1/2) IM Model INTERNAL MEMORY XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-18...
Page 34 AD11 A D12 N9 N10 N11 P8 P9 P10 P11 P12 R12AD10 A E10AF9AF11U12 V11AA16 AB15 R8 R10 U13 W11Y16AB14AE8 AE11 AF10 AF12 AB11 A6 A9 A12 A15 A18 A21 B3 B24 D1 D26 K4 K5 K6 K7 K8 K19 K20 K21 K22 K23 L4 L5 L6 L7 L8 L19 L20 L21 L22 TE1_CMD R8202 TE1_CLK TE1_DAT_0 C8205 TE1_DAT_1 C8204 TE1_DAT_2 TE1_DAT_3 C8202 C8203 TE1_DAT_4 TE1_DAT_5 TE1_DAT_6 TE1_DAT_7 R8203 R8201 TE1_VCC MM-102 BOARD (2/2) REG_GND IM Model NOT USED XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-19...
Page 35 CL7501 CRESET_P R7520 R7521 A_2.8/3.3V A_2.8V C7516 APOX 10uH L7501 A_2.8V SE7501 C7515 C7514 30kHz/35kHz VREF 0.1u 4.7u PITCH/YAW SENSOR REG_GND APOY C7517 REG_GND YAW_AD PITCH_AD MS-1004 BOARD (1/2) PITCH/YAW SENSOR XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-20...
Page 36 D_2.8V D_2.8V R8067 R8069 CN8003 KEY_AD1 KEY_AD2 PROJECTOR S8003 S8002 Note: CONTROL SWITCH BLOCK (PS40900) is not VD8005 VD8007 included in MS-1004 COMPLETE BOARD (SERVICE). REG_GND MS-1004 BOARD (2/2) MEMORY CARD SLOT, LITHIUM BATTERY XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-21...
Page 37 D_3.3V GPS_UART_RXD GPS_UART_TXD REG_GND REG_GND REG_GND A_5.0V A_5.0V A_5.0V TP_SEL1 GPS_UART_CTS GPS_UART_RTS BL_H BL_L TP_Y TP_X XPJ_PARK XCS_LCD AV_SO A_1.8V AV_SCK PJ_TEMP_AD XBB_RST REG_GND FP-2054 FLEXIBLE BOARD KEY_AD2 SYSTEM_AD CX2[][] Model VC-PD1011 CONNECTION (PRINTED WIRING BOARD is omitted.) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-22...
Page 38 LCD_VD VSYNC LCD_B_2 REG_GND LCD_HD HSYNC REG_GND CL6210 SE6201 D1+/LCD_B_1 LCD_B_1 AV_SO PANEL N.C/REG_GND XCS_LCD NORMAL/REVERSE CL6211 DETECT D1-/LCD_B_0 LCD_B_0 AV_SCK RB6202 REG_GND XBB_RST C6202 R6204 REG_GND REG_GND REG_GND CN6202 PD-1011 BOARD CX2[][] Model XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-23...
Page 39 A_5.0V AV_SO TP_SEL1 A_1.8V GPS_UART_CTS AV_SCK GPS_UART_RTS PJ_TEMP_AD BL_H XBB_RST BL_L REG_GND TP_Y KEY_AD2 TP_X SYSTEM_AD PJ_INTZ XCS_LCD AV_SO A_1.8V AV_SCK PJ_TEMP_AD XBB_RST REG_GND FP-2055 FLEXIBLE BOARD KEY_AD2 SYSTEM_AD Projector Model VC-PD1012 CONNECTION (PRINTED WIRING BOARD is omitted.) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-24...
Page 40 REG_GND REG_GND SE6001 LCD_DG6 LCD_DG3 LCD_DG6 LCD_DG3 PD-1012 BOARD (1/2) REG_GND LCD_DG7 LCD_DG7 LCD_DG2 LCD_DG2 PANEL NORMAL/REVERSE REG_GND REG_GND DETECT Projector Model LCD_DR0 LCD_DR0 LCD_DG1 LCD_DG1 LCD_DR1 LCD_DR1 LCD_DG0 LCD_DG0 REG_GND REG_GND XX MARK: NO MOUNT REG_GND REG_GND HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-25...
Page 41 GPS_UART_CTS SO0/RTS_1 GPS_UART_RXD SCK0/TX0_1 XSCS0/CTS_1 GPS_UART_RTS SIN0/RX0_1 GPS_UART_TXD REG_GND REG_GND C6107 C6108 C6109 C6110 D_2.8V D_3.3V XGPS_RST R6114 CN6101 D_2.8V D_3.3V XGPS_RST R6116 R6115 D_3.3V C6105 C6106 REG_GND PD-1012 BOARD (2/2) Projector Model DESERIALIZER XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-26...
Page 42 REG_GND AV_SCK A_5.0V XBB_RST A_5.0V REG_GND A_5.0V KEY_AD2 TP_SEL1 SYSTEM_AD GPS_UART_CTS GPS_UART_RTS BL_H BL_L TP_Y TP_X XPJ_PARK XCS_LCD AV_SO A_1.8V AV_SCK PJ_TEMP_AD XBB_RST REG_GND FP-2068 FLEXIBLE BOARD KEY_AD2 SYSTEM_AD CX3[][] Model VC-PD1013 CONNECTION (PRINTED WIRING BOARD is omitted.) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-27...
Page 43 PD-1013 COMPLETE BOARD. GPS_UART_CTS SO0/RTS_1 GPS_UART_RXD SCK0/TX0_1 GPS_UART_RTS XSCS0/CTS_1 GPS_UART_TXD SIN0/RX0_1 REG_GND REG_GND C6317 C6318 C6319 C6320 D_2.8V D_3.3V XGPS_RST R6306 CN6303 D_2.8V D_3.3V XGPS_RST R6308 R6307 D_3.3V C6316 C6315 PD-1013 BOARD CX3[][] Model REG_GND XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-28...
Page 44 YAW_AD YAW_AD REG_GND REG_GND A_2.8/3.3V A_2.8/3.3V REG_GND REG_GND CRESET_P CRESET_P REG_GND REG_GND PITCH_AD PITCH_AD REG_GND REG_GND D_2.8V D_2.8V EVER_3.0V EVER_3.0V XPHOTO_LED XPHATO_LED KEY_AD1 KEY_AD1 XCHARGE_LED XCHARGE_LED ZOOM_VR_AD ZOOM_VR_AD FP-2056 FLEXIBLE BOARD VC-MS CONNECTION (PRINTED WIRING BOARD is omitted.) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-29...
Page 45 MEM0_DQ10 A10/AP DQ10 MEM0_A11 MEM0_DQ11 DQ11 CL8701 MEM0_A12 DQ12 MEM0_DQ12 DQ13 MEM0_DQ13 MEM0_DQ14 DQ14 DQ15 MEM0_DQ15 FP-2060 FLEXIBLE BOARD PJ-1003 BOARD (1/4) IM Model Projector Model VC-MM CONNECTION SDRAM (PRINTED WIRING BOARD is omitted.) XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-30...
Page 46 DMD_D0 DMD_D0 DMD_BUS DMD_BUS DMD_STRB DMD_STRB DMD_VOFS DMD_VOFS C8517 DMD_VBIAS DMD_SAC_BUS DMD_SAC_BUS DMD_VBIAS C8543 C8544 0.1u DMD_OEZ DMD_OEZ DMD_VRST DMD_VRST C8545 C8546 CL8502 TEST D_1.8V C8538 D_1.8V PJ-1003 BOARD (2/4) REG_GND Projector Model CONNECTORS XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-31...
Page 47 TSTPT_1 VDD10 C8621 JTAGTDO TSTPT_0 VDD10 R8606 M11 VDD10 C8622 C8602 VDD_PLL R8611 C8606 C8605 PLL_REFCLK_O 0.01u 0.1u R8612 C8603 R8607 K15 PLL_REFCLK_I VSS_PLL X8601 16.66667MHz REG_GND PJ-1003 BOARD (3/4) Projector Model DMD CONTROL XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-32...
Page 48: Led Drive
R8818 PJ_RSTZ PAD_PROJ_ON DPP_CMP_OUT DPP_CMP_PWM Note: C8803, IC8801 and R8815 are not supplied, but they are included in PJ-1003 COMPLETE BOARD. CL8803 LED_SEL0 CL8804 LED_SEL1 R8801 PJ_TEMP_AD PJ-1003 BOARD (4/4) Projector Model LED DRIVE XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-33...
Page 49 DMD_SCTRL (PAGE 6-31) DMD_D0 DMD_BUS DMD_STRB DMD_VOFS DMD_VBIAS PROJRCTOR UNIT(1/2) Note: PROJECTOR UNIT is not included in DMD_SAC_BUS FP-2106 FLEXIBLE COMPLETE BOARD. DMD_OEZ DMD_VRST TEST D_1.8V D_1.8V FP-2106 FLEXIBLE BOARD Projector Model PROJECTOR UNIT XX MARK: NO MOUNT HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 6-34...
Page 50: Printed Wiring Boards
C6751 C6720 C6710 C6708 C6716 CL001 C6703 R6703 C6752 C6715 R6701 R6705 R6767 CN6702 R6729 QR-CODE 1-887-995- 1-887-995- 11 Note: All mounted parts are not supplied, but they are included in CM-1004 COMPLETE BOARD. HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-35...
Page 51 R4101 C5508 R5527 R1376 CN1025 Q9102 Q4101 CN1008 CN1003 QR-CODE 1-887-055- 11 21 Note: D1001, IC3301, IC3401, IC3601 and IC4304 (Projector Model) are not supplied, but they are included in VC-1010 COMPLETE BOARD (SERVICE). HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-36...
Page 52 CN1010 FB1004 CN1038 R1381 CN9101 CN1009 1-887-055- 11 21 MULTI Note: CN1038, D9103 (CX3[][]/PJ3[][] Model), FB1416, FB1417, IC1301, IC4801, IC7701 and SE7701 are not supplied, but they are included in VC-1010 COMPLETE BOARD (SERVICE). HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-37...
Page 53 AF23 AE23 AU24 AR26 C8104 R8113 C8103 R8111 R8112 R8203 RB8102 RB8101 R8202 C8701 CN8101 1-884-970- 11 1-884-970- 11 Note: C8103 and C8104 are not supplied, but they are included in MM-102 COMPLETE BOARD. HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-38...
Page 54 IC6001 C6003 CN6001 R6045 R6044 C6049 C6045 VDR603 R6042 S6001 S6001 RB6002 R6018 C6040 C6041 Note: IC6103 is not supplied, but this is included in PD-1012 COMPLETE BOARD. 1-887-058- Cut this part (PJ3[][] Model) HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-39...
Page 55 PD-1013 BOARD : CX3[][] Model SOL721 Q6301 SE6301 C6321 CL6303 CL6304 CL6306 CL6308 CL6310 CL6301 CL6302 CL6305 CL6307 CL6309 CL6311 C6322 CN6305 C6307 C6310 QR-CODE C6301 IC6301 R6307 R6308 RB6301 CN6303 C6319 C6317 1-887-153- 11 HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-40...
Page 56 (BT8001) on the MS-1004 board. バッテリホルダ（BH8001）も同時に新品に交換して下さい。 (The battery holder removed once cannot be used again.) （一度使用したバッテリホルダは再使用できません。） When mounting these parts, mount new battery holder first and 部品取り付けの際は，先にバッテリホルダを取り付けてからリチウム電池を装着して下さい。 attach new lithium battery next. HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-41...
Page 57 FP-2053 FLEXIBLE BOARD : CX3[][]/PJ3[][] Model J0302 PLUG IN POWER 1-887-066- 11 FP-2106 FLEXIBLE BOARD : Projector Model 1-887-503- 11 HDR-CX220/CX220E/CX230/CX230E/CX280/CX280E/CX290/CX290E/CX320/CX320E/CX380/CX380E/CX390/CX390E/PJ220/PJ220E/PJ230/PJ230E/PJ320E/PJ380/PJ380E/PJ390/PJ390E_L3 : Uses unleaded solder. 6-42E...
