Summary of Contents for Hanna HI 2400

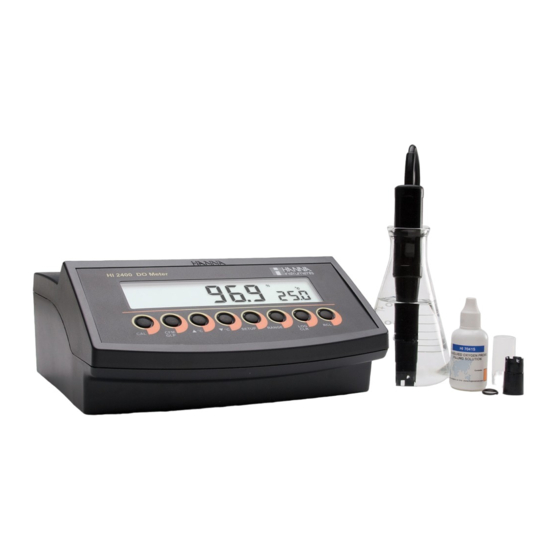

- Page 1 Instruction Manual HI 2400 Dissolved Oxygen Bench Meter www.ponpe.com w w w. h a n n a i n s t . c o m...
-
Page 2: Table Of Contents
W A R R A N T Y W A R R A N T Y HI 2400 is guaranteed for two years against defects in workmanship and materials when used for its intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months. This warranty is limited to repair or replacement free of charge. -
Page 3: Preliminary Examination
Remove the instrument from the packing material and examine it carefully to make sure that no damage has occured during shiping. If there is any damage, notify your Dealer or the nearest Hanna Customer Service Center. Each instrument is supplied with: •... -
Page 4: Probe Functional Description
PROBE FUNCTIONAL DESCRIPTION PROBE FUNCTIONAL DESCRIPTION PROBE FUNCTIONAL DESCRIPTION PROBE FUNCTIONAL DESCRIPTION PROBE FUNCTIONAL DESCRIPTION 1. DO Probe 2. Protective Cap 3. Watertight Shielded Cable 4. Polypropylene Probe Body 5. Temperature Sensor 6. O-Ring Seal 7. Silver Chloride Anode 8. Platinum Cathode (sensor) 9. -
Page 5: Functional Description
F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N... -
Page 6: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS 0 . 0 0 . 5 . 0 0 0 . 0 . 0 5 º 0 . 2 3 ) F ° 0 . 0 I T U 1 . 0 C ° ± l u f c s l e l a... -
Page 7: Operational Guide
Probes shipped from Hanna Instruments are dry. To hydrate the probe and prepare it for use, connect it to the... - Page 8 INSTRUMENT START-UP • Turn the instrument on by pressing the ON/OFF switch. • All LCD tags are displayed and a beep is generated while the instrument performs a self test. • The instrument will display “ ” blinking until initialization is complete. •...
- Page 9 For an accurate calibration, it is recommended to wait at least 15 minutes to ensure precise conditioning of the probe. Keep the protective cap on during polarization time and remove it for calibration and measurements. Follow the calibration procedure (see page 10).
-
Page 10: Do Calibration
The instrument can be calibrated in maximum 2 points: 0.0% (zero calibration) and 100.0% (slope calibration). The zero calibration of the HI 2400 is very stable, therefore this procedure needs to be performed only whenever the probe or the membrane is replaced. - Page 11 ZERO CALIBRATION • Submerse the probe into HI 7040 zero oxygen solution and stir gently for 2-3 minutes. • Press CAL. The “~” and “ ” tags will blink on the LCD until the reading is stable. • When the reading is stable, “CFM” starts blinking. Press CFM to confirm the “0.0%”...
- Page 12 • If the temperature goes out of range during calibration the “WRONG”, temperature unit tag and both measurements will blink. • HI 2400 has automatic buffer recognition function. If the ARROW keys are pressed to select the desired calibration value, the automatic buffer recognition function is disabled.
-
Page 13: Good Laboratory Practice (Glp)
GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GLP is a set of functions that allows storage and retrieval of data regarding the maintenance and status of the system. All data regarding DO calibration is stored for the user to review when necessary. -
Page 14: Setup
• The instrument ID. S E T U P S E T U P S E T U P S E T U P S E T U P Setup mode allows viewing and modifying the following parameters: • Salinity Factor •... - Page 15 n i l y t i ) l / C º F º l / g l / g l / g l / g l / g Note: The relationship between salinity and chlorinity for sea water is given by the equation below: Salinity (g/l) = 1.80655 Chlorinity (g/l) ALTITUDE FACTOR Press CAL when the altitude factor is displayed.
- Page 16 u t i t , e d s r e t e v o a e S l e v C º F º 0 0 3 0 0 6 0 0 9 0 0 2 0 0 5 0 0 8 0 0 1 0 0 4 0 0 7...
- Page 17 LOG INTERVAL Press CAL when log interval is displayed. The log interval and “CFM” tag is displayed blinking. Press the ARROW keys to change the custom buffer value. Press CFM to confirm the selection. Press CAL to escape without saving. CURRENT TIME Press CAL when the current time is displayed.
- Page 18 Press CFM to save the modified value. Press CAL to escape without saving. BEEP STATUS Press CAL when the beep status is displayed. The beep status (“ON” or “OFF”) and “CFM” tag will start blinking. Press the ARROW keys to change the beep status. Press CFM to save the modified value or press CAL to escape without saving.
-
Page 19: Logging
L O G G I N G L O G G I N G L O G G I N G L O G G I N G L O G G I N G This function allows the user to log DO (in ppm or %) together with temperature automatically, for long periods of time. - Page 20 If the log space is full, the “FULL LOG” message will be displayed and no more data will be saved. Note: When pressing any key that is not active, while lot logging is running, the following message is displayed for a few seconds. VIEW LOGGED DATA Press the RCL key while in measurement mode to retrieve the stored information.
- Page 21 • The date on the primary LCD, along with “DATE”, month and day tags. • The salinity on the primary LCD and “SAL” message on the secondary LCD. • The altitude on the primary LCD and “ALt” message on the secondary LCD.
-
Page 22: Temperature Calibration (For Technical Personnel Only)
If the temperature measurements are not accurate, temperature recalibration should be performed. For an accurate recalibration, contact your dealer or the nearest Hanna Customer Service Center, or follow the procedure below. • Prepare a vessel containing ice and water and another one containing hot water (at a temperature of around 50 °C). - Page 23 • Submerse the DO probe in the second vessel as near as possible to the reference thermom- eter. Allow a few seconds for the probe to stabilize. • Use the ARROW keys to set the reading on the secondary LCD to that of the hot water. •...
-
Page 24: Pc Interface
USB socket and the other to the USB port of your PC. Note: If you are not using Hanna Instruments HI 92000 software, please see the following instructions. - Page 25 CHR xx Change the instrument range according with the parameter value (xx): • xx=06 % range • xx=07 ppm range The instrument will answer for these commands with: <STX> <answer > <ETX> where: <STX> is 02 ASCII code character (start of text) <ETX>...
- Page 26 Requests the instrument model name and firmware code (16 ASCII chars). Requests the calibration data record. The answer string contains: • GLP status (1 char): represents a 4 bit hexadecimal encoding. • 0x04 - DO calibration available • DO calibration data (if available), which contains: •...
- Page 27 GLDxxxfff:Requests the records of the “xxx” lot number. The records are sent in frames of 10 records; “fff” is the frame number (01 first frame). (Example: Lot 13 has 53 records. The records will be sent in 6 frame, 5 with10 records and 1 with 3 records.) Command Parameters: xxx - Lot number (eq: for lot number 1 xxx = 001) fff - requested frame number - first frame is labeled 01...
-
Page 28: Probe & Membrane Maintenance
PROBE & MEMBRANE MAINTENANCE PROBE & MEMBRANE MAINTENANCE PROBE & MEMBRANE MAINTENANCE PROBE & MEMBRANE MAINTENANCE PROBE & MEMBRANE MAINTENANCE The oxygen probe body is made of reinforced plastic for maximum durability. A thermistor temperature sensor provides temperature measurements of the sample. -
Page 29: Troubleshooting Guide
Important In order to have accurate and stable measurements, it is important that the membrane surface is in perfect condition. This semipermeable membrane isolates the sensor elements from the environment but allows oxygen to enter. If any dirt is observed on the membrane, rinse carefully with distilled or deionized water. -
Page 30: Accessories
A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S HI 7040M Zero Oxygen Solution, 230 ml... - Page 31 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurement in microwave ovens. Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice. sale@ponpe.com...
- Page 32 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office Printed in EUROPE (ROMANIA) MAN2400Y 07/10...
