Summary of Contents for wallas 3007

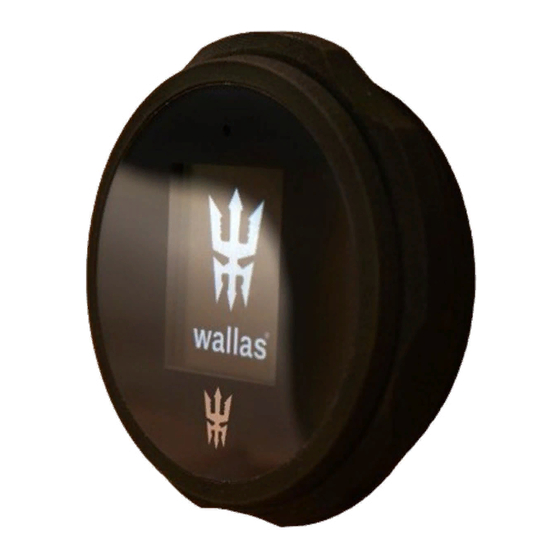

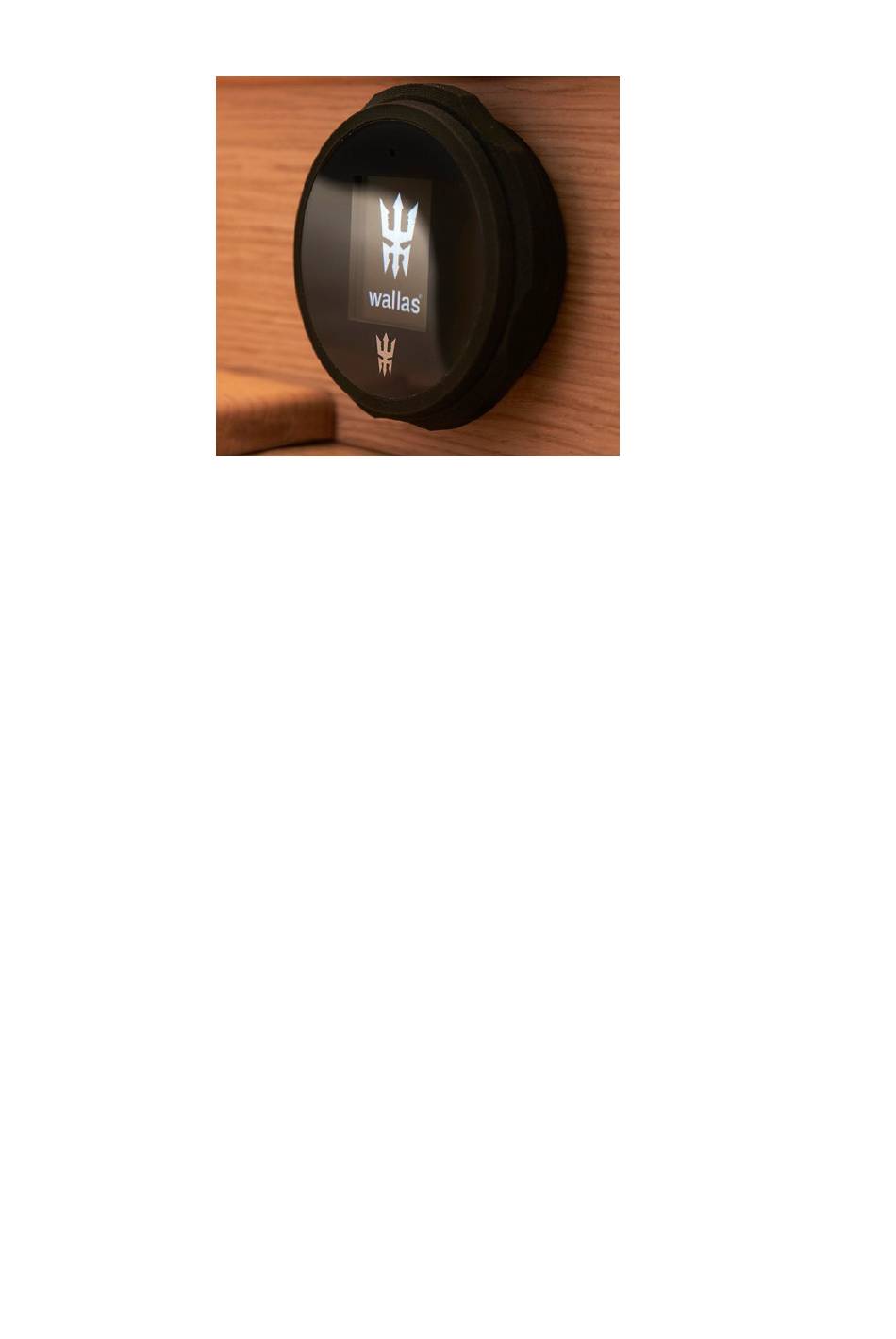

- Page 1 INTELLIGENT CONTROL PANEL...
- Page 2 - Control Panel functions ......................................................Control Panel functions Combi/40 EA - Control Panel functions Combi/ 40 EA ............................................Wallas Remote application and Control Panel connection - Wallas Remote application and Control Panel connection ................................................................Control Panel - SW update ..........................
- Page 4 Parts - 2 -...
- Page 5 Steps Step2. Install assembly plate. (Wall assemby plate is Step3. Install screws 3 pcs. Pull carefully extra cable Step 1. Install cable into Wall assembly plate. only needed in surface assembly) out. NOTE! RED DOT UPSIDE. NOTE! RED DOT UPSIDE. Hole assembly: Step 5.
- Page 6 - 4 -...
-
Page 7: Control Panel Functions
Note: Wallas unit's starting procedure will take few minutes (5-8 minutes). To get familiar with the Control Panel's functionality, select Settings Menu (gear icon). By pressing the button again it will open the main menu displays. - Page 8 Main menu ( selectable) Temperature target (selectable) Room Temperature Display areas: Heater status ON/OFF and ventilation fan boost (selectable) Info bar : On/Off , flame, info, lock, heater power % Manual control Thermo control Ventilation Settings - heater power is manually - set the desired target - ventilation fan speed is set - See details below...
- Page 9 Celcius / Fahrenheit. devices. - CHECK the heater before - If there are three errors in a row removing locked state by selecting the Wallas unit will be Locked for "Clear Lock" safety reasons. - 7 -...
- Page 10 Control Panel functions Combi/ 40 EA Control Panel functions in Wallas Combi heater Control panel has COMBI and VENTILATION functionalities, when it is connected into Wallas Combi heater. (Combined AIR & WATER heater.) Combi Scroll Temperature target and Note: Water temperature...
-
Page 11: Local Connection
First you need to download the Wallas Remote application to your mobile device from your application store. When you start Wallas Remote first time it will search if there is Wallas heater with intelligent Control Panel in range. When it locates heater it will start heater and application bonding process. - Page 12 Control panel can be connected to the internet with WiFi connection. You can then operate your heater with the " Wallas Remote" application trough Internet. Wifi connection is created trough Wallas Remote application . ( Local connection between application and Control Panel must be available before setup) When you first time select connecting, application will ask SSID and Password.
- Page 13 Wallas heater. Wallas reserves right to develop application useabilility and features. Connections tips: 1. Read your mobile device user guide how connections and Wifi connections are managed in your device. 2. Make sure your mobile device local connections and WIFI is allowed in you mobile device . ( flight mode is OFF)
- Page 14 7. If you mobile device has allready connection into heater it can not create new before old connection is removed from you device. In some phone models this has to be made manually. Remove "WALLAS OP" from your phones paired BT devices list (note there might be several OP pairings in mobile device list, remove all) and restart Bluetooth before new pairing is possible.
- Page 15 SW update is complicated process, and something may happen during the update, example :sudden power brakedown, network failure, etc. Therefore it is forbidden to start SW update for control panel if Wallas heater is the only heat source and being unable to start heater would create a danger.
- Page 16 Wait 5 minutes update to finish. If update is not succesfull, file error: If new SW version is - start update again after available "Update link" few minutes will appear into display. Select uppdate. For SW update make sure you have If update is stopped Do not close application strong and reliable wifi signal.
