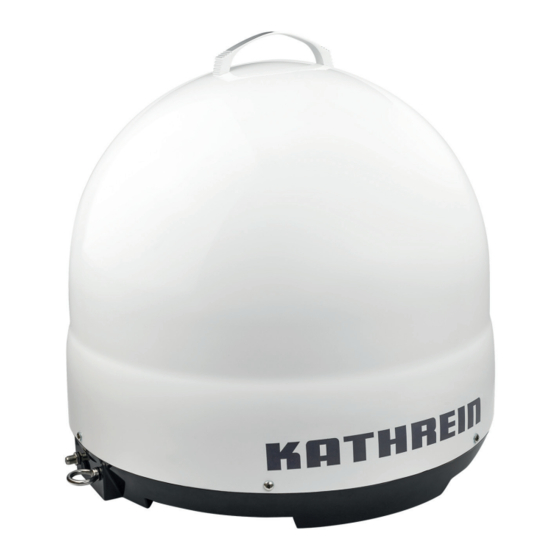

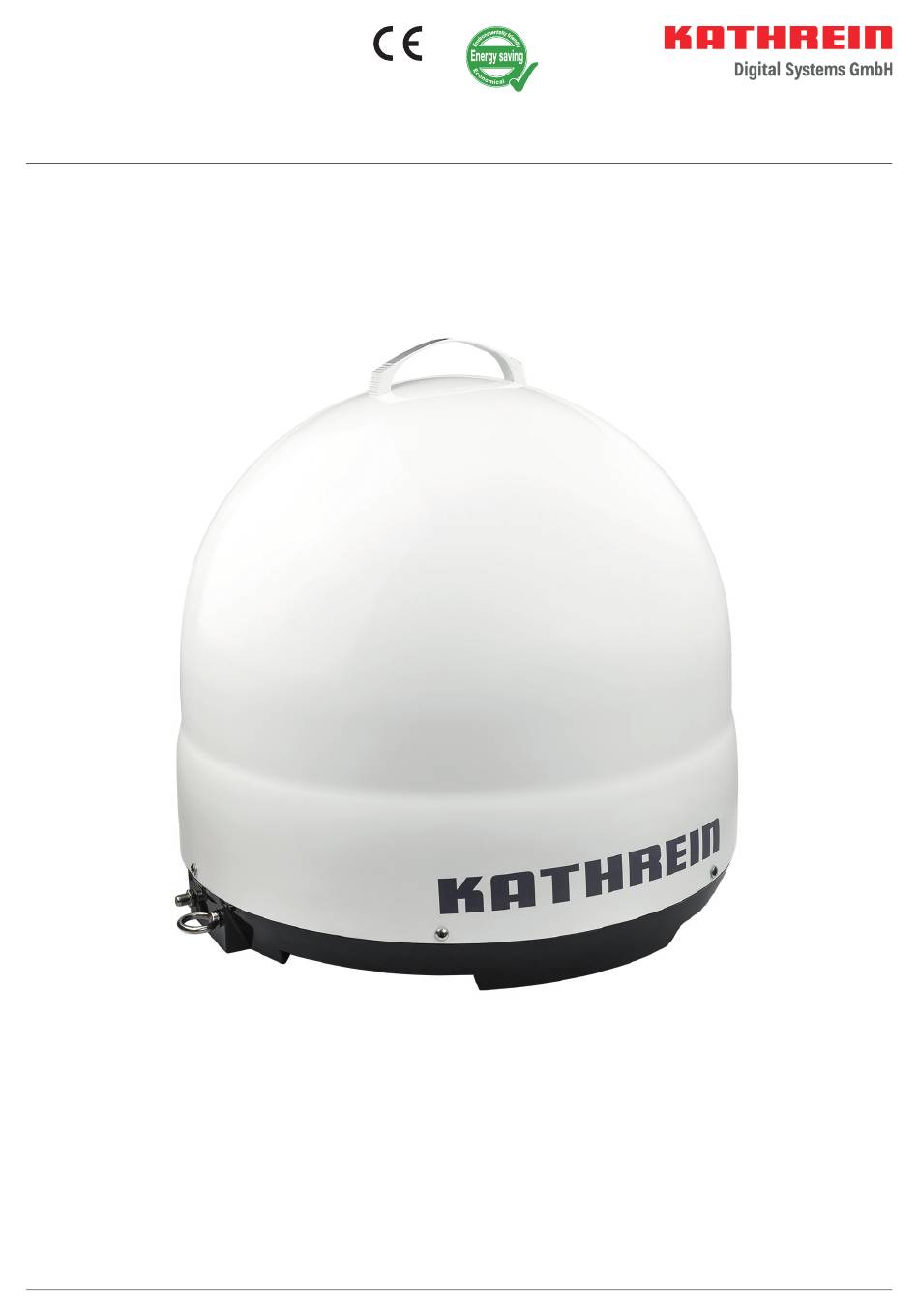

- Page 1 CAP 500M 203500003 Fully Automatic, Portable Camping Satellite System Instruction Manual 1 / 8...
-
Page 2: Table Of Contents
Scope of Supply ..............................4 Important Information ............................. 4 Safety notes ..................................4 Legal notes ..................................4 Description of the CAP 500M ..........................5 General information ................................5 Getting started ..................................5 Parts description ................................. 6 Connection example ................................6 Footprint for Astra 19.2°... -
Page 3: About This Manual
Intended Use The CAP 500M fully automatic camping satellite system is designed for receiving digital TV and radio channels via Astra 19.2° East exclusively. This antenna cannot receive terrestrial signals (e.g. DVB-T, DVB-T2). The CAP 500M is a receiver-independent solution and can be used in conjunction with any satellite-enabled end device. -
Page 4: Scope Of Supply
Directive 2014/53/EU. The full text of the EC Declaration of Conformity is available at the following www.kathrein-ds.com internet address: KATHREIN Digital Systems GmbH are not liable for product damage due to external infl uences, wear or improper handling, unauthorised repair, modifi cations or accidents. 4 / 8... -
Page 5: Description Of The Cap 500M
This manual describes the functions and operation of the fully automatic, portable CAP 500M satellite system. For correct and safe operation of the system, follow this manual. The CAP 500M is a smart satellite TV reception system which is designed to automatically self-align to the pre-set satel- lite (Astra 19.2° East). -
Page 6: Parts Description
Parts description Handle Antenna TV/STB Connection to receiver/TV set Anti-theft fixture Connection example TV set with satellite tuner CAP 500 M Fully automatic, portable system EV 06 Outdoor F-type outlet 6 / 8... -
Page 7: Footprint For Astra 19.2° East
Operation The CAP 500M is supplied with power, as soon as the receiver/TV set is switched on. The antenna will fi rst check (for about 5 seconds), whether a TV signal is already available. This is the case if you have not moved the antenna since last using it. -
Page 8: Technical Data
Disposal The packaging of the CAP 500M consists exclusively of recyclable materials. Use the return and collection systems available in your country (e.g. dual system) for recycling the sorted packaging waste. Electronic equipment is not domestic waste – in accordance with directive 2012/19/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 04th July 2012 concerning used electrical and electronic appliances, it must be disposed of properly.
