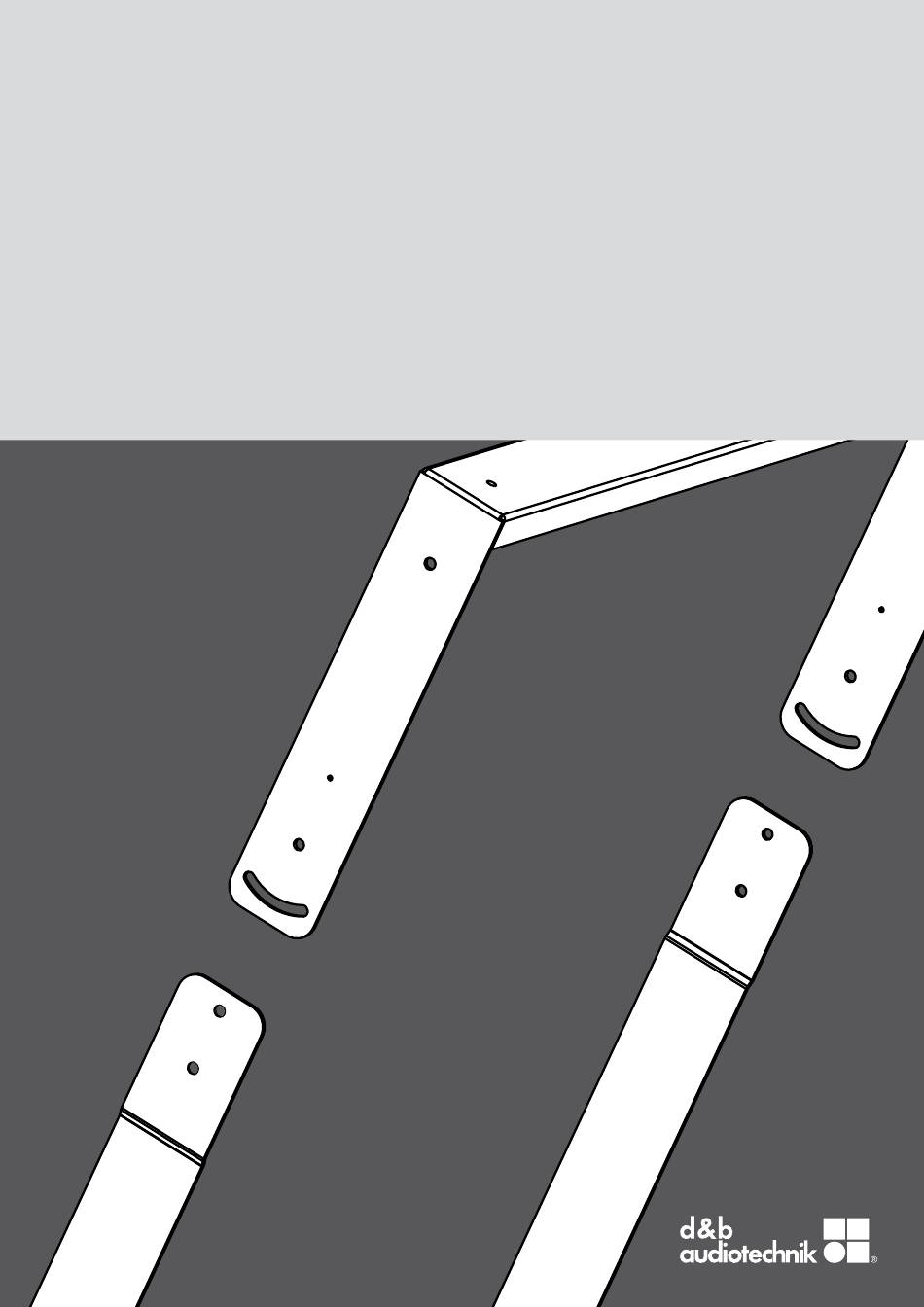

- Page 1 Z5555/Z5556 Mounting instructions 1.2 en...
- Page 2 General information Z5555/Z5556 Mounting instructions Version: 1.2 en, 02/2021, D2628.EN .01 Copyright © 2021 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
-
Page 3: Table Of Contents
1.4 Mounting options and angle settings........5 1.5 Z5555 Assembly................ 6 1.6 Z5555 Adjustments..............7 1.7 Z5555/Z5556 Assembly............8 Z5555 Fixing template............9 Built-in dimensions............10 Manufacturer's declaration........... 11 4.1 EU conformity (CE symbol)............11 4.2 Disposal..................11 d&b Z5555/Z5556 Mounting instructions 1.2 en... -
Page 4: Z5555 Horizontal Bracket 21S-Sub/Z5556 Bracket Extension 21S-Sub
Z5555 Horizontal bracket 21S-SUB/Z5556 Bracket extension 21S-SUB 1.1 Scope of supply and weight Please verify the shipment for completeness and proper condition of the items. Z5555 Horizontal bracket 21S-SUB Qty. d&b Code Description Z5555 Horizontal bracket 21S-SUB [1] Including: Q3051.003.00 Hex head bolt M10 x 25 [2] Q5301.000.00... -
Page 5: Intended Use
114.8 kg (253 lb). No additional loads must be added. 1.3 Intended use The d&b Z5555 Horizontal bracket 21S-SUB as well as the Z5556 Bracket extension 21S-SUB must only be used in conjunction with the d&b 21S-SUB loudspeaker as described in these mounting instructions. -
Page 6: Z5555 Assembly
To attach the bracket to the ceiling, use the holes shown in the graphic opposite to provide adequate support. A corresponding fixing template is supplied with these mounting instructions. Refer to Þ Chapter 2 "Z5555 Fixing template" on page 9. Preparing the cabinet The threaded inserts of the cabinet are covered by dummy caps in cabinet color. -
Page 7: Z5555 Adjustments
6. On the opposite side, proceed in the same manner. 1.6 Z5555 Adjustments To align the cabinet to its desired angle, proceed as follows: 1. Slightly slacken all screws. 2. Align the cabinet to its desired angle. 3. Finally tighten all screws. d&b Z5555/Z5556 Mounting instructions 1.2 en... -
Page 8: Z5555/Z5556 Assembly
▪ Observe the built-in direction [*] of the bracket extension as shown in the graphic opposite. ▪ In connection with the bracket extension, the vertical angle of 0° for both subwoofer can not be changed. d&b Z5555/Z5556 Mounting instructions 1.2 en... -
Page 9: Z5555 Fixing Template
Z5555 Fixing template Z5555 Fixing template d&b Z5555/Z5556 Mounting instructions 1.2 en... -
Page 10: Built-In Dimensions
Built-in dimensions Z5555 Mounting options and built-in dimensions in mm [inch] Z5555 with Z5556 built-in dimensions in mm [inch] d&b Z5555/Z5556 Mounting instructions 1.2 en... -
Page 11: Manufacturer's Declaration
When out of use the rigging components must be disposed of in accordance with the national environmental regulations. Ensure that damaged rigging components are disposed of in a way that they cannot be used again. d&b Z5555/Z5556 Mounting instructions 1.2 en... - Page 12 www.dbaudio.com...
