PROCEDURE TO SETUP AGS 2040AHD SURFACE GRINDER
1. Unwrap the machine and check out machine for any physical damage. If so,
report to your dealer as soon as possible. Touch-up paint is inside the toolbox.
Use it as needed.

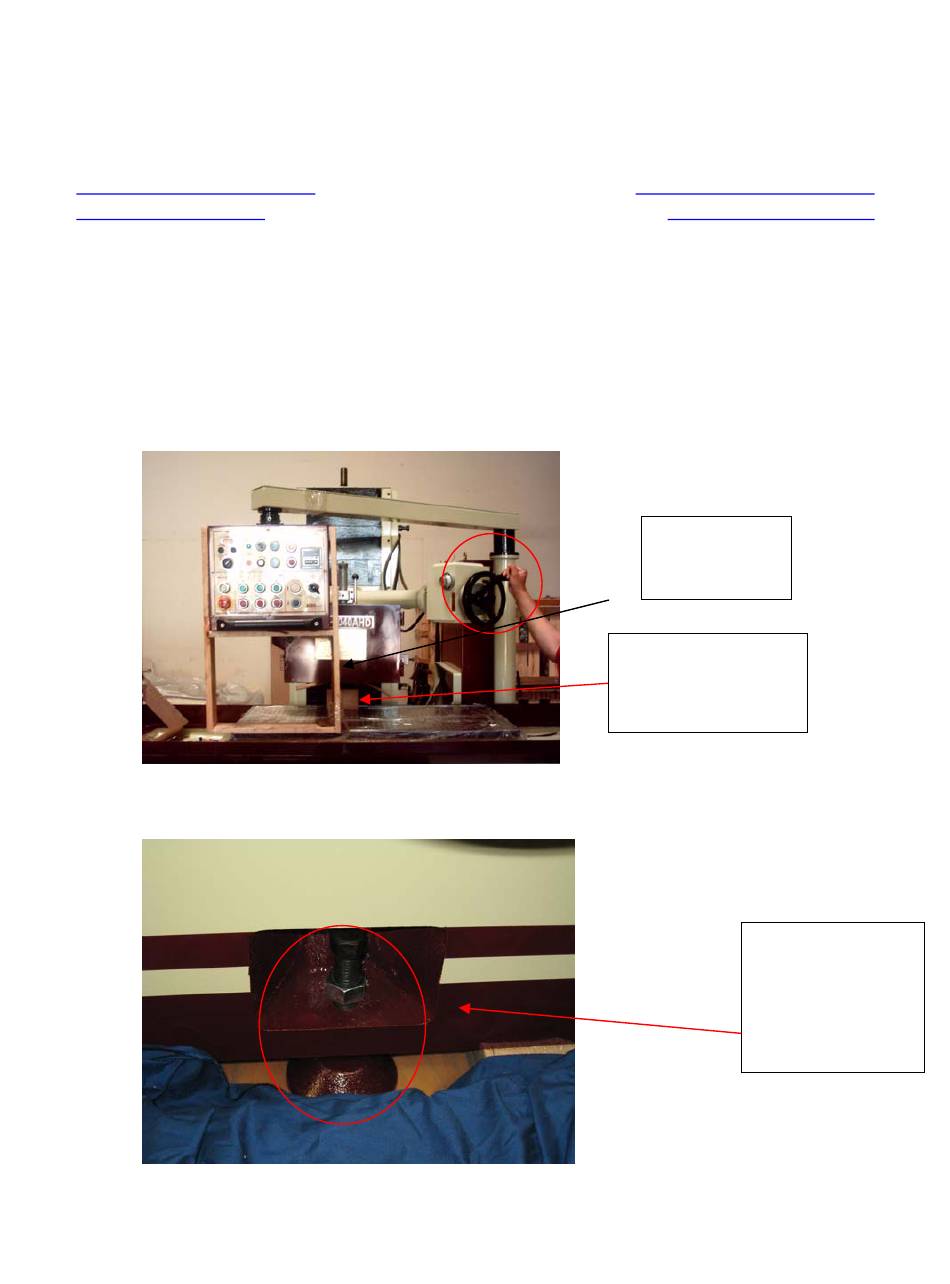

2. Turn vertical handwheel counterclockwise (spindle up) to take out spindle support
block. Swing out control panel out when removing spindle support block.
3. Move machine to appropriate location. Put leveling screw, nut and pad on
machine (follow picture)
ACER Group
Tel: 732-752-9100 Fax: 732-752-9101
Klim Industrial, Inc.
244 N. Randolphville Road
Piscataway, NJ 08854
http://www.acergroup.com
acer_klim@yahoo.com
Control
support
Spindle support
block
Leveling screw,
nut and pad
Advertisement
Related Manuals for Acer AGS 2040AHD
Summary of Contents for Acer AGS 2040AHD
- Page 1 PROCEDURE TO SETUP AGS 2040AHD SURFACE GRINDER 1. Unwrap the machine and check out machine for any physical damage. If so, report to your dealer as soon as possible. Touch-up paint is inside the toolbox. Use it as needed.
- Page 2 4. Remove the six brackets brackets 5. Place vertical screw cover on top of column Vertical screw cover...
- Page 3 6. Check input power that will be used for the machine. Power required for our machines are: 230V three phase (3Φ) or 460V three phase (3Φ). Power must be first specified upon ordering. Please connect the power to R, S, T, Ground terminal as follows with minimum current of 45 amps (230V).
- Page 4 7. Hook up electronic conduct connectors, two from hydraulic system, one from magnetic separator and paper filter and one for the light. Hydraulic system Magnetic separator and paper filter For light 8. Connect five corresponding hydraulic hoses: A-A, B-B, C-C, and P-P, T-T as labeled.
- Page 5 9. Fill up hydraulic oil (minimum 40 gallons) and lubricating oil . Make sure filling gauge is at F. Longitudinal and cross-feed way tank Hydraulic tank gauge Vertical way lube...
- Page 6 10. Turn on control. Make sure all the motors are running clockwise (spindle motor, hydraulic motor, cross-feed motor, vertical rapid motor, and coolant pump motor). 1) Release emergency button, turn on green start button. Turn chuck control on. 2) Press spindle, hydraulic and magnetic separator and paper filter system buttons to check rotation.
- Page 7 11. Leveling the machine Precisely level the machine on a solid foundation. Precise leveling of the grinder is important to the finish of the product and the tolerance of the machine. Machine level in X and Y axes has to be within .0004/12” or better. Left Center Step 1 (in center position)
- Page 8 14. Ready to run your grinder: please read through the AGS 2040/60AHD manual to familiarize yourself with all functions, features and controls. 15. Should you have any questions or comments, please contact your local dealer first. They will then refer you to Acer 714-632-9701 (west coast) or 732-752-9100 (east coast) for further assistance.
