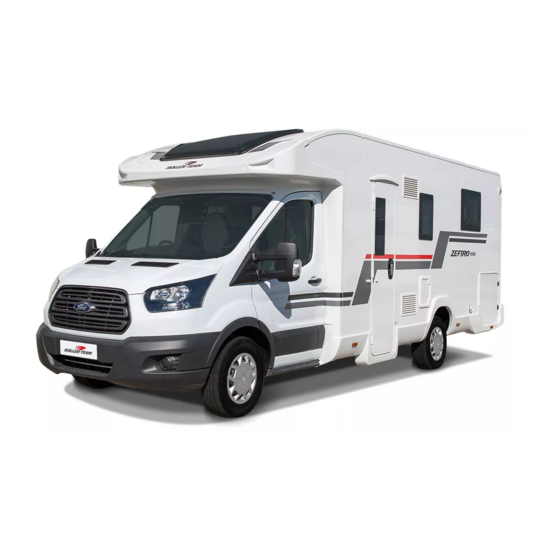

- Page 1 Zefiro 696 Reg number: ST21 BXL MANUAL...
-
Page 2: Technical Details
TECHNICAL DETAILS Seat Belts 5 Berths Overall Body Length 7.45m / 23.4" Overall Cab Width (mirrors folded) 2.35m / 7.4" Overall Height 2.95m / 9'3" MTPLM 3500kg / 68.9cwt Rear Fixed Double 1.90m x 1.5m Measured from the widest point Drop Down Double 1.9m x 1.3m Measured from the widest point / Drop down double bed has a maximum load capacity of 200kg... - Page 3 ZEFIRO 696 COMMAND CONTROL PANEL The command panel powers the Motorhome, on entering the Motorhome push the main Button, The Water Pump is the Tap sign on the panel. Press this and you will hear the pump running. The pump is required for running the water and the shower.
- Page 4 TRAUMA HEATING AND WATER CONTROLS On entering the motorhome Turn on the power by pushing the main button on the command Panel In the Swift Motorhomes the LED panel will light up. BEFORE OPERATING THE TRUMA PANEL select GAS or Electric and power up the Motorhome The Trauma controls the power source to the Motorhome, the heating and water temperature Motorhome Heating will work off the 240 v Electric or the Gas (YOU DO NOT NEED THE WATER PUMP ON FOR THE HEATING)
- Page 5 OPERATING INSTRUCTIONS Display and operating elements Rotary push button The rotary push button (8) is used to select and change set points and parameters; it is then tapped to save the values. Selected menu items flash. Turn clockwise • The menu is scrolled through from left to right •...
- Page 6 Start-up Select energy mode Start/Stand-by screen When the control panel is connected to the power supply, • Use the rotary push button to select the icon in the after a few seconds a start screen is displayed. menu line • Tap the button to go to the setting level.
-
Page 7: External Equipment
EXTERNAL EQUIPMENT Diesel filler and add Blue (Use ignition Key) If no gas supply to the Motorhome make sure Main Valve Is Open Toilet chemical for toilet Cassette In the bucket are the gas bottle Key, power cable, fresh water Hose and toilet chemical Fresh Water Hose Bicycle rack The rear Camera has two modes a Reversing Camera and... -
Page 8: Internal Equipment
INTERNAL EQUIPMENT Toilet cassette 240v electric hook up point Fresh Water filling point Before removing the toilet, Cassette make sure the lever on the toilet is in the closed position. Do not try to force the cassette out if the lever is in the correct position it will slide out Waste drain, under the gas bottle compartment Turn the Grey pipe and remove the blue cap to empty,... - Page 9 INTERNAL EQUIPMENT All external locks have the same key Rear Garage for storage.
- Page 10 INTERNAL EQUIPMENT Front Seating area This converts to 5 single bed double bed Front Bed Make Up Slide from both sides Electric drop-down double bed above the dining area.
- Page 11 INTERNAL EQUIPMENT Rear bedroom with fixed Island bed wardrobes and storage under the bed...
- Page 12 INTERNAL EQUIPMENT Separate Shower Toilet Before using the toilet, Slide the lever to the right to open the cassette flap, slide the lever to the left when finished. Do not move Lever while sitting on the toilet. Before using the toilet, Slide the lever to the right to open Button to Flush toilet...
- Page 13 Kitchen area is fully equipped with plates cups pots and pans a kettle and cutlery various cooking utensils.
- Page 14 MOTORHOME FRIDGE OPERATION The fridge will Operate in 3 modes • Engine Battery: this is used to keep the fridge cool while traveling if the gas is turned off • Gas: The fridge will run in gas mode while traveling and while wild camping or at sites with no 240v electric supply •...
- Page 16 Close all other window blinds Pull to close windscreen blinds Slide from both sides Door blinds closed TV and DVD...
- Page 17 Below is a list of Miscellaneous charges that may be charged if the Motorhome is not returned in accordance with the returns Policy. Smoking in the Motorhome £300.00 Unauthorised Pets in the Motorhome £150.00 Pet hair left in the Motorhome £100.00.
