System Board Layout

13
1
2
3
4
5
1 PS/2 keyboard connector
2 PS/2 mouse connector
3 PCI slots
4 Keyboard controller
5 EISA slots
6 Video RAM
7 Video RAM upgrade socket

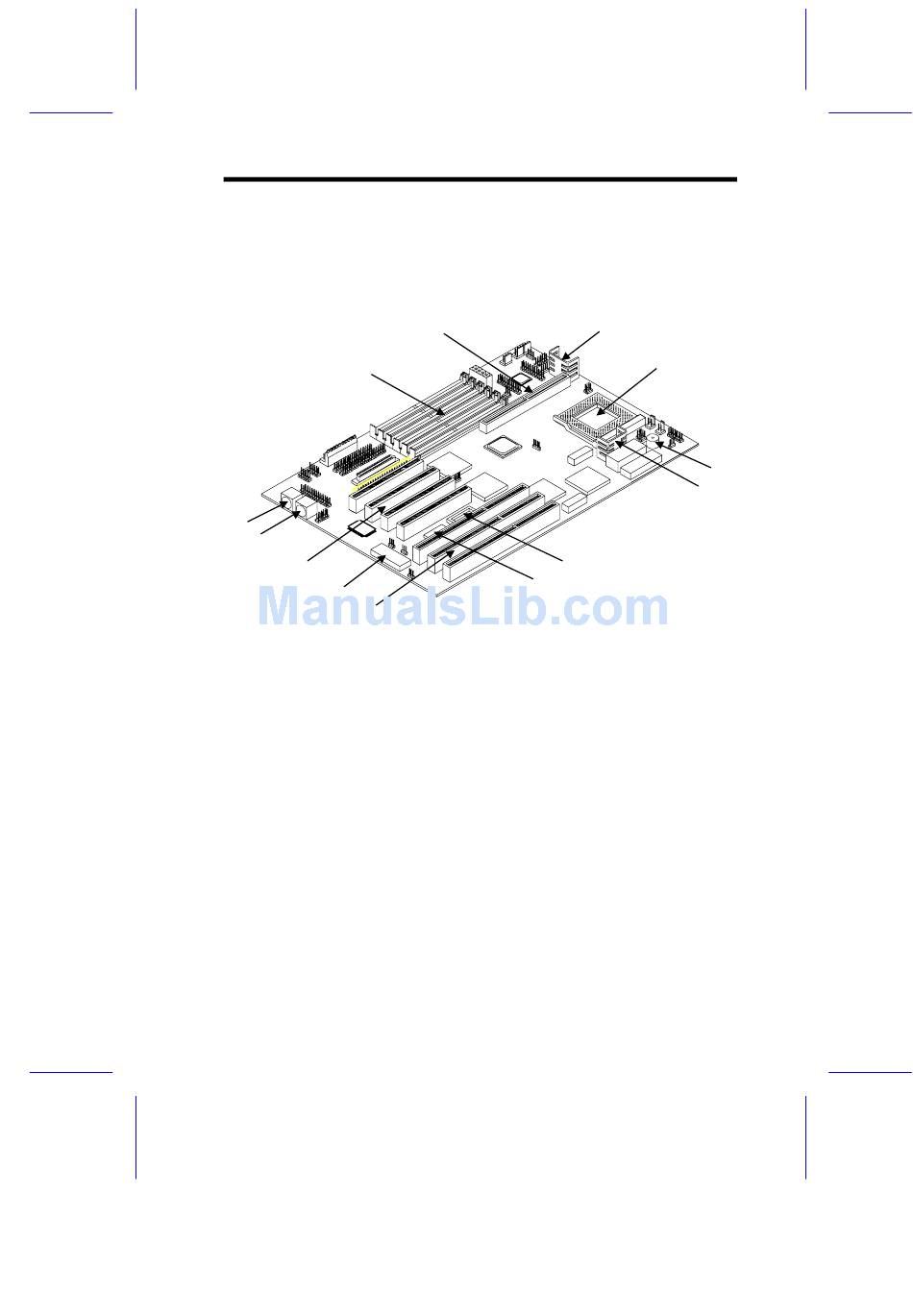

Figure 1-1 System Board Layout
System Board
12
7
6
8 CPU voltage regulator
9 Buzzer
10 CPU socket
11 CPU voltage regulator
12 Cache module socket
13 SIMM sockets
11
10
9
8
