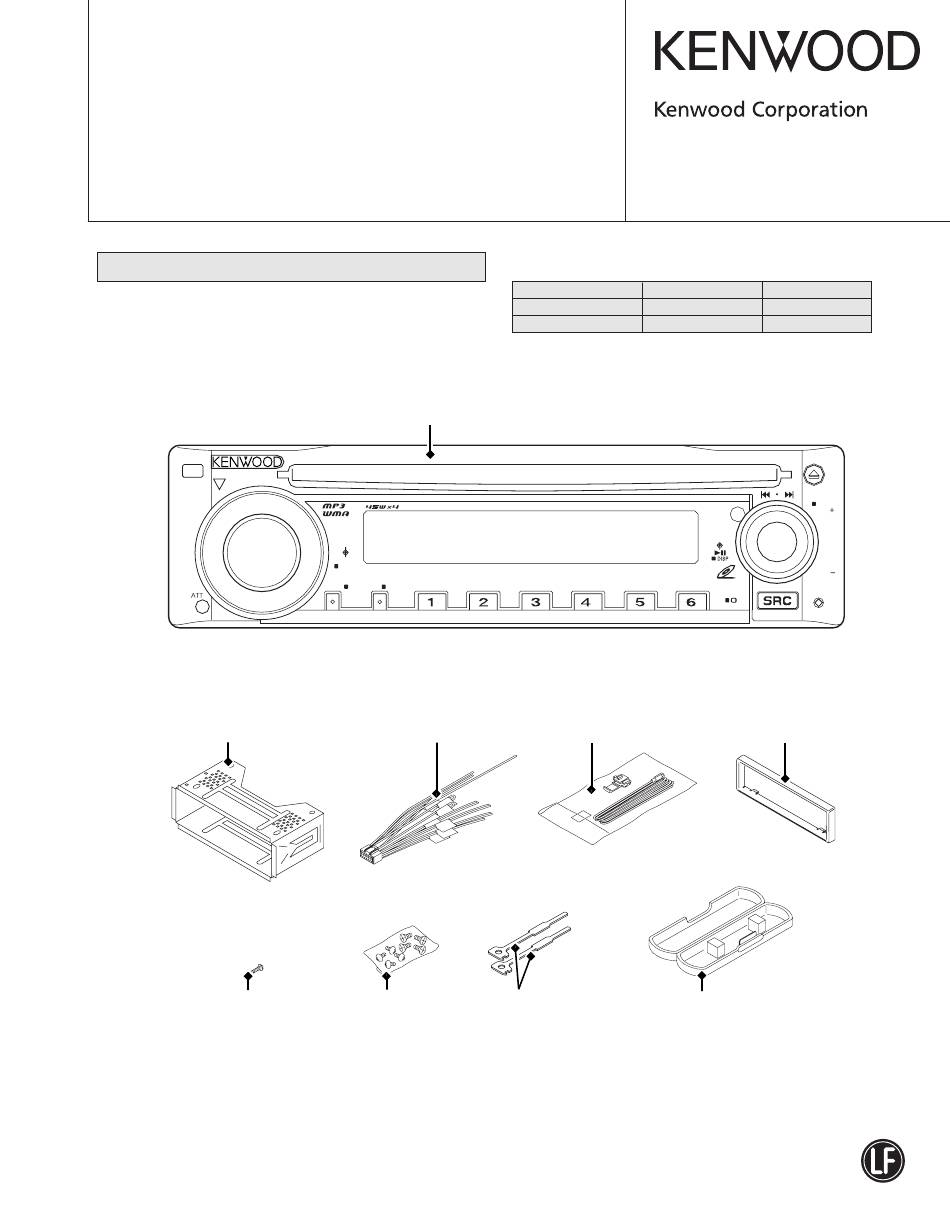

CD RECEIVER
KDC-MP333V
KDC-MP333VS
SERVICE MANUAL
CD MECHANISM EXTENSION CORD (24P) : W05-0934-00
Mounting hardware assy
(J21-9716-03)
Screw (4x16)
(N84-4016-48)
* Depends on the model. Refer to the parts list.

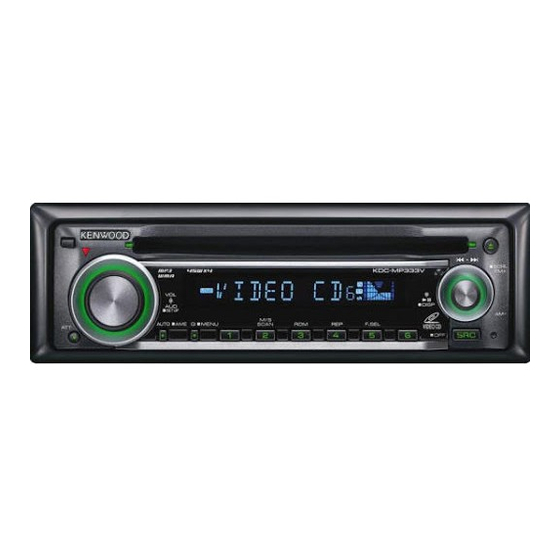

Panel assy
KDC-MP333V (A64-4075-02)
KDC-MP333VS (A64-4076-02)
VOL
AUD
SET UP
M/S
SCAN
AUTO
AME
Q
MENU
DC cord
(E30-6428-05)
Screw set
Lever
(N99-1757-05)
(D10-4589-04) x2
© 2006-8 PRINTED IN JAPAN
B53-0452-00 ( N ) 302
SPARE TDF PANEL
MAIN UNIT NAME
TDF PARTS No.
KDC-MP333V
Y33-2590-60
KDC-MP333VS
Y33-2590-61
KDC-MP333V
RDM
REP
F.SEL
Connecting cord assy
(E30-6610-05)
Plastic cabinet assy
(A02-2736-03)
This product uses Lead Free solder.
TDF NAME
TDF-MP333V
TDF-MP333VS
SCRL
FM
AM
VIDEO CD
FF
* Escutcheon
(B07-xxxx-xx)
