Philips UVCC090 Instructions

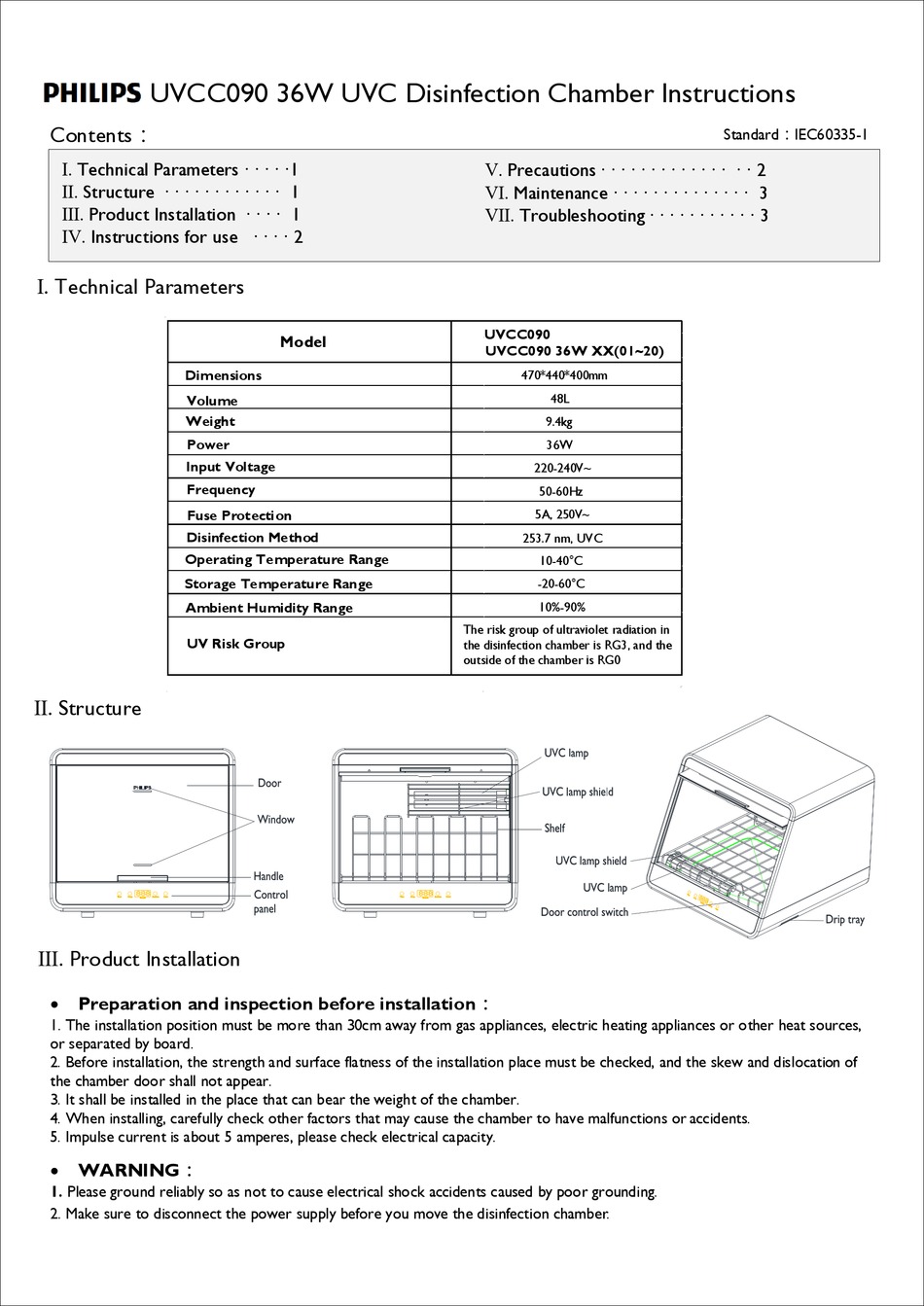

UVCC090 36W UVC Disinfection Chamber Instructions
Contents：
Ⅰ. Technical Parameters · · · · ·1
Ⅱ. Structure · · · · · · · · · · · · 1
Ⅲ. Product Installation · · · · 1
Ⅳ. Instructions for use · · · · 2
Ⅰ. Technical Parameters
Dimensions
Volume
Weight
Power
Input Voltage
Frequency
Fuse Protection
Disinfection Method
Operating Temperature Range
Storage Temperature Range
Ambient Humidity Range
UV Risk Group
Ⅱ. Structure
Ⅲ. Product Installation
• Preparation and inspection before installation：
1. The installation position must be more than 30cm away from gas appliances, electric heating appliances or other heat sources,
or separated by board.
2. Before installation, the strength and surface flatness of the installation place must be checked, and the skew and dislocation of
the chamber door shall not appear.
3. It shall be installed in the place that can bear the weight of the chamber.
4. When installing, carefully check other factors that may cause the chamber to have malfunctions or accidents.
5. Impulse current is about 5 amperes, please check electrical capacity.
• WARNING：
1. Please ground reliably so as not to cause electrical shock accidents caused by poor grounding.
2. Make sure to disconnect the power supply before you move the disinfection chamber.
Model
Ⅴ. Precautions · · · · · · · · · · · · · · · 2
Ⅵ. Maintenance · · · · · · · · · · · · · · 3
Ⅶ. Troubleshooting · · · · · · · · · · · 3
UVCC090
UVCC090 36W XX(01~20)
470*440*400mm
48L
9.4kg
36W
220-240V~
50-60Hz
5A, 250V~
253.7 nm, UVC
10-40°C
-20-60°C
10%-90%
The risk group of ultraviolet radiation in
the disinfection chamber is RG3, and the
outside of the chamber is RG0
Standard：IEC60335-1
