A6

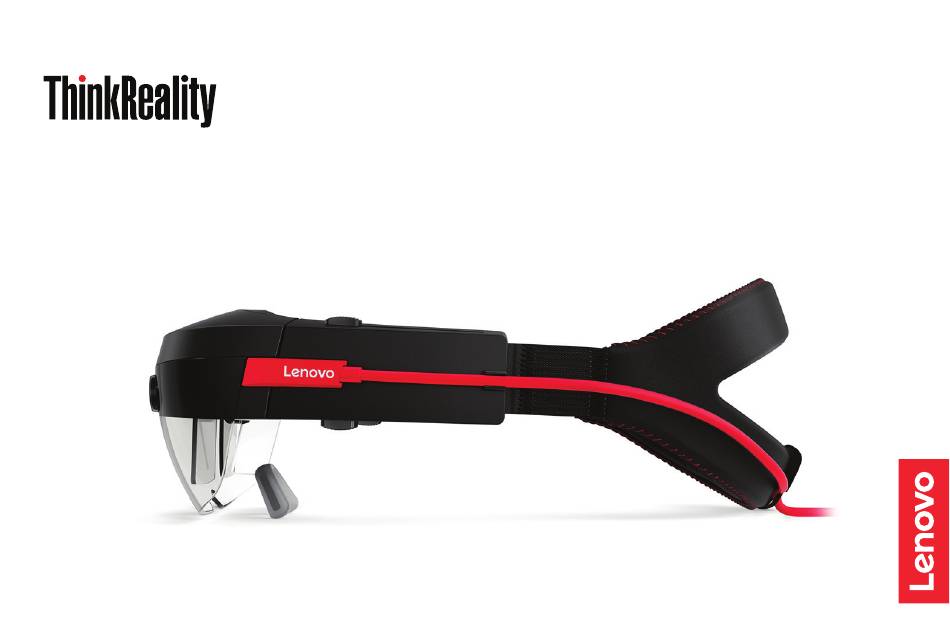

QUICK START GUIDE
www.lenovo.com

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkReality A6

Summary of Contents for Lenovo ThinkReality A6

  • Page 1 QUICK START GUIDE www.lenovo.com...

  • Page 2: What's In The Box

    What’s in the box Belt Clip Neck Lanyard Compute Pack Arm Band Cable Clip Headset Controller with Clip Two Nose Bridges for Di erent Sizes Clean Stick Quick Start Guide, Safety & Warranty Guide, Adapter USB Type-C Cable to USB Type-C Cable to Wiping Cloth Adapter Headset...

  • Page 3: Initial Setup

    Initial setup Use the BLACK USB Type-C cable to connect the compute pack to the adapter for charging. Use the USB Type-C cable to connect the compute pack to the headset.
  • Page 4 Identifying buttons and controls Sizing Tabs Sizing Tabs Headset Button Sizing Tabs Headset Button To adjust the tighteness of fit, squeeze Click to put the headset to sleep or wake then slide the sizing tabs on either sides it up. Press to re-center the app in the of the headset backward and forward field of view.
  • Page 5 Identifying buttons and controls Power Button with LED Power On/O Press when the device is o /on. The LED flashes green when powered on. It turns white when the device is fully booted, and flashes green as the device shuts down. Through device control dialog to power o .
  • Page 6 Identifying buttons and controls Navigation Buttons Selection Button Line Button Power On/O Controller Press and hold when the controller is on/o . Cursor Re-center Press when 2D display is on to re-center the cursor. Pairing Press and hold the line and circle buttons at the same time.
  • Page 7 Prepare to Start Please read the following information before using the device for the first time. WLAN Connection Please ensure you have the network password available to connect to your secure wireless network. You will need to navigate to the Settings menu to set up your wireless network. Safety and Comfort You may experience discomfort in the form of motion sickness, dizziness, headaches, and eye fatigue when using any augmented...

  • Page 8: Setting Up The Device

    Setting up the device Arm Band Neck Lanyard Belt Clip Step 1: Attaching the compute pack Use any of the three attachment accessories provided to secure the compute pack.
  • Page 9 Setting up the device Step 2: Adjusting the strap To adjust the strap length before putting the headset on your head, simultaneously squeeze and slide the sizing tabs along the adjustment slots while pulling the strap out.
  • Page 10 Setting up the device Front View Top View Step 3: Fitting the headset After placing the headset on, squeeze and slide the sizing tabs backward and forward along the adjustment slots until the headset fits comfortably.
  • Page 11 Wearing Tips Extended Nose Bridge Bottom View Your headset comes with two optional nose bridges for added comfort. To attach the nose bridge, gently insert it into the slot between the lens. The headset is compatible with some eyeglass frames. If you wear glasses, you may not need to use a nose bridge.
  • Page 12 Wearing Tips Pupil Display Lenses To maximize comfort and field of view, aim your eyes at the center of the display lenses.

  • Page 13: Completing Setup

    Completing setup Follow the onboarding guide on-device to complete the setup. You will learn to use gaze, gesture, controller voice command to navigate the system.

  • Page 14: Expanding Storage

    Card Back Cover Your ThinkReality A6 supports exFAT formatted microSD cards of up to 256 GB. To insert a microSD card, open the back cover of the compute pack and remove the battery. Insert the microSD card into the slot, as shown above, making sure that the gold pins are facing down and going in first.

  • Page 15: Calibrating The Controller

    Calibrating the controller Sometimes, the accuracy of the controller may be a ected after coming into close contact with strong magnets or connecting with the charging adapter. To calibrate the controller, move the controller in a figure of eight motion as shown above until the calibration is complete.

  • Page 16: Maintenance

    Maintenance To optimize the viewing experience, avoid touching the display lenses. When cleaning the lenses, first gently blow on the lens to remove any dust and particles on and around the display. Then using the clean stick or the microfiber cloth, gently wipe the lenses in a circular motion to remove any smudges.
  • Page 17 Avoid dark spaces and rooms with a lot of dark, shiny, or translucent surfaces such as mirrors or gauze curtains. Avoid spaces with a lot of motion. If an item has moved, gaze and move around it to help ThinkReality A6 learn its new position.
  • Page 18 V1.0_20190719 Printed in China © Copyright Lenovo 2019. F02-00546-01...
