xit404 Manta Series Assembly Instructions

SIGMA 50 LENS SIGMA 50 LENS
SLIDE FOCUS RING
ONTO LENS FROM
FRONT UNTIL IT STOPS
ROTATE
FOCUS
RING INTO
LOCKED
POSITION
DOT & SWITCH
DO NOT LINE UP
Revsion 2.0 - APR2013
SIGMA 50mm f/2.8 EX DG MACRO (CANON)
MANTA FOCUS RING ASSEMBLY INSTRUCTIONS
RED LATCH RED LATCH
GRAY/RED
FOCUS RING
FOCUS RING PROPERLY
LOCATED ON LENS
UNLOCKED UNLOCKED
POSITION POSITION
LENS WITH
FOCUS RING
ATTACHED
PUSH SLIP RING
ONTO LENS UNTIL
IT STOPS
ROTATE SLIP ROTATE SLIP
RING UNTIL RING UNTIL
DOT & SWITCH DOT & SWITCH
ARE LINED UP ARE LINED UP
Thank you for purchasing Xit 404's Sigma 50mm Focus Ring to use with
our Manta Gears. On the back is our warranty information to help you
prolong the life of this product.
This product is in our Manta Line. The advantage of the Manta Line of
Rings and Gears is that the parts are interchangeable. For example the
Manta Gear fits on all Manta Focus/Zoom Rings as well as our
Manta Teleconverter Extension Rings. This allows you to purchase one
gear that mates with a variety of lenses.
Assembling the Focus Ring to your Manta Gear

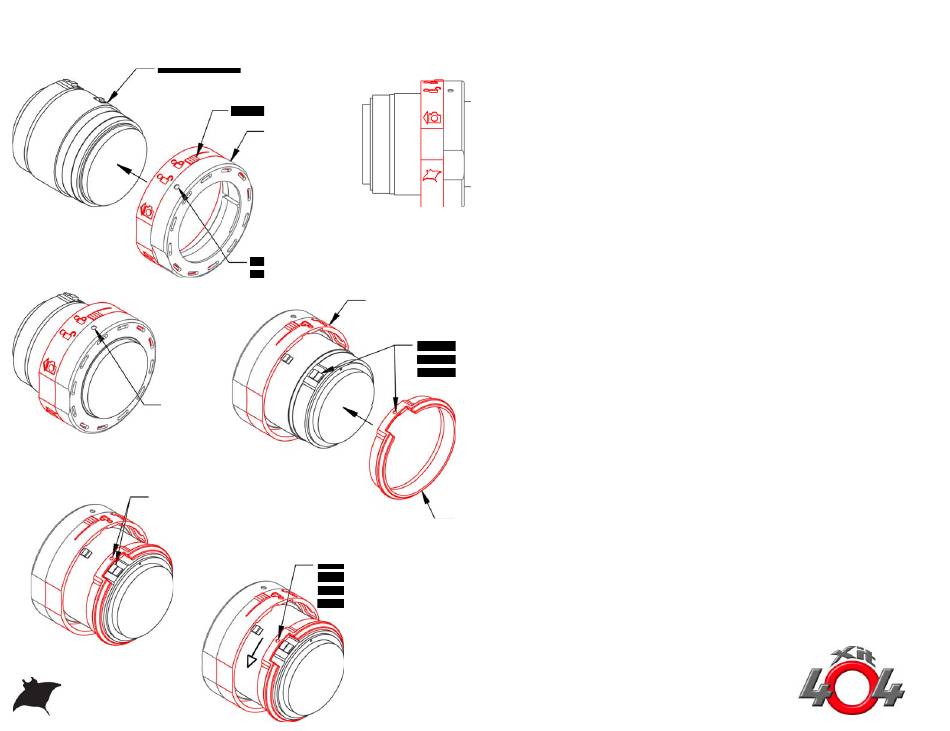

Look at the drawing to the left and note which end of the lens the Focus
Ring slides onto. Then follow the instructions below.
1. Make sure your Focus Ring is in the unlocked position. Slide the Focus
Ring onto your lens from the front. Push until it won't go any further.
2. Once on the lens, grasp the Focus Ring, then press and hold the red
latch on the Focus Ring while twisting the gray and red rings in opposite
directions until the white dots line up. (Note: the locked icon). The Focus
Ring is now locked onto the lens.
DOT AND DOT AND
3. Set your lens to 'manual' focus. Then orient the Slip Ring as you see in
SWITCH DO SWITCH DO
the drawing to your left, the white dot and switch do not line up. Slide the
NOT LINE UP NOT LINE UP
Slip ring on until it stops. Next twist the Slip Ring counter clockwise until
the white dot is in the center of the switch.
4. Slide the Manta Gear on from the back of the lens. Align the white
dot on the Manta Gear with the unpainted red dot on the Focus Ring.
Then press the two parts together. Once the the two parts are fully
mated, while holding the Focus Ring with one hand, and pressing
the red Manta Gear latch with thumb, twist the Gear until the white
dots line up (note: the locked icon). The Manta Gear is now locked
onto the Focus Ring.
SLIP
Disassembling the Focus Ring
RING
1. Remove the Manta Gear by pressing and holding the latch on the
Manta Gear. Then twist it until the white dot on the Manta Gear is
lined up with unpainted red dot on the Focus Ring (note: the
unlocked icon).
2. Pull the Manta Gear off the lens.
3. Remove the Focus Ring by reversing the steps 1 and 2. above The
white dot and the unpainted red dot will not be lined up after step 2,
allowing you to slide the Focus Ring off your lens.
PRODUCT CODE: GM2101SI
