Samtec CAT-HT-169-1620-11 Instruction Sheet

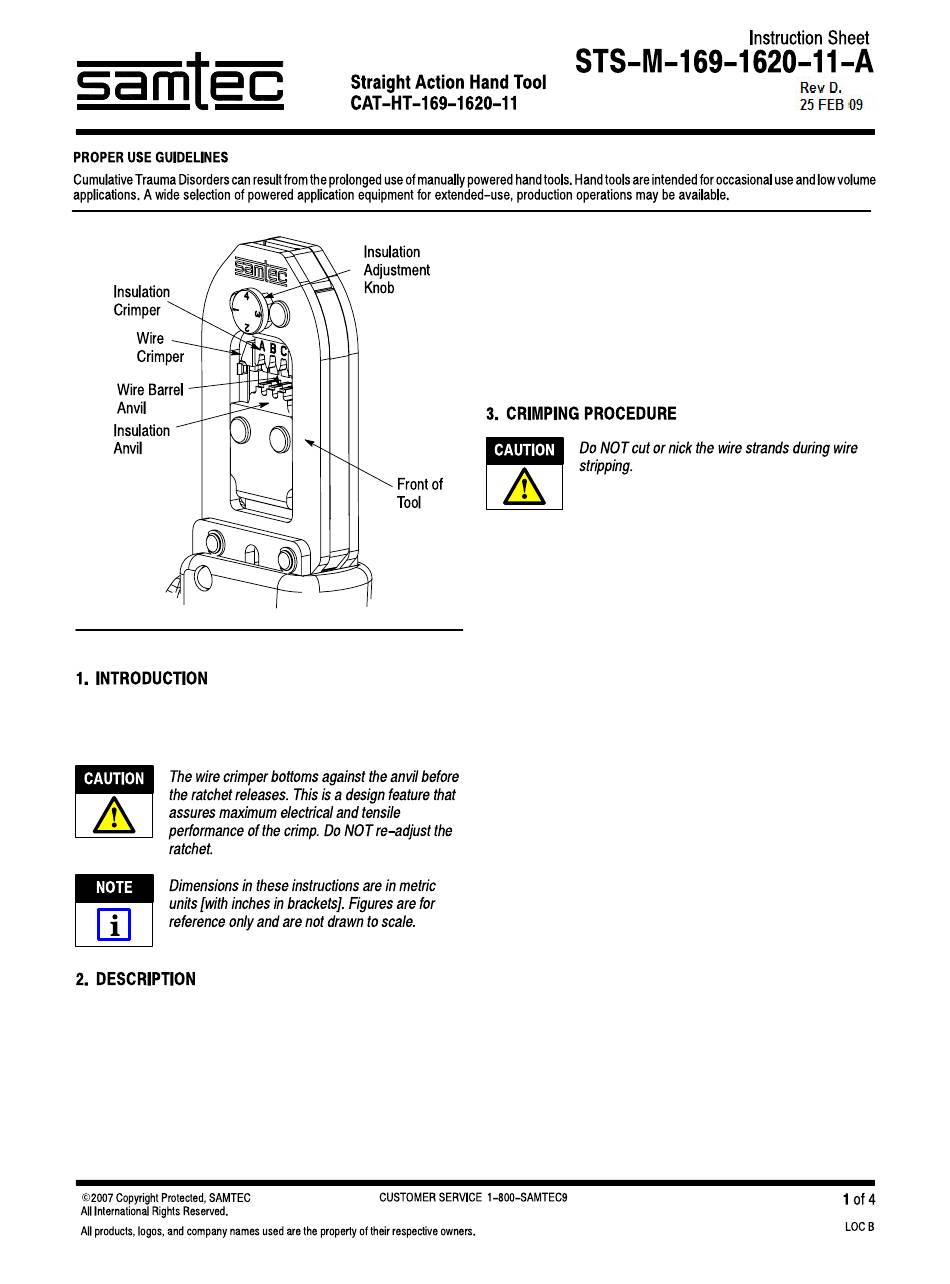

Figure 1
CAT–HT–169–1620–11 (straight–action hand tool)
was designed to crimp C 69 (IP
s.
The front of the tool, is marked with the tool part
number, wire size ranges, and crimp height
specifications.
The tool features a fixed die (crimper), a movable die
(anvil), a locator/insulation stop, and a ratchet. Many
tools feature an insulation adjustment knob which is
used to regulate the crimp height of the contact
insulation barrel during the crimping operation. The
locator/insulation stop positions the contact, and limits
the insertion distance of the stripped wire into the
contact. In use, the locator/insulation stop rests in the
locator slot of the contact (See Figures 1 and 2). The
ratchet assures full crimping of the contact. Once
engaged, the ratchet will not release until the dies
have been fully closed.
Refer to Figure 2 for wire preparation information
before applying the terminal.
1. Hold the tool so that the front side is facing you.
2. Ensure that the tool ratchet is released by
squeezing the tool handles and allowing them to
open fully .
3. Holding the contact by its mating portion and
looking straight into the crimp section, insert the
contact from the back of the tool into the
–Series)
appropriate crimp chamber.
4. Position the contact between the crimpers so
that the locator/insulation stop enters the slot in the
contact. The wire barrel should butt against the
locator/insulation stop. Refer to Figure 1.
5. Holding the contact in this position, squeeze the
tool handles together until the insulation anvil starts
entry into the insulation crimper (usually two
ratchet clicks). Do not deform the insulation barrel
or wire barrel.
6.
locator slot and into the wire barrel of the contact
until the insulation butts against the
locator/insulation stop.
7. Holding wire in place, crimp contact to the wire
by squeezing the tool handles together until the
ratchet releases.
8. Allow tool handles to open fully and remove the
crimped contact from the tool.
Insert a properly stripped wire through the
