Garmin GI 275 Installation Manual
Multi-function instrument
Hide thumbs
Also See for GI 275:
- Installation manual (531 pages) ,
- Pilot's manual (332 pages) ,
- Maintenance manual (120 pages)
Related Manuals for Garmin GI 275
Summary of Contents for Garmin GI 275

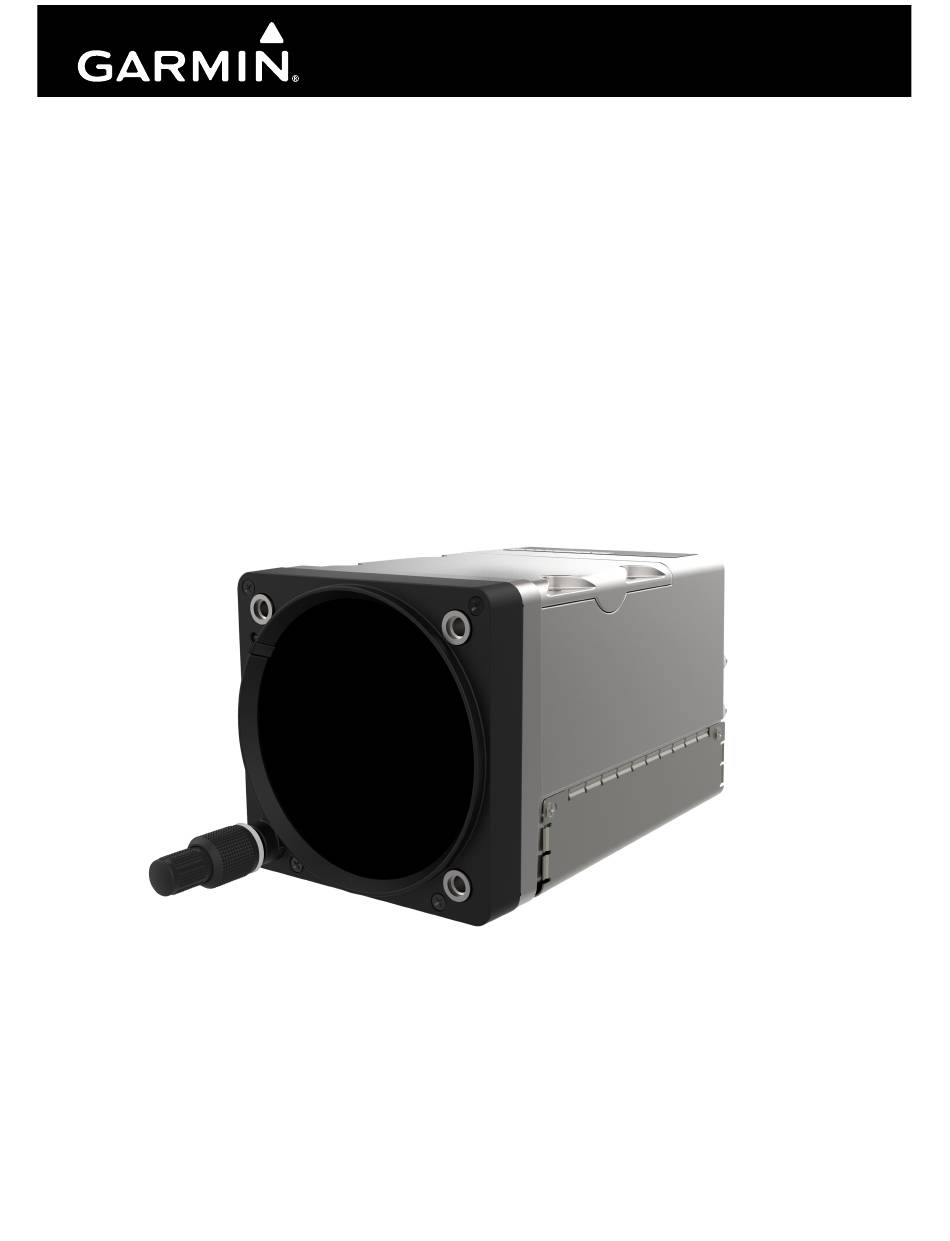

- Page 1 GI 275 Multi-Function Instrument Installation Manual 190-02246-00 November, 2019 Revision 1...
-
Page 2: Record Of Revisions
Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage... -
Page 3: Current Revision Description
California to cause cancer, birth defects, or reproductive harm. This Notice is being provided in accordance with California's Proposition 65. If you have any questions or would like additional information, please refer to our web site at www.garmin.com/prop65. WARNING Perchlorate material – Special handling may apply. Refer to www.dtsc.ca.gov/... - Page 4 CAUTION The GI 275 lens is coated with a special anti-reflective coating which is very sensitive to skin oils, waxes and abrasive cleaners. CLEANERS CONTAINING AMMONIA WILL HARM THE ANTI-REFLECTIVE COATING. It is very important to clean the lens using a clean, lint-free cloth and an eyeglass lens cleaner that is specified as safe for anti- reflective coatings.
-
Page 5: Software License Agreement
Software are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to reproduce, decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. - Page 6 Garmin. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Other trademarks and trade names are those of their respective owners. ChartView™ is a trademark of Jeppesen, Inc.
- Page 7 NOTE Access to additional operation, installation and safety information can be obtained at www.garmin.com. Users should obtain the most recent copy of the product manuals prior to equipment, configuration, installation and/or use.
- Page 9 NOTE Access to additional operation, installation and safety information can be obtained at www.garmin.com. Users should obtain the most recent copy of the product manuals prior to equipment, configuration, installation and/or use.
- Page 10 1.7.1 Controls The GI 275 features a 2.69" circular capacitive touchscreen and an Outer and Inner Knob in the lower left corner. The Inner Knob can be pushed. All operations are done with the Knobs or touchscreen. The touchscreen can be operated with bare fingers or gloves made for capacitive touchscreens.
- Page 11 Touch any map or chart with two fingers at the same time. Then, bring fingers together (pinch) or apart (stretch). Pinch & Stretch Stretch to zoom in and pinch to zoom out. Use these gestures to magnify map features or identify multiple objects in close proximity. 190-02246-00 GI 275 Installation Manual Rev. 1 Page 1-27...
- Page 12 Touching datafield buttons will either display a pop-up window from which a selection can be made, or display a keypad to supply the data. See the Data Entry discussion in this section for more information. Figure 1-4 Datafield Button 190-02246-00 GI 275 Installation Manual Rev. 1 Page 1-28...
-
Page 13: Page Menus
From the menu, touch and hold the Back Button. From the menu, push and hold the Inner Knob. On ADI, HSI, and EIS units with a half-screen menu, touch the screen anywhere off the menu. 190-02246-00 GI 275 Installation Manual Rev. 1 Page 1-29... -
Page 14: Menu Navigation
2. Turn the Inner Knob clockwise to increase the numerical value, or counterclockwise to decrease the numerical value. Backspace Entered Button data Back Enter Button Button Keypad Figure 1-6 Data Entry 190-02246-00 GI 275 Installation Manual Rev. 1 Page 1-30...
