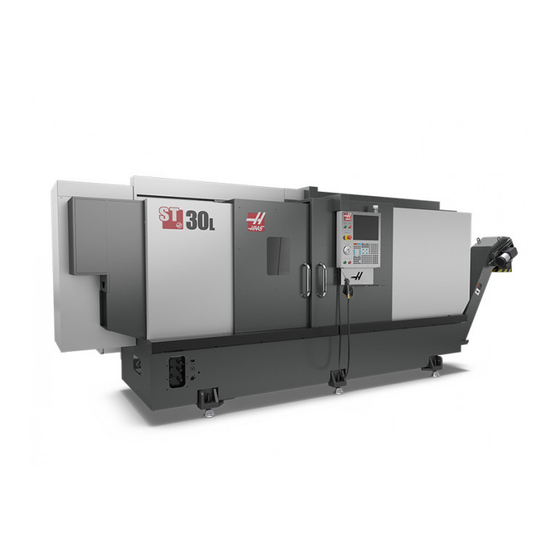

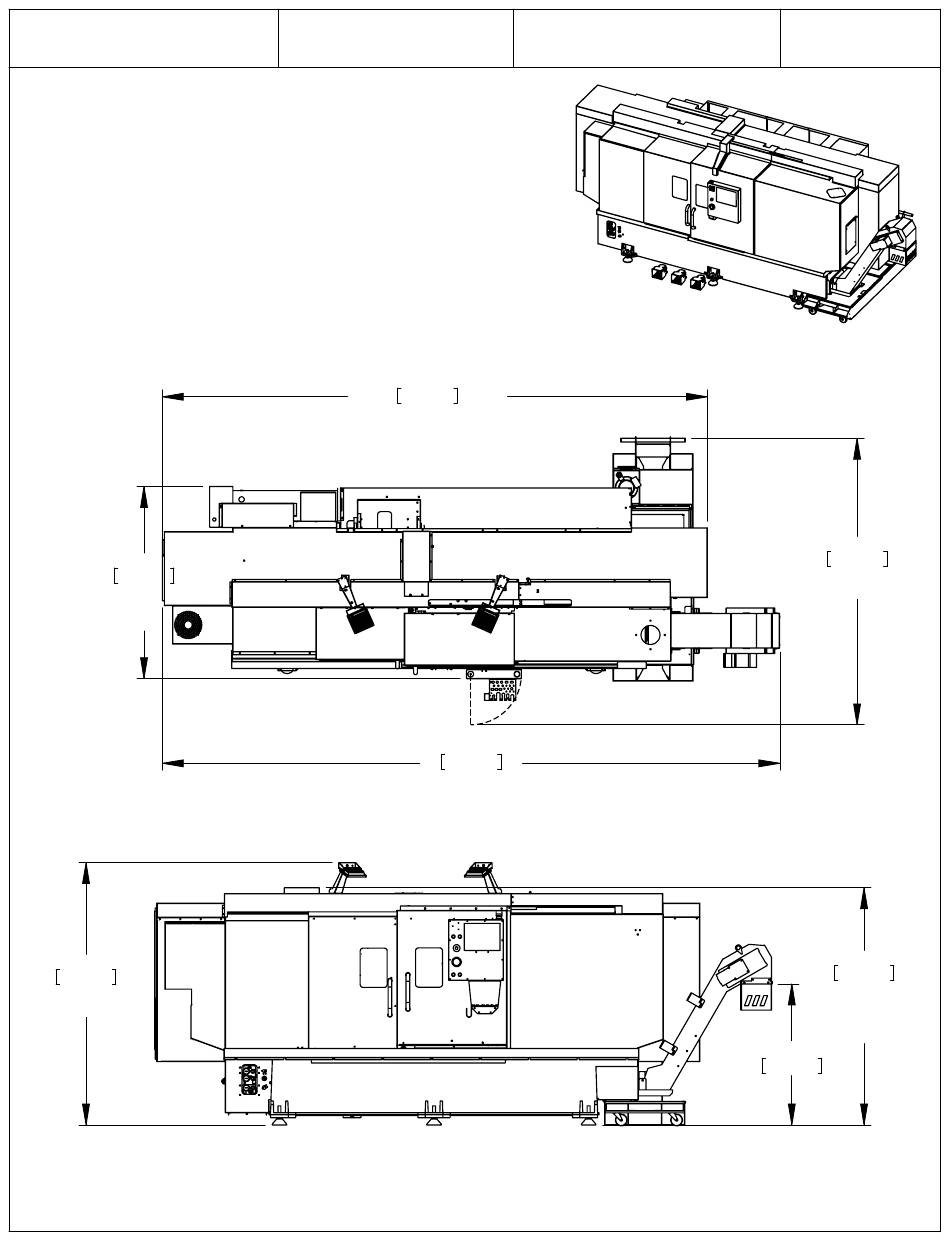

Machine Layout Drawing
66.0in
1677mm
Minimum
Transport
Depth
90.1in
2289mm
Operating
Height
All dimensions based on stackup of sheetmetal, subject to variation of 1/2" ( 13 mm)
Due to continual product improvements, machine dimensions are subject to change without notice
ST-30L 30LY 35L 35LY
187.2in
4756mm
Minimum Transport Width
212.2in
5389mm
Operating Width
Installation Dimensions
Page 1 of 10
98.4in
2500mm
Operating
Depth
81.5in
2070mm
Operating
Height
without
HIL
48.5in
1231mm
Advertisement
Summary of Contents for Haas Automation ST-30L
- Page 1 Installation Dimensions ST-30L 30LY 35L 35LY Machine Layout Drawing Page 1 of 10 187.2in 4756mm Minimum Transport Width 98.4in 66.0in 2500mm 1677mm Operating Depth Minimum Transport Depth 212.2in 5389mm Operating Width 81.5in 90.1in 2070mm 2289mm Operating Operating Height Height without 48.5in...
- Page 2 Utilities & Anchoring ST-30L 30LY 35L 35LY Machine Layout Drawing Page 2 of 10 Air & Power 26.5in Top View Rear View 672mm Power 58.1in 1476mm Power 17.1in 434mm 51.2in 66.4in 1301mm 1688mm Power Datum is the theoretical intersection of the 16.4in...
- Page 3 Breakdowns ST-30L 30LY 35L 35LY Machine Layout Drawing Page 3 of 10 Height Breakdown 60.3in 1530mm Max Door Opening 26.5in 33.8in 673mm 857mm Left Door Opening Right Door Opening 90.1in 2289mm Maximum Operating 79.4in Height 2018mm 48.5in 1231mm 3.5in 89mm 39.5in...
- Page 4 BMT65 Turret Layout ST-30L 30LY 35L 35LY Machine Layout Drawing Page 4 of 10 67.4in 67.4in [1712mm] [1712mm] 62.5in 62.5in [1587mm] [1587mm] 1.25in 3.7in 1.21in 9.4in 32mm 93mm 31mm 239mm 8.66in 2.5in 6.38in 220mm 62mm 162mm 1.25in 9.4in 32mm 239mm...
- Page 5 BOT Turret Layout ST-30L 30LY 35L 35LY Machine Layout Drawing Page 5 of 10 69.0in [1752mm] 62.5in [1587mm] 62.5in .1in .3in [1587mm] 8.7in 9.4in .4in 8.7in 9.4in 221mm 239mm 10mm 221mm 239mm 1.3in 1.3in 32mm 32mm BOT OD BOT ID / Drill / Bore (*) **...
- Page 6 Long Tool Relief ST-30L 30LY 35L 35LY Machine Layout Drawing Page 6 of 10 9.4in Turret shown at home position 239mm 5.1in X Axis 129mm Travel Minimum X Clearance Phantom lines indicate position in 3rd station* at bottom of X axis travel 9.4in...
- Page 7 ST-30L 30LY 35L 35LY Machine Layout Drawing Page 7 of 10 Tailstock 20.6in 523mm 13.6in 345mm 54.0in 1371mm Tailstock stroke WITH Steadyrest provision 61.0in 1549mm Tailstock stroke WITHOUT Steadyrest provision 75.5in 1918mm Spindle Face to Tailstock Face Tailstock Option (Note - Sub Spindle is not available on the "L" version) All dimensions based on stackup of sheetmetal, subject to variation of 1/2"...
- Page 8 ST-30L 30LY 35L 35LY Machine Layout Drawing Page 8 of 10 Steady Rest Tailstock at maximum forward travel with Steadyrest option 20.6in 523mm 13.75in 349.3mm Minimum distance Spindle face to front of steady rest base 12.1in 307mm 9.2in 234mm Minimum distance to standard chuck face 7.6in...
- Page 9 Spindle Nose Detail ST-30L 30LY 35L 35LY Machine Layout Drawing Page 9 of 10 May 4, 2018 Optional Spindle Extention Thread "A" Spindle Nose Detail BHC and Spindle Nose dimensions per American Standard Bulletin ASA B5.9 1960 The following dimensions should be used as a reference only.
