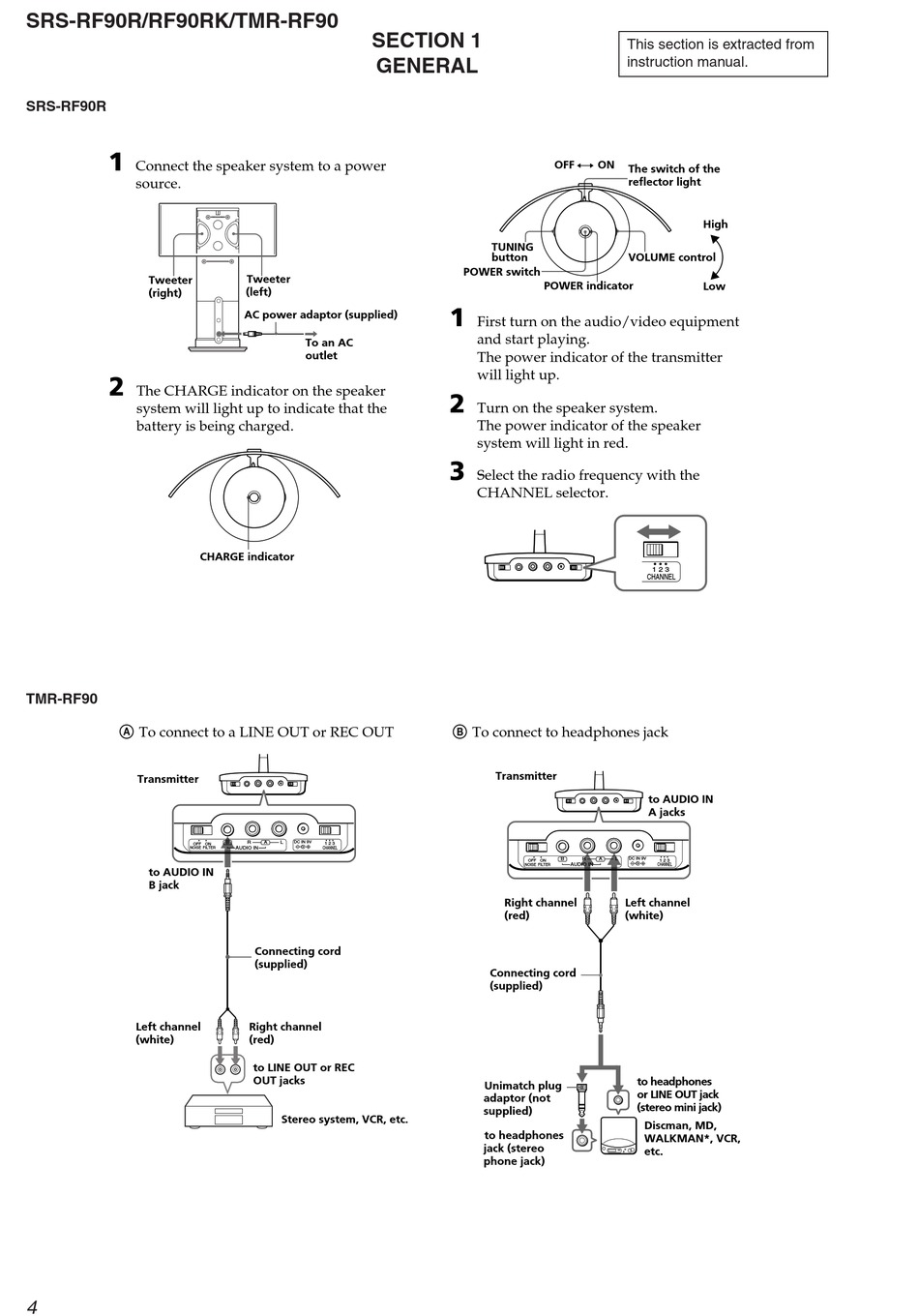

SRS-RF90R/RF90RK/TMR-RF90
SRS-RF90R
1
Connect the speaker system to a power
source.
Tweeter
(right)
2
The CHARGE indicator on the speaker
system will light up to indicate that the
battery is being charged.
CHARGE indicator
TMR-RF90
A To connect to a LINE OUT or REC OUT
Transmitter
OFF ON
NOISE
to AUDIO IN
B jack
Left channel
(white)
4
SECTION 1
Tweeter
(left)
AC power adaptor (supplied)
To an AC
outlet
B R A L DC IN 9V
1 2 3
AUDIO IN
FILTER CHANNEL
Connecting cord
(supplied)
Right channel
(red)
to LINE OUT or REC
OUT jacks
Stereo system, VCR, etc.

GENERAL

TUNING
button
POWER switch
POWER indicator
1
First turn on the audio/video equipment
and start playing.
The power indicator of the transmitter
will light up.
2
Turn on the speaker system.
The power indicator of the speaker
system will light in red.
3
Select the radio frequency with the
CHANNEL selector.
B To connect to headphones jack
Transmitter
OFF ON
NOISE FILTER
Right channel
(red)
Connecting cord
(supplied)
Unimatch plug
adaptor (not
supplied)
to headphones
jack (stereo
phone jack)
This section is extracted from
instruction manual.
OFF y ON
The switch of the
reflector light
High
VOLUME control
Low
1 2 3
CHANNEL
to AUDIO IN
A jacks
B R A L DC IN 9V
1 2 3
AUDIO IN CHANNEL
Left channel
(white)
to headphones
or LINE OUT jack
(stereo mini jack)
Discman, MD,
WALKMAN*, VCR,
etc.
