Hanil Combi 508 Quick Manual

Quick Guide
Display & Control Panel
Display Screen
Status of RPM / RCF / Time /
Rotor ID / ACC / DEC / Program
Setting Run Parameters
(RPM / RCF / Time / ACC / DEC)
Saving / Calling Up
a Program

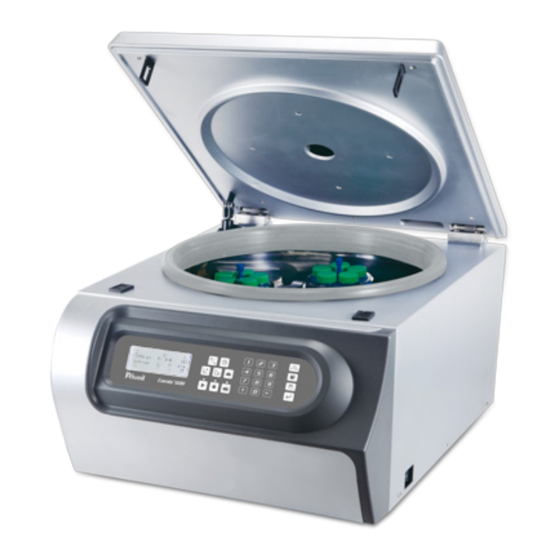

Combi 508
Cat. No. : CB-508
Setting Speed
Press once : Setting RPM
Press twice : Setting RCF
Combi 508
Start
Setting ACC / DEC Rate
ACC (0 ~ 9 steps, Max.9)
DEC (0 ~ 9 steps, Natural DEC.0)
Press a parameter
to be changed
Press the
Save or call button
Serial No.
Setting Time
Up to < 2 hr
Continuous run (00:00)
1
xg
4
7
±
Stop Lid Open
Setting the Rotor ID
manually
When rotor id is not identified
automatically, enter the rotor ID.
manually
Enter the desired value
on the keypad
Enter the desired program
number on the keypad
Installation Date
Max. RPM : 8,000 rpm
Max. RCF : 8,279 xg
View Settings
Verifying the setting parameters during
centrifugation
2 3
VIEW
SETTINGS
5 6
8 9
0
Program Save / Call
Saving a program
(up to 100)
Calling up a program
Press the
Enter button
Press the
Enter button
