322HD60
EN
Operator's manual
2-15

Advertisement

loading

Related Manuals for Husqvarna 322HD60

Summary of Contents for Husqvarna 322HD60

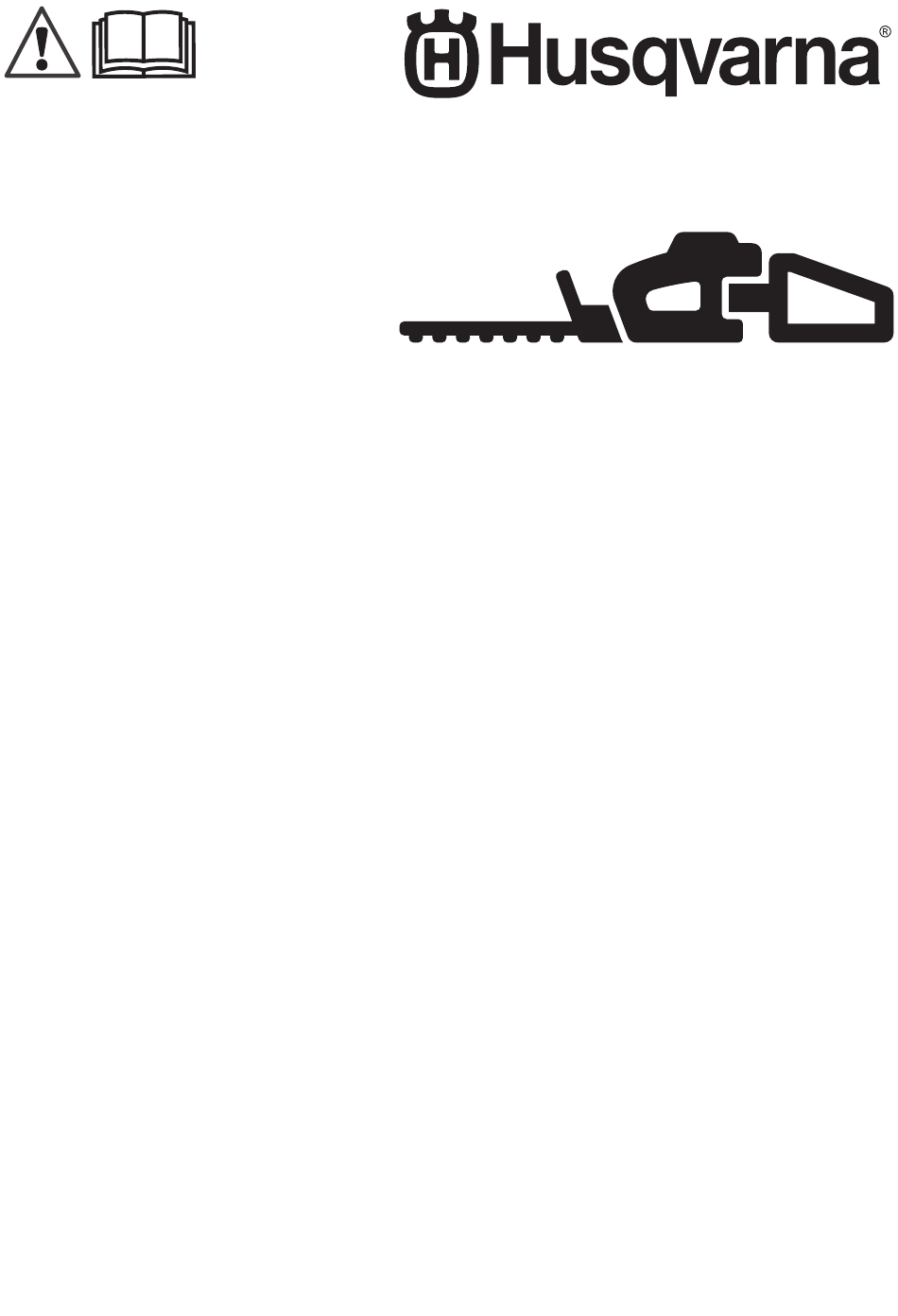

  • Page 1 322HD60 Operator's manual 2-15...

  • Page 2: Table Of Contents

    Contents Introduction..............2 Troubleshooting............12 Safety................3 Transportation, storage and disposal......13 Operation................ 7 Technical data.............. 13 Maintenance..............9 EC Declaration of Conformity........15 Introduction Product overview 1. Rear handle 18. Fuel tank 2. Throttle trigger lockout 19. Throttle trigger 3. Fuel tank cap 20.

  • Page 3: Safety

    Symbols on the product Noise emission to the environment refer to the European Community's Directive. The WARNING! This product is dangerous. emission of the product is specified in the Injury or death can occur to the operator or Technical data chapter and on the label. bystanders if the product is not used carefully and correctly.
  • Page 4 springloaded stop switch and can be started by low • Always use both hands to hold the product. Hold the speed and force on the starter handle, even small product in front of your body. children under some circumstances can produce the •...
  • Page 5 • Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent. To do a check of the throttle trigger lockout 1. Make sure that the throttle trigger lockout (A) and throttle trigger (B) move freely and that the return spring operates correctly.
  • Page 6 To do a check of the hand guard muffler with a catalytic converter decrease harmful exhaust gases. The hand guard prevents injuries from the blades. 1. Stop the engine. 1. Stop the engine. 2. Do a visual check for damage and deformation. 2.

  • Page 7: Operation

    This product has a two-stroke engine. • If Husqvarna two-stroke oil is not available, use a two-stroke oil of good quality for air-cooled engines. CAUTION: Incorrect type of fuel can result in Speak to your servicing dealer to select the correct engine damage.
  • Page 8 • Release the handle lock and turn the handle. CAUTION: Small errors can influence the ratio of the mixture drastically when you mix small quantities of fuel. Measure the quantity of oil carefully and make sure that you get the correct mixture. To start the product with a cold engine 1.

  • Page 9: Maintenance

    To operate the product 7. Push and release the throttle trigger to set the engine to idle speed. 1. Start near the ground and move the product up 8. Push the throttle trigger gradually to increase the along the hedge when you cut the sides. Make sure engine speed.
  • Page 10 Maintenance Before After 40 After 100 operation Tighten nuts and screws. Examine the starter and the starter rope for damages. Do a check that the screws that hold the blades together are correctly tightened. Clean the air filter. Clean more frequently if used in areas which has dust. Re- place if it is damaged.
  • Page 11 To lubricate the gear housing loss of engine power, wear to engine parts and more fuel consumption than usual. • Use Husqvarna special grease. Speak to your servicing dealer for more information about 1. Remove the air filter cover (A). recommended grease.

  • Page 12: Troubleshooting

    To examine the blades • Add the grease through the grease nipple. 1. Remove the cap on the gear housing. 2. Make sure that the blades move freely. Put the combination wrench in the gear housing and turn clockwise and counterclockwise. CAUTION: Do not fill the gear housing fully.

  • Page 13: Transportation, Storage And Disposal

    Always use approved containers for storage and transportation of fuel. • Empty the fuel before transportation or before long- term storage. Discard the fuel at an applicable disposal location. Technical data Technical data 322HD60 Engine Cylinder displacement, cm 21.7 1073 - 004 -...
  • Page 14 322HD60 Idle speed, rpm 2900 Recommended max speed, rpm 9000 Maximum engine power acc. to ISO 8893, kW/hp @ rpm 0.6/0.8 @ 7800 Catalytic converter muffler Ignition system Spark plug HQT-4 672201 Electrode gap, mm Fuel Fuel tank capacity, l/cm 0.3/300...

  • Page 15: Ec Declaration Of Conformity

    EC Declaration of Conformity Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares that the hedge trimmers Husqvarna 322HD60 with serial numbers dating from 2019 onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S DIRECTIVE:...
  • Page 16 Original instructions 1141925-38 2019-08-20...
