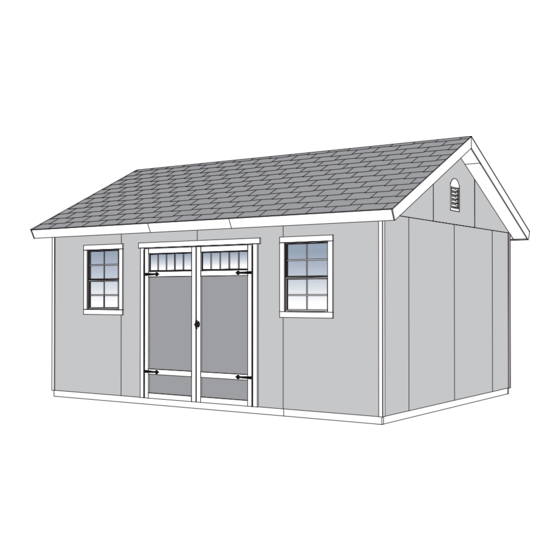

Yardline WESTMONT GABLE 12' x 16' Manual

365,7 x 487,7 cm
Hide thumbs
Table of Contents

Advertisement

Quick Links

16522
STOP!
STOP!
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-800-844-9273
or email:
customerservice@yardline.net
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

Advertisement

Table of Contents
loading

Related Manuals for Yardline WESTMONT GABLE 12' x 16'

Summary of Contents for Yardline WESTMONT GABLE 12' x 16'

  • Page 1 For immediate help with assembly or product information call our toll free number: 1-800-844-9273 or email: customerservice@yardline.net Our staff is ready to provide assistance April through October M-F 8:00 AM to 4:30 PM EST Saturday 8:30 AM to 4:30 PM EST...
  • Page 2 (This page intentionally left blank.)

  • Page 3: Before You Begin

    Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged. • ADDITIONAL MATERIALS You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities. - CUSTOMER SERVICE - 800-844-9273 Call: 1- email: customerservice@yardline.net...
  • Page 4 TOOLS Required Optional Phillips Tool Belt/ Utility Knife Screwdriver Nail Pouch Shingle Blades Drill / Driver Caulk Gun 1/8" Drill Bit Tin Snips 1/4" Drill Bit (for drip edge) 5/16" Drill Bit Paint Tools 1/2" Drill Bit Chalk Line #2 Philips Drive Bit Safety Glasses Hammer Nail Gun...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS • This shed does not include any floor or leveling materials. • See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your floor, as this will vary depending on your specific site. WOOD FLOOR FRAME MATERIAL REQUIRED: Use only wood treated for ground contact and fasteners approved for use with treated wood.

  • Page 6: Parts List

    PARTS IDENTIFICATION AND SIZES Part identification WOOD SIZE CONVERSION CHART letters are stamped on some parts. Nominal Board Size Actual Size 2" x 4"....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1" x 4"....3/4" x 3-1/2" (1,9 x 8,9 cm) 2" x 3"....1-1/2" x 2-1/2" (3,8 x 6,3 cm) Check these locations for 1"...
  • Page 7 PARTS LIST continued... 2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm) 1 x 4 x 48" (2,5 x 10,2 x 121,9 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) 2 x 4 x 48" (5,1 x 10,2 x 122 cm) 1 x 4 x 96"...

  • Page 8: Fasteners & Hardware

    FASTENERS & HARDWARE NAIL BOXES (not included) 3" (7,6 cm) BOXES 2" (5,1 cm) BOXES FASTENER/ HARDWARE BAG 1-1/2" (3,8 cm) x277 2" (5,1 cm) x189 3" (7,6 cm) 2" (5,0 cm) 1-5/8" (4,1 cm) (NOT ACTUAL SIZE) 3/8" x5-1/2" (1 cm x 14 cm) 3/4"...
  • Page 9 FLOOR LEVELING OPTIONS There are multiple ways to level your floor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS • 3" Screws angled into 4x4. • (2) at each point frame •...
  • Page 10 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Treated Sill Plate Caulk between sill plate and concrete. 3-1/2" (8,9 cm) 4" (10,2 cm) Building Size Actual Size 12'x 16' (365,7 x 487,7 cm) 144" x 192" (365,7 x 487,7 cm) 144" (365,7 cm) 192"...

  • Page 11: Parts Required

    FLOOR FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) Look for TREATED 2 x 4 x 141" (5,1 x 10,2 x 358,1 cm) Stamp 2 x 4 x 144" (5,1 x 10,2 x 365,7 cm) BEGIN Orient parts as shown on fl at surface.
  • Page 12 LEVEL AND SQUARE FLOOR FRAME Before attaching fl oor decking, it is important to level and square the fl oor frame. A level and square fl oor frame is required to correctly construct your shed. BEGIN See page 7 for the preferred fl oor leveling method. Use level and check the frame is level before applying fl oor panels.
  • Page 13 FLOOR PANELS PARTS REQUIRED: 2" (5,1 cm) 5/8 x 48 x 96" (1,6 x 121,9 x 243,8 cm) Ensure your floor frame is square by installing one panel and squaring frame. BEGIN Attach the 48 x 96" panel with the rough side up (painted-grid lines side) with the 48" edge and corner flush to the floor frame (Fig A).
  • Page 14 FLOOR PANELS PARTS REQUIRED: x258 2" (5,1 cm) 5/8 x 48 x 96" 5/8 x 47-7/8 x 48" (1,6 x 122 x 243,8 cm) (1,6 x 121,9 x 122 cm) Continue installing panels with rough side up (painted grid lines). Use grid lines on panel for 2"...
  • Page 15 IMPORTANT! Check that the floor frame is level after installing floor panels. Re-level if needed. • The floor should be used as a stable work surface for wall construction. • Organize your assembly procedure during the build process HINT: to avoid over-handling of the walls. GABLE END EAVE SIDE WALL WALL EAVE SIDE WALL (Your door location may vary.) GABLE END WALL...

  • Page 16: Rafter Assembly

    RAFTER ASSEMBLY PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm) It is very important to assemble your rafters using the following method for an even and fl at roof. You will build a rafter jig using the fl oor and two CLA parts as shown. ¸ BEGIN Secure one CLA fl ush to the fl oor deck using two 3" screws (Fig. A). Measure over 144-3/4"...
  • Page 17 RAFTER ASSEMBLY PARTS REQUIRED: x 14 x 154 2" (5,1 cm) 1-5/8" (4,1 cm) GUSSET 6 x 24" (15,2 x 61 cm) 2 x 4 x 88-11/16" (5,1 x 10,2 x 225,2 cm) ¸ BEGIN Place two rafters DNB into the jig as shown. Keep DNB firm against outside CLA's as shown (Fig.A) and push rafters tight to the middle.
  • Page 18 RAFTER ASSEMBLY PARTS REQUIRED: 2" (5,1 cm) 1-5/8" (4,1 cm) GUSSET 6 x 24" (15,2 x 61 cm) 2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm) Gable-end rafter assemblies only have one gusset. Repeat steps 1 through 2 to assemble two more rafters with only one gusset. 1/4"...
  • Page 19 DOOR HEADER ASSEMBLY PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,1 cm) 7/16 x 3 x 67" (1,1 x 7,6 x 170,1 cm) OSB BEGIN Center OSB on top of AM. Glue both sides of OSB Place another AM on top of OSB.
  • Page 20 STOP CHOOSE YOUR DOOR LOCATION AT THIS TIME AS YOU WILL ASSEMBLE YOUR DOOR WALL FIRST. NOTE: Install doors at opposite side of loft & shelf. OPTIONAL: DOOR LOCATED ON EAVE SIDE WALL (centered) EAVE SIDE WALL WITH DOOR CENTER: IF YOU CHOOSE TO LOCATE THE DOOR CENTERED GO TO Page 19 TO BEGIN BUILDING YOUR WALLS OPTIONAL: OPTIONAL:...
  • Page 21 EAVE SIDE WALL WITH DOOR CENTERED PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 8" (5,1 x 10,2 x 20,3 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 3" (7,6 cm) 3-7/16 x 4 x 67" (8,7 x 10,2 x 170,2 cm) PRE-ASSEMBLED DOOR HEADER 2 x 4 x 80"...
  • Page 22 EAVE SIDE WALL WITH DOOR CENTERED PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 68-1/2" (5 x 10,2 x 174 cm) HINT: For easier nailing stand on frame. Orient parts on edge on floor as shown. Use two 3" nails as shown. Two nails at each location.
  • Page 23 EAVE SIDE WALL WITH DOOR CENTERED PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE 48 x 84" BLOCK (121,9 x 213,4 cm) Ensure your wall frame is square by installing one panel and squaring frame. Place 48 x 84" panel onto wall frame flush to top of frame with primed side up as shown. Use the gauge block to mark the 3/4"...
  • Page 24 EAVE SIDE WALL WITH DOOR CENTERED PARTS REQUIRED: x136 2" (5,1 cm) 48 x 84" 48 x 84" 48 x 84" (121,9 x 213,4 cm) (121,9 x 213,4 cm) (121,9 x 213,4 cm) x1 LEFT 1 RIGHT Place 48" x 84" left door panel on frame as shown with primed side facing up. Nail using 2"...
  • Page 25 EAVE SIDE WALL WITH OFFSET DOOR (RIGHT SHOWN) PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 8" (5,1 x 10,2 x 20,3 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 3" (7,6 cm) 3-7/16 x 4 x 67" (8,7 x 10,2 x 170,2 cm) PRE-ASSEMBLED DOOR HEADER 2 x 4 x 80"...
  • Page 26 EAVE SIDE WALL WITH OFFSET DOOR (RIGHT SHOWN) PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 68-1/2" (5 x 10,2 x 174 cm) HINT: For easier nailing stand on frame. Orient parts on edge on floor as shown. Use two 3" nails as shown. Two nails at each location.
  • Page 27 EAVE SIDE WALL WITH OFFSET DOOR (RIGHT SHOWN) PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE 48 x 84" BLOCK (121,9 x 213,4 cm) Ensure your wall frame is square by installing one panel and squaring frame. Place 48 x 84" panel onto wall frame flush to top of frame with primed side up as shown. Use the gauge block to mark the 3/4"...
  • Page 28 EAVE SIDE WALL WITH OFFSET DOOR (RIGHT SHOWN) PARTS REQUIRED: x136 2" (5,1 cm) 48 x 84" 48 x 84" 48 x 84" (121,9 x 213,4 cm) (121,9 x 213,4 cm) (121,9 x 213,4 cm) x1 LEFT 1 RIGHT Place 48" x 84" panel on frame as shown with primed side facing up.
  • Page 29 GABLE END WALL WITH DOOR PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 8" (5,1 x 10,2 x 20,3 cm) 3" (7,6 cm) 2 x 4 x 44-1/2" (5,1 x 10,2 x 113,0 cm) 3-7/16 x 4 x 67" (8,7 x 10,2 x 170,2 cm) PRE-ASSEMBLED DOOR HEADER 2 x 4 x 80"...
  • Page 30 GABLE END WALL WITH DOOR PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 68-1/2" (5 x 10,2 x 174 cm) HINT: Orient parts on edge. Use two 3" nails at each location. For easier nailing stand on frame. 3" (7,6 cm) Nails Two nails at each location.
  • Page 31 GABLE END WALL WITH DOOR PARTS REQUIRED: 2" (5,1 cm) 48 x 84" (121,9 x 213,4 cm) 3/4" GAUGE x1 LEFT + 1 RIGHT BLOCK Place left 48" x 84" panel onto wall frame flush to top of Wall Frame with primed side up as shown. Use the gauge block to mark the 3/4" measurement on the wall stud. Secure panel with two 2"...
  • Page 32 GABLE END WALL WITH DOOR PARTS REQUIRED: 2" (5,1 cm) 23-7/8 x 84" (60,6 x 213,4 cm) Place left 23-7/8" x 84" panel onto wall frame fl ush to top of Wall Frame with primed side up as shown. Secure panel with two 2" nails 6" apart. Repeat STEP 6 to attach the right 23-7/8" x 84"...
  • Page 33 EAVE SIDE WALL - NO DOOR PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 2 x 4 x 80" (5,1 x 10,2 x 203,2 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) IF YOUR DOOR IS ON THE GABLE SIDE YOU WILL BUILD IDENTICAL WALLS.
  • Page 34 EAVE SIDE WALL - NO DOOR PARTS REQUIRED: 2" (5,1 cm) 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 84" (121,9 x 213,4 cm) Ensure your wall frame is square by installing one panel and squaring frame. Place 48 x 84" panel onto wall frame flush to top of frame with primed side up as shown. Use the gauge block to mark the 3/4"...
  • Page 35 EAVE SIDE WALL - NO DOOR PARTS REQUIRED: x165 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 84" (121,9 x 213,4 cm) Place 2nd 48" x 84" panel on frame as shown with primed side facing up. Nail using 2" nails 6" apart on edges and 12" apart inside panel. For squareness maintain fl ush and 3/4"...
  • Page 36 GABLE END WALL - NO DOOR - A PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 80" (5 x 10,2 x 203,2 cm) 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm) 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm) IF YOU CHOSE THE GABLE END WALL FOR DOOR LOCATION ASSEMBLE ONLY GABLE END WALL. (Pages 34 - 36) Then go to Page 40.
  • Page 37 GABLE END WALL - NO DOOR - A PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE 48 x 84" BLOCK (122 x 213,4 cm) Place 48" x 84" panel with primed side up onto frame flush at top and with a 3/4" gap on right side. Use the gauge block to mark the 3/4"...
  • Page 38 GABLE END WALL - NO DOOR - A PARTS REQUIRED: 2" (5,1 cm) 48 x 84" (122 x 213,4 cm) Place 2nd 48" x 84" panel primed side up and fl ush with installed 48" x 84" panel edge. Ensure panel is fl ush at top. Secure using 2"...
  • Page 39 GABLE END WALL - NO DOOR - B PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 80" (5 x 10,2 x 203,2 cm) 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm) 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm) BEGIN Orient parts on edge on floor.
  • Page 40 GABLE END WALL - NO DOOR - B PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE 48 x 84" BLOCK (122 x 213,4 cm) Place 48" x 84" panel with primed side up onto frame flush at top and with a 3/4" gap on right side. Use the gauge block to mark the 3/4"...
  • Page 41 GABLE END WALL - NO DOOR - B PARTS REQUIRED: x122 2" (5,1 cm) 48 x 84" 3/8 x 23-7/8 x 84" (122 x 213,4 cm) (1 x 60,6 x 213,4 cm) Place 2nd 48" x 84" panel with primed side up and fl ush with installed 48" x 84" panel edge. Ensure panel is fl ush at top.
  • Page 42 RIGHT EAVE WALL INSTALLATION PARTS REQUIRED (TEMPORARY): 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) 3" (7,6 cm) 2" (5,1 cm) BEGIN Stand right sidewall on fl oor. Center right side wall assembly on the 192" (487,7 cm) fl oor dimension. Use OO as a temporary brace.
  • Page 43 GABLE END WALL - A INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 1-1/2" (3,8 cm) 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) BEGIN 2" (3,8 cm) Flush Screw Stand gable end wall on fl oor. Flush It is important to secure the gable end wall Fig.
  • Page 44 LEFT EAVE WALL INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) BEGIN Stand left sidewall on fl oor. Center eave wall assembly on the Panel Flush 192" (487,7 cm) fl oor dimension. EAVE WALL OPTION Secure top and bottom of wall using one 2" screw into top and bottom plates (Fig A).
  • Page 45 LEFT EAVE WALL INSTALLATION PARTS REQUIRED: x12 -or- x16 3" (7,6 cm) x26 -or- x36 2" (5,1 cm) Nail lower edge of panels to fl oor frame using 2" nails 6" apart. Angle nail to hit fl oor frame (Fig. D). Secure eave wall bottom plates to fl oor using 3" nails (Fig. D). 3"...
  • Page 46 GABLE END-WALL - B or GABLE DOOR WALL INSTALLATION PARTS REQUIRED: 2" (5,1 cm) BEGIN Set second gable wall on fl oor and secure using one 2" screw on each side (Fig A). ENSURE TOP WALL FRAMES ARE FLUSH. Flush IF YOU CHOSE THE EAVE SIDE WALL FOR DOOR LOCATION, USE SECOND GABLE END WALL IN PLACE OF WALL SHOWN HERE.
  • Page 47 GABLE END-WALL - B or GABLE DOOR WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) x8 -or- x12 x18 -or- x28 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) Nail lower edge of panels to fl oor using 2" nails 6" apart. Angle nail to hit fl oor frame (Fig. C). 2"...
  • Page 48 RAFTERS PARTS REQUIRED: 3" (7,6 cm) End Rafter Two-Gusset Rafter One-Gusset Rafter ¸ BEGIN Secure rafters to top plate with two 3" screws above notch, as shown in Fig. A, B. Note the One Gusset Rafters at each end (Fig. C). Fig.
  • Page 49 GABLE PANELS PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 4 x 23-1/4" (5,1 x 10,2 x 59,0 cm) BEGIN You will build TWO assemblies. Orient UV on fl at as shown. Place left front gable panel as shown and secure using 1-1/2" nails. UV (on fl at) 1-1/2" (3,8 cm) Nails...
  • Page 50 GABLE LADDERS PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 88-11/16" (5,1 x 10,2 x 225,2 cm) 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm) BEGIN Orient parts as shown (Fig. A). Arrange, measure and mark locations of fi ve CLA as shown. Place ECA on top. Secure using 3"...
  • Page 51 GABLE UNITS PARTS REQUIRED: 1-5/8" (4,1 cm) x2 Gable Assemblies x2 Ladder Assemblies Orient gable and ladder assemblies as shown (Fig. E). You will build TWO complete assemblies. Ensure gable panels are fl ush at peak of ladder and fl ush along top edge of ladder assembly.
  • Page 52 GABLE UNITS PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) x2 Gable Units BEGIN Set gable unit on top plate. Secure with one 2" nail on each side as shown. BE SURE GABLE IS CENTERED ON WALL BEFORE NAILING. Continue nailing lower edge of panels into top plate using 2" nails 6" apart as shown On the inside, secure gable unit using 3"...
  • Page 53 ROOF PANELS PARTS REQUIRED: x434 2" (5,1 cm) 3/4" GAUGE BLOCK 40-5/8 x 48" 7/16 x 8-5/8 x 88-5/8" (103,1 x 121,9cm) (1,1 x 21,9 x 225,1 cm) Roof panels may cause serious injury until securely fastened. Note: all roof panels need to be installed with the rough side up (painted grid lines). BEGIN Attach an 8-5/8" x 88-5/8" panel 3/4"...
  • Page 54 ROOF PANELS PARTS REQUIRED: 40-5/8 x 96" (103,1 x 243,8 cm) Attach a 40-5/8" x 96" roof panel fl ush with the installed panel and fl ush with the rafter ends (Fig. B). Secure panel with two 2" nails in the corners. 3/4"...
  • Page 55 ROOF PANELS PARTS REQUIRED: 48 x 96" 48 x 47-7/8" (121,9 x 243,8 cm) (121,9 x 121,6 cm) Attach a 48" x 47-7/8" roof panel with a 3/4" measurement on the rafter (Fig A) and flush with the installed panels (Fig. D). Secure panel with two 2"...
  • Page 56 ROOF PANELS PARTS REQUIRED: 48 x 47-7/8" 7/16 x 8-5/8 x 88-5/8" (121,9 x 121,6 cm) (1,1 x 21,9 x 225,1 cm) Attach a 48" x 47-7/8" roof panel with a 3/4" measurement on the rafter (Fig. A) and fl ush with the installed panels (Fig. E). Secure panel with two 2" nails in the corners. Fig.
  • Page 57 GABLE SOFFITS PARTS REQUIRED: 2" (5,1 cm) 3/8 x 7-7/8 x 86-3/4" (1 x 20 x 220,3 cm) Ensure soffi t panels are fl ush at seam (Fig. B, Fig. D). BEGIN Position right 86-3/4" soffi t panel primed side down fl ush to front wall (Fig. A) and to center of gable assembly (Fig B).
  • Page 58 EAVE SIDE SOFFITS PARTS REQUIRED: 2" (5,1 cm) 3/8 x 5-7/8 x 47-7/8" (1 x 14,9 x 121,6 cm) 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,8 cm) Install soffi t panels fl ush at rafter ends (Fig. B) fl ush at seams and primed side facing down. BEGIN Position 72-3/4" soffi t panel fl ush to Fig.
  • Page 59 GABLE FASCIA PARTS REQUIRED: 2" (5,1 cm) Painted Red 3/8 x 4-3/4 x 89-1/4" (1 x 12,1 x 226,7 cm) Painted Green 3/8 x 4-3/4 x 89-1/4" (1 x 12,1 x 226,7 cm) Install fascia boards fl ush at roof panels, gable peak (Fig. A) and with primed side facing out. BEGIN Position 89-1/4" fascia board fl ush to peak and roof panels as shown (Fig. A, Fig B). Secure using 2"...
  • Page 60 EAVE SIDE FASCIA PARTS REQUIRED: 2" (5,1 cm) 3/8 x 4-3/4 x 47-7/8" (1 x 12,1 x 121,6 cm) 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm) Install fascia boards fl ush at rafter ends (Fig. B) fl ush at seams and primed side facing out. BEGIN Position 80-5/8" fascia board fl ush with roof panels (Fig. A), fl ush to gable fascia as shown. Secure using 2"...
  • Page 61 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) 1-1/4" (3,2 cm) 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Left Door Right Door BEGIN Orient parts as shown on flat surface. 3/8" offset is to top.
  • Page 62 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) BEGIN Attach temporary support OO as a ledger board flush under wall panels for doors to rest on, using three 3" screws (Fig. A). Fig.
  • Page 63 DOORS PARTS REQUIRED: 2" (5,1 cm) 64" Metal Threshold 19/32 x 3 x 26-5/8" (1,5 x 7,6 x 67,6 cm) 3/4" (1,9 cm) x11 3/4" (1,9 cm) Bagged seperately / special coating 19/32 x 3 x 72" (1,5 x 7,6 x 183 cm) Secure door trim from inside using 3/4"...
  • Page 64 DOORS PARTS REQUIRED: 3/4" (1,9 cm) Transom Window From inside of door, apply high quality exterior-grade caulk behind frame near edge before installing to seal window. Inside of door, position window in opening and ensure window is square with door edge. Use four screws to secure each window.
  • Page 65 DOOR STIFFENERS PARTS REQUIRED: 2" (5,1 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) BEGIN Center OO vertically on the left door in the door opening (Fig. A) overlapping 3/4" (1,9 cm) from the edge of door (Fig. B). Secure using (7) 2"...

  • Page 66: Door Hardware

    DOOR HARDWARE PARTS REQUIRED: 1/2" (13 mm) Drill Bit 1/4" (6 mm) Drill Bit 3/4" (1,9 cm) BEGIN Measure and mark location of hole on outside of right door as shown (Fig. A) . Pre-drill hole with 1/4" drill. Re-drill hole with 1/2" drill (Fig. A) . Keep drilled hole square to trim to avoid breaking edge of 1-1/4"...
  • Page 67 DOOR HARDWARE PARTS REQUIRED: 3-Point Door Locking Mechanism Handle (locking) with Screws 1-1/4” 1-1/4” Secure backplate with 1" screws and handle with 1-1/4" screws as shown. 1-1/4" Pan Head Screw Backplate Screw 1-1/4" Wood Screw 1-1/4" Pan Head Screw Pre drill for screws...

  • Page 68: Lower Bracket

    DOOR HARDWARE See following pages for mounting locations of brackets and plates. Plate Washer 1-1/4" Pan Head Screw 1-1/4" Pan Head UPPER BRACKET Screw (with offset) Orient bracket as shown. Washer 1-1/4" Pan Head Screw Washer LOWER BRACKET (with offset) Orient bracket as shown. 1-1/4" Pan Head Screw Washer Plate...

  • Page 69: Right Door

    DOOR HARDWARE TOP of Door 2-1/4" IMPORTANT! This rod to edge of door RIGHT DOOR LEFT DOOR Make sure rods are straight up and down when locating brackets. 2-1/4" BOTTOM of Door...
  • Page 70 DOOR HARDWARE Drill with 3/8" bit PLATE to 2" depth. FRAMING Align Plates with vertical rod points. Drill-thru with 3/8" drill bit to 2" depth into header and floor. VERTICAL RODS FLOOR PLATE...
  • Page 71 CORNER TRIM PARTS REQUIRED: 2" (5,1 cm) 3/8 x 1-3/4 x 82-1/2" (1 x 4,4 x 209,6 cm) 3/8 x 1-3/4 x 81-7/8" (1 x 4,4 x 208 cm) ¸ BEGIN Attach one 81-7/8" trim board fl ush under soffi t panel and against eave wall (Fig. A, B) using one 2"...
  • Page 72 SHELF PARTS REQUIRED: 2" (5,1 cm) 3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm) 2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm) NOTE: Install the shelf and loft on the gable wall farthest from the door location. BEGIN Secure AE to bracket panels using three 2"...
  • Page 73 SHELF PARTS REQUIRED: 2" (5,1 cm) 1-1/4" (3,2 cm) 7/16 x 11-7/8 x 47-7/8" (1,1 x 30,2 x 121,6 cm) 1 x 4 x 96" (2,5 x 10,2 x 243,8 cm) 1 x 4 x 48" (2,5 x 10,2 x 121,9 cm) Install shelf panels centered over shelf supports.
  • Page 74 LOFT PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 122 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) NOTE: Install the shelf and loft on the gable wall farthest from the door location. Always install the shelf and loft on wall with SEVEN (7) studs.
  • Page 75 LOFT PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 122 cm) (NOT ACTUAL SIZE) 3/8" x5-1/2" (1 cm x 14 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) Hex Bolt 3/8" (1 cm) Flat Washer Pre-Assembled Loft Joist 3/8"...
  • Page 76 LOFT PARTS REQUIRED: 2" (5,1 cm) 48" x 96" (112,4 x 243,8cm) 40-5/8" x 48" (103,2 x 121,9 cm) Install loft panels centered over loft joists. Secure with 2" nails 8" apart. There will be a gap of approximately 4" on either side. 7 - 1 / 4 "...
  • Page 77 STOP CHOOSE YOUR EAVE WALL WINDOW LOCATIONS AT THIS TIME. WINDOW LOCATION EXAMPLES EAVE WALL WINDOW FRAMING PARTS REQUIRED: 3" (7,6 cm) Window Kit See instructions packaged in your Window Kit for window and trim installation. BEGIN From inside, measure and mark locations of window framing 2x3's (included in window kit). Window framing 2x3's must be installed flush to panel and square with studs. Secure with 3" screws into each end as shown. 3"...
  • Page 78 EAVE WALL WINDOW CUTOUT PARTS REQUIRED: 3/8" (1,0 cm) Drill Bit Working from inside use a 3/8" drill bit to drill a hole through wall panel in each corner of window framing. Pre-drill hole 3/8" (1.0 cm) From outside, mark straight lines connecting the holes. Cut along lines using a saw.
  • Page 79 COLLAR TIES PARTS REQUIRED: 2" (5,1 cm) 1 x 4 x 84" (2,5 x 10,2 x 213,4 cm) BEGIN Position and level collar tie WTA on 3rd rafter from gable wall. HINT: For best appearance install collar tie on rafter facing away from door opening. Attach WTA using 2"...
  • Page 80 GABLE VENTS PARTS REQUIRED: #8 x 1" (2,5 cm) Pan Head Screws #15021 ¸ BEGIN Locate vents in the gable walls as shown. #8 x 1" (2,5 cm) Pan Head Screws FINISH You have fi nished installing your vents.
  • Page 81 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 82 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip 1" (1,3 cm) (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS. BEGIN Install first starter row upside down and color up with a 1" overhang at back and bottom of roof panel. Use (4) nails per shingle. Starter row must be straight and level all the way across with lower edge of roof deck.
  • Page 83 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 84 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 85 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Cut shingles into THREE pieces. Hint: Use cut-off pieces first. 2" 2" (5 cm) (5 cm 2" 2" 2"...
  • Page 86 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10 cm) Trim cap off fl ush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 87 WARRANTY REGISTRATION Please complete your warranty registration to properly validate your warranty. Register your product online at: www.OnlineWarranty.net LIMITED CONDITIONAL WARRANTY* Backyard Storage Solutions, LLC warrants the following: Every product is warranted from defects in workmanship and manufacturing for 1 year. All accessories, hardware and metal components are warranted for 2 years.
