各部の名称と働き 1 インジケーター 、 POWER スイッチ 前面 SIGNAL PROCESSING UNIT PFV-SP3300 POWER A POWER B POWER スイッチ REF IN 端子 AC IN 4 ブランクパネル 6 〜 端子 後面 -AC IN REF IN REF IN REMOTE STATUS AC IN 7 〜...
Page 9
仕様 電源電圧 AC 100〜 240 V、 50/60 Hz 消費電流 AC 100 V:最大 3.5 A AC 240 V:最大 1.5 A 供給可能電力 + 12 V DC 最大 18.7 A 使用温度 + 5 ℃〜+ 40℃ 性能保証温度 + 10 ℃〜+ 35℃ 保存温度 −20℃〜+ 60℃ 湿度 10〜 90%(結露なし) 最大外形寸法 440 ×132.4 × 550 mm (幅 / 高さ/ 奥行き) 重量 約 10 kg (別売り基板含まず) 入力端子 リモー ト S-BUS リ モー ト端子: BNC型(1) 同期入力...
Page 11
WARNING: THIS WARNING IS APPLICABLE FOR USA WARNING ONLY. To prevent fire or shock hazard, do not expose the unit to If used in USA, use the UL LISTED power cord specified rain or moisture. below. To avoid electrical shock, do not open the cabinet. Refer DO NOT USE ANY OTHER POWER CORD.
Table of Contents Overview ....................3(E) Features ..................... 3(E) Optional Boards ................3(E) Optional Accessories ................ 3(E) Locations and Functions of Parts ............4(E) Specifications ..................6(E) 2 (E)
When an optional board is installed in one of the slots, HKPF-SP021 O/E Converter the power is supplied from the PFV-SP3300 to the This board converts serial digital video optical signals board, and the functions of the board are activated.

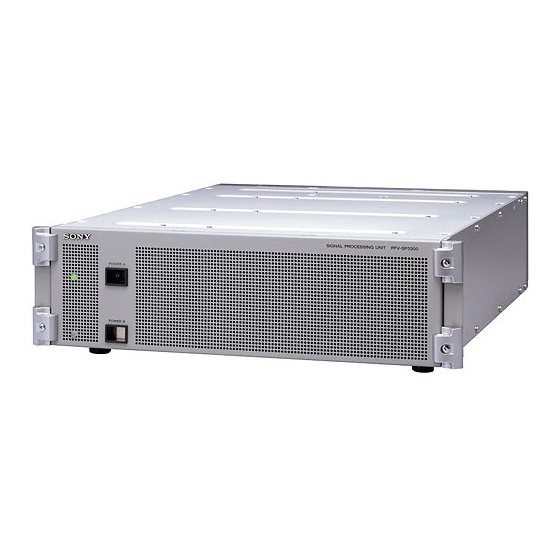

Locations and Functions of Parts Indicators A, B POWER A switch Front panel SIGNAL PROCESSING UNIT PFV-SP3300 POWER A POWER B POWER B switch REF IN connectors Cover plates ~AC IN A connector Rear panel -AC IN REF IN REF IN...
Page 15
0 REMOTE connector (BNC type) The connector is an S-BUS connector to be used for routing switcher control. When a board installed in this unit requires S-BUS communication with the PFV-SP3300 main frame, connect an S-BUS control line to this connector. 5 (E)
Specifications Power requirements 100 to 240 V AC, 50/60 Hz Status output STATUS OUT: Mini D-sub Current drain 100 V AC: max. 3.5 A 15-pin, female (1) 240 V AC: max. 1.5 A Supplied accessories Operation Manual (1) Peak inrush current (1) Power ON, current probe Installation Manual (1) method: 55A (240V), 15A...
Page 17
The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any...
