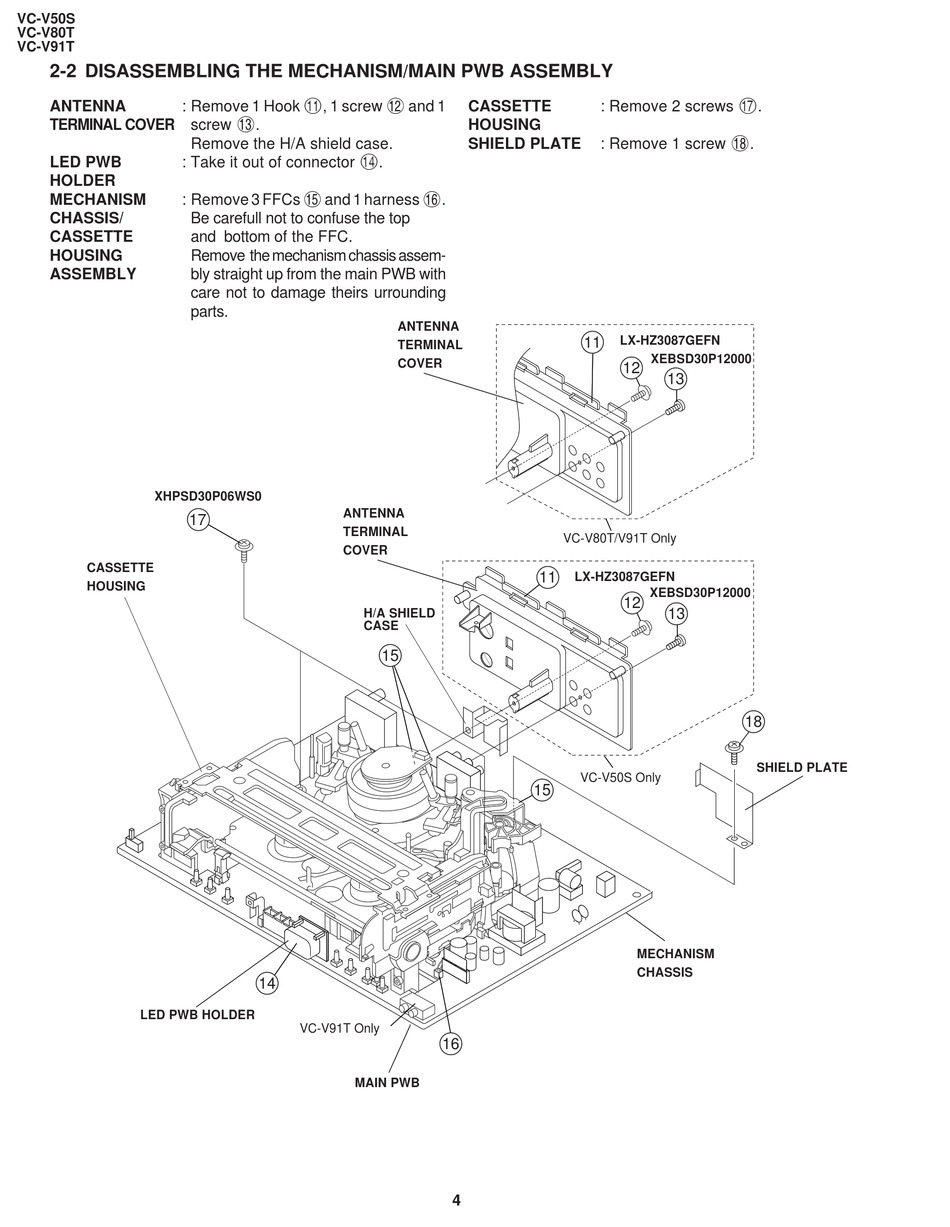

2-2 DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY

: Remove 1 Hook q, 1 screw w and 1
ANTENNA
TERMINAL COVER screw e.
Remove the H/A shield case.
: Take it out of connector r.
LED PWB
HOLDER
: Remove 3 FFCs t and 1 harness y.
MECHANISM
CHASSIS/ Be carefull not to confuse the top
CASSETTE and bottom of the FFC.
HOUSING Remove the mechanism chassis assem-
ASSEMBLY bly straight up from the main PWB with
care not to damage theirs urrounding
parts.
XHPSD30P06WS0
17
CASSETTE
HOUSING
LED PWB HOLDER
ANTENNA
TERMINAL
COVER
ANTENNA
TERMINAL
COVER
H/A SHIELD
CASE
15
14
VC-V91T Only
MAIN PWB
: Remove 2 screws u.
CASSETTE
HOUSING
: Remove 1 screw i.
SHIELD PLATE
11
VC-V80T/V91T Only
11
LX-HZ3087GEFN
VC-V50S Only
15
16
4
LX-HZ3087GEFN
XEBSD30P12000
12
13
XEBSD30P12000
12
13
18
SHIELD PLATE
MECHANISM
CHASSIS
