Summary of Contents for Kathrein MSK 30/L

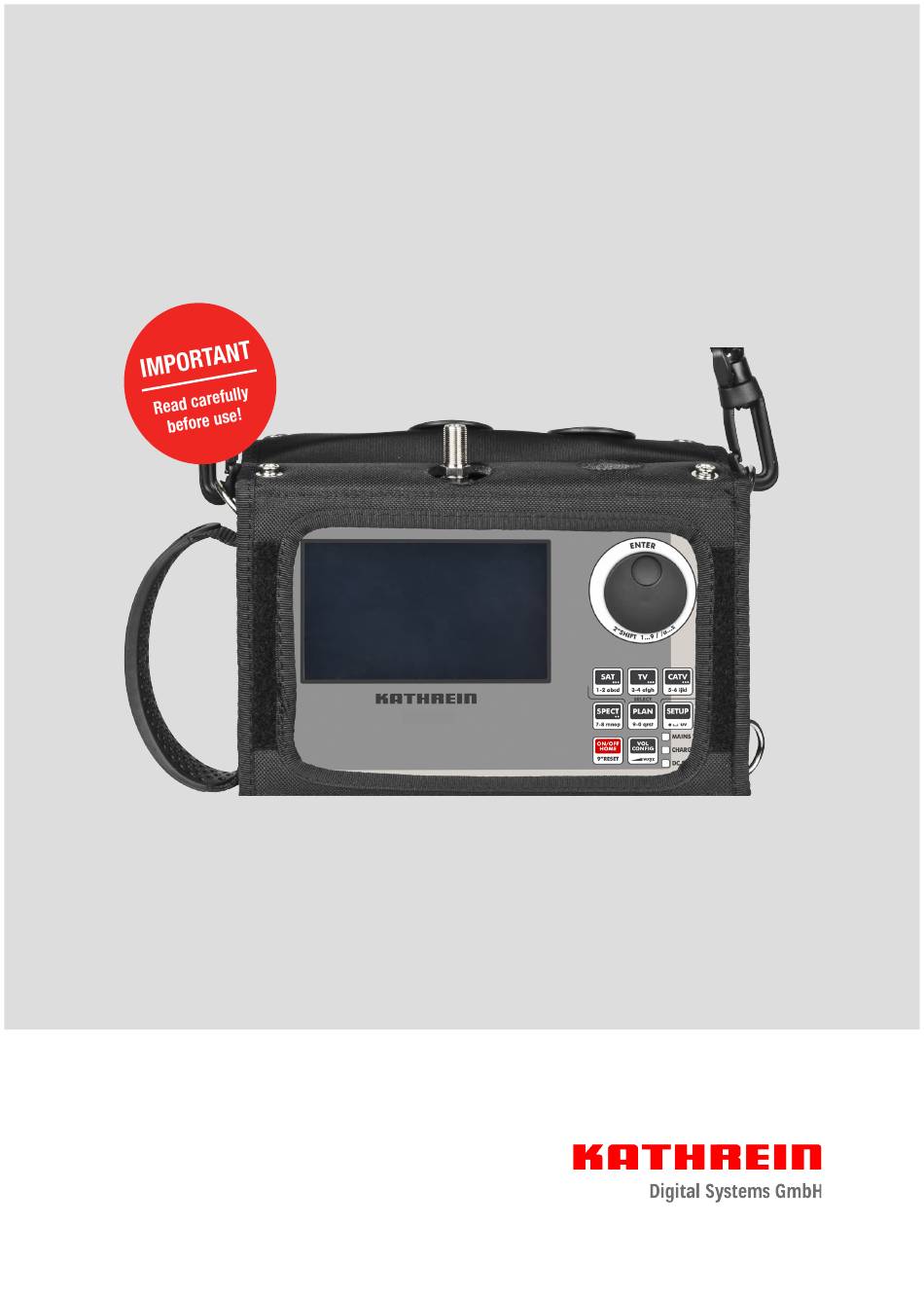

- Page 1 User guide MSK 30/L English MSK 30/L...
-
Page 2: Table Of Contents
Contents Intended Use Water protection Product description Changing measurement settings Touch screen display area Changing a setting value using the navigation wheel Changing a setting value using the navigation wheel and the drop-down menu Changing the frequency value using the numeric field Volume menu Changing volume Changing brightness... -
Page 3: Intended Use
Intended Use The test meter MSK 30/L is a measuring instrument to receive and measure SAT, TV and CATV sig- nals. It is also possible to use the meter to display digital signals. Water protection The test meter is not waterproof. Contact with water can damage printed circuit boards. In case of contact with water: ●... -
Page 4: Product Description
Product description Product description MSK 30/L Nr. Name Funktion ① Touch screen displays signals and enables operation ② HF SAT/TV input connects a SAT input plug 950-2.150 MHz connects a TV/CATV input plug 47-880 MHz ③ DC-RF IN turns on and off remote feed voltage ④... - Page 5 To operate the test meter, use buttons (⑧-⑪ and ⑯-⑱), the navigation wheel (⑥) and the touch screen (①). For more information about the meter operation as well as software and hardware reset, see the MSK 30/L Quick Start Guide. 1) Display of analogue TV signals not possible 5 of 28...
-
Page 6: Changing Measurement Settings
Changing measurement settings Changing measurement settings Touch screen display area ➀ Setting parameters and values ② Image display ③ Context sensitive menu ④ Transport stream information ⑤ Measurements Use the main menu on the touch screen or the buttons to call up the following functions: ●... -
Page 7: Changing A Setting Value Using The Navigation Wheel And The Drop-Down Menu
Changing a setting value using the naviga- tion wheel and the drop-down menu 1. Press the navigation wheel to activate the line with setting parameters. ➯ A setting parameter is active (marked in green). 2. Rotate the navigation wheel to select a desired setting parameter. 3. -
Page 8: Volume Menu
Volume menu 5. Having entered the values, rotate the navigation wheel to go to ENTER. 6. Press the navigation wheel to save the selection. ➯ The new frequency value is saved. You can switch between setting parameters and values as well as change a setting value by using the touch screen directly. -
Page 9: Activating And Deactivating Battery Saving Mode
3. Press the navigation wheel to select the brightness value. ➯ The brightness value is active (marked in green). 4. Rotate the navigation wheel to change the brightness value. 5. Press the navigation wheel to save the selection. ➯ The brightness value is saved. To select other menu items and values, take steps 1 –... -
Page 10: Changing Switch-Off Time In The Energy Saving Mode
Configuration menu Changing switch-off time in the energy saving mode 1. Press SETUP or take steps 1 – 3 to open CONFIGURATION MENU, see Changing brightness. ➯ The configuration menu opens and the METER menu item is active (marked in green). 2. -
Page 11: Changing The Tv Or Catv Measurement Range Using Discovery
Changing the TV or CATV measurement range using Discovery You can change the TV or CATV measurement range only if there are no custom or auto- matic memory maps created using MANUAL MEMORY or AUTOMEMORY. 1. Press SETUP or take steps 1 – 3 to open CONFIGURATION MENU, see Changing brightness. -
Page 12: Changing Scr User Frequency
Configuration menu Changing SCR user frequency MENU, see Changing brightness. 1. Press SETUP or take steps 1 – 3 to open CONFIGURATION ➯ The configuration menu opens and the METER menu item is active (marked in green). 2. Rotate the navigation wheel to select SCR. -
Page 13: Main Menu
(marked in green) using the touch screen and select a new value from the drop-down menu. For more information about the spectrum analyser, see the MSK 30/L Quick Start Guide. Channel list For more information about the channel list, see 7.2.1 Selecting a channel list and 7.3.1 Selecting a channel list as well as the MSK 30/L Quick Start Guide. -
Page 14: Service
6.4.2 Selecting the sound mode The MSK 30/L offers you a possibility to decode the Dolby AC3 Audio code. An upgrade to receive AC3 sound can be ordered via the order form on our homepage. ► In the full-screen mode, press... -
Page 15: Help
➯ The reception characteristics of a digital signal are deter- mined. After the search is completed, all three measuring fields display FOUND. For more information about the HELP function, see the MSK 30/L Quick Start Guide. Memory 6.6.1 Automemory TV Using the AUTOMEMORY TV function you can save a channel list in the TV mode. -
Page 16: Measuring Sat, Tv And Catv Signals
➯ The list with measuring results opens. 9. Rotate the navigation wheel to switch between the saved measuring results. Measuring SAT, TV and CATV signals For more information about measurements, see the MSK 30/L Quick Start Guide. General 7.1.1 Selecting a signal type 1. -
Page 17: Zooming In On Constellation Display
3. Rotate the navigation wheel or use the touch screen to select ZOOM. 4. Select a quadrant of the constellation. ➯ The selected quadrant is zoomed in. 7.1.3 Activating and deactivating full-screen mode For more information about the full-screen mode, see the MSK 30/L Quick Start Guide. 17 of 28... -
Page 18: Measuring Sat Signals
Measuring SAT, TV and CATV signals Measuring SAT signals Notice If there is a DC offset in the coax cable when measuring a SAT signal (DC RF LED is on), move the DC-RF In switch to prevent permanent damage on the test meter. 7.2.1 Selecting a channel list 1. -
Page 19: Measuring Tv And Catv Signals
You can select a satellite by using the touch screen directly. 1. Take steps 1 – 2, see Selecting a channel list. 2. Press a satellite. ➯ The satellite is selected (marked in green). 3. Press the navigation wheel or the button to save the selection and leave the SAT overview. - Page 20 Measuring SAT, TV and CATV signals You can select a channel list by using the touch screen directly. 1. Take steps 1 – 2, see Selecting a channel list. 2. Press a channel list. ➯ The channel list is selected (marked in green). 3.
-
Page 21: Battery
Battery General The provided battery is a lithium polymer battery of the highest quality. The capacity of the battery depends on the following conditions: ● LNB power consumption: single, dual or quad LNB. ● Outdoor temperature: at temperatures below 10 °C the capacity of the battery is reduced by 20 %. -
Page 22: Carrying Out A Battery Test
Battery Following elements provide information about the battery charging process: Power supply Test meter Meaning unit connected MAINS CHARGE The meter is being charged. The charging process is completed. flashes Abnormal battery temperature. The char- ging process has been interrupted and will reset automatically. -
Page 23: Retrieving Battery Test Results
6. Press the navigation wheel and select ON. ➯ The BATTERY TEST is active (marked in green). 7. Press the navigation wheel to save the selection. ➯ A series of pages opens. 8. Read instructions on every page. 9. Press NEXT to go to the next page. -
Page 24: Technical Data
Technical Data Technical Data Feature Unit Value Type MSK 30/L Order no. 2170000003 RF section Frequency range DVB-C/-T/-T2 47 - 880 Frequency range DVB-S/-S2 950 - 2150 Frequency resolution Cable/TV/FM: 50, Sat: 100 Transmission standards B/G, I, D/K, M, N Digital satellite receiver DVB-S/-S2... - Page 25 Feature Unit Value Data rate Services can be measured in Mbit/s Level measurement section Level measurement range dBµV 30 ... 95 Measurement accuracy Typ. ±1,5 Detector analogue TV: peak value; Sat/FM: mean value Detector digital Mean value Display Monitor 4.3" Touch TFT colour display (480 x 272 pixels) Sat finder (acoustical) Level-dependent whistling sound Power supply...
-
Page 26: Maintenance Instructions
Maintenance instructions Maintenance instructions To clean the meter, use a soft cloth dampened with a solution of water or alcohol. Never use aggressive chemical products, diluting agents and abrasives or rough cloths. Waste disposal instructions Electronic equipment is not domestic waste – in accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 on used electrical and electronic appliances, it must be dis- posed of properly. -
Page 27: Copyright And Licence Agreements
Copyright and licence agreements Manufactured under licence from Dolby Laboratories. Dolby and the double D symbol are registered trademarks of Dolby Laboratories. 27 of 28... - Page 28 9360000391/c/PM/0720/GB | Subject to change. KATHREIN Digital Systems GmbH | Anton-Kathrein-Str. 1 – 3 | 83022 Rosenheim | Germany | Phone +49 731 270 909 70...
