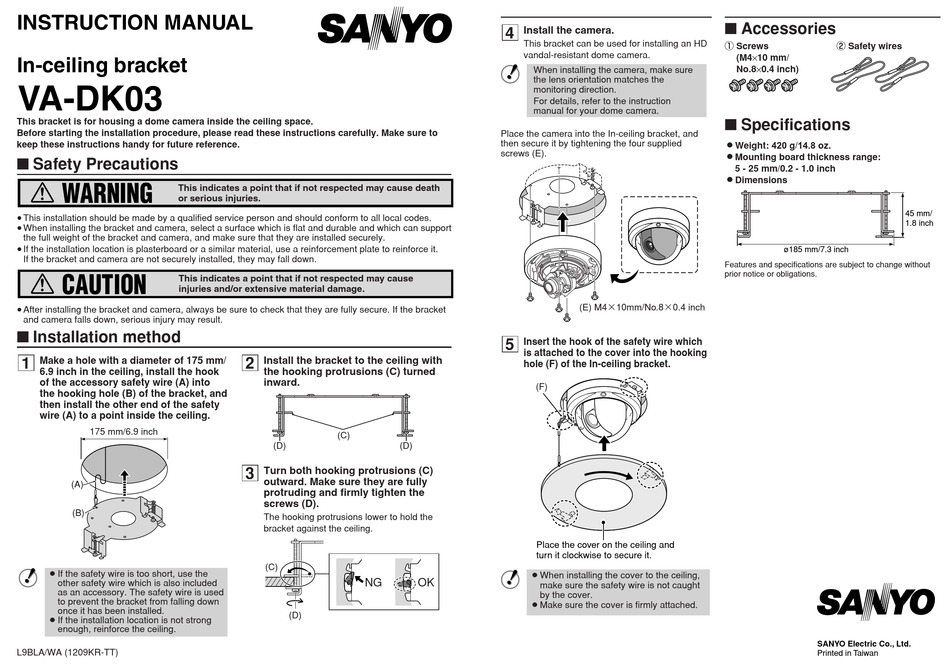

INSTRUCTION MANUAL
In-ceiling bracket
VA-DK03
This bracket is for housing a dome camera inside the ceiling space.
Before starting the installation procedure, please read these instructions carefully. Make sure to
keep these instructions handy for future reference.
■ Safety Precautions
WARNING
This indicates a point that if not respected may cause death
or serious injuries.
•
This installation should be made by a qualified service person and should conform to all local codes.
•
When installing the bracket and camera, select a surface which is flat and durable and which can support
the full weight of the bracket and camera, and make sure that they are installed securely.
•
If the installation location is plasterboard or a similar material, use a reinforcement plate to reinforce it.
If the bracket and camera are not securely installed, they may fall down.
CAUTION
This indicates a point that if not respected may cause
injuries and/or extensive material damage.
•
After installing the bracket and camera, always be sure to check that they are fully secure. If the bracket
and camera falls down, serious injury may result.
■ Installation method
Make a hole with a diameter of 175 mm/
1
6.9 inch in the ceiling, install the hook
of the accessory safety wire (A) into
the hooking hole (B) of the bracket, and
then install the other end of the safety
wire (A) to a point inside the ceiling.
175 mm/6.9 inch
(A)
(B)
¡If the safety wire is too short, use the
other safety wire which is also included
as an accessory. The safety wire is used
to prevent the bracket from falling down
once it has been installed.
¡If the installation location is not strong
enough, reinforce the ceiling.
L9BLA/WA (1209KR-TT)
Install the bracket to the ceiling with
2
the hooking protrusions (C) turned
inward.
(C)
(D) (D)
Turn both hooking protrusions (C)
3
outward. Make sure they are fully
protruding and firmly tighten the
screws (D).
The hooking protrusions lower to hold the
bracket against the ceiling.
(C)
NG OK
(D)
4 Install the camera.
This bracket can be used for installing an HD
vandal-resistant dome camera.
When installing the camera, make sure
the lens orientation matches the
monitoring direction.
For details, refer to the instruction
manual for your dome camera.
Place the camera into the In-ceiling bracket, and
then secure it by tightening the four supplied
screws (E).
(E) M4×10mm/No.8×0.4 inch
5 Insert the hook of the safety wire which
is attached to the cover into the hooking
hole (F) of the In-ceiling bracket.
(F)
Place the cover on the ceiling and
turn it clockwise to secure it.
¡When installing the cover to the ceiling,
make sure the safety wire is not caught
by the cover.
¡Make sure the cover is firmly attached.
■ Accessories
① Screws ② Safety wires
(M4×10 mm/
No.8×0.4 inch)
■ Specifications
¡ Weight: 420 g/14.8 oz.
¡
Mounting board thickness range:
5 - 25 mm/0.2 - 1.0 inch
¡
Dimensions
ø185 mm/7.3 inch
Features and specifications are subject to change without
prior notice or obligations.
SANYO Electric Co., Ltd.
Printed in Taiwan
45 mm/
1.8 inch
