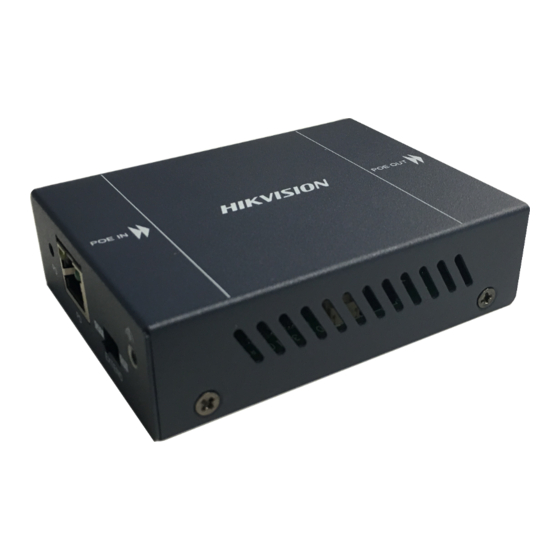

PoE Video Repeater
User Manual
User Manual
COPYRIGHT © 2018 Hangzhou Hikvision Digital
Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others,
wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its
subsidiaries (hereinafter referred to be "Hikvision").
This user manual (hereinafter referred to be "the
Manual") cannot be reproduced, changed, translated,
or distributed, partially or wholly, by any means,
without the prior written permission of Hikvision.
Unless otherwise stipulated, Hikvision does not make
any warranties, guarantees or representations, express
or implied, regarding to the Manual.
About This Manual
This Manual is applicable to DS-1H34 Series PoE Video
Repeater.
The Manual includes instructions for using and
managing the product. Pictures, charts, images and all
other information hereinafter are for description and
explanation only. The information contained in the
Manual is subject to change, without notice, due to
firmware updates or other reasons. Please find the
latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of
professionals.
Advertisement
Table of Contents
Related Manuals for HIKVISION DS-1H34 Series
Summary of Contents for HIKVISION DS-1H34 Series
- Page 1 Manual. About This Manual This Manual is applicable to DS-1H34 Series PoE Video Repeater. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only.
- Page 2 CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
-
Page 3: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Safety Instruction
Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. -
Page 5: Applicable Models
M3X10 or above. Applicable Models This manual is applicable to the models listed in the following table. Series Model DS-1H34-0101P DS-1H34 Series PoE Video Repeater DS-1H34-0102P Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol... -
Page 6: Typical Application
1 Introduction 1.1 Overview The DS-1H34 Series PoE Video Repeater is used for the network connection of the devices in the security surveillance project. The video repeater can be cooperated with the IP camera and access layer PoE switch to extend the transmission distance of network... -
Page 7: Input Panel
1.3.2 100 Mbps Mode Cascade (with EXTEND Mode Off) Refer to Figure 1-2 for the 100 Mbps mode cascade. Figure 1-2 100 Mbps Mode Cascade The power of the IP camera should be lower than 1.3.3 10 Mbps Mode (with EXTEND Mode On) Refer to Figure 1-3 for the 100 Mbps mode. - Page 8 Table 2-1 Description of Input Panel Serial Item Description Lights in green when PSE is Indicator connected. Input network interface: 10/100BaseT(X) and IEEE 802.3at standard of PD (Power Device) connection. RJ45 The indicator lights in yellow Interface when there is no data transmission and flashes in yellow when there is data transmission when PSE is connected.
- Page 9 10/100BaseT(X) and IEEE 802.3af Interface standard of PSE output. Output network interface 2: RJ45 10/100BaseT(X) and IEEE 802.3af Interface standard of PSE output. 3 Dimension Refer to Figure 3-1 for the dimension of DS-1H34 series PoE video repeater. Figure 3-1 Dimension...
- Page 10 4 Appendix 4.1 Specifications Model DS-1H34-0101P DS-1H34-0102P 1-ch 10/100BaseT(X) and IEEE 802.3at Input standard of PD connection. 1-ch 2-ch 10/100BaseT(X) 10/100BaseT(X) and IEEE 802.3af/at and IEEE 802.3af Output standard of PSE standard of PSE output. outputs. MTBF (Mean Time 100000 hours Between Failure) Consumption...
