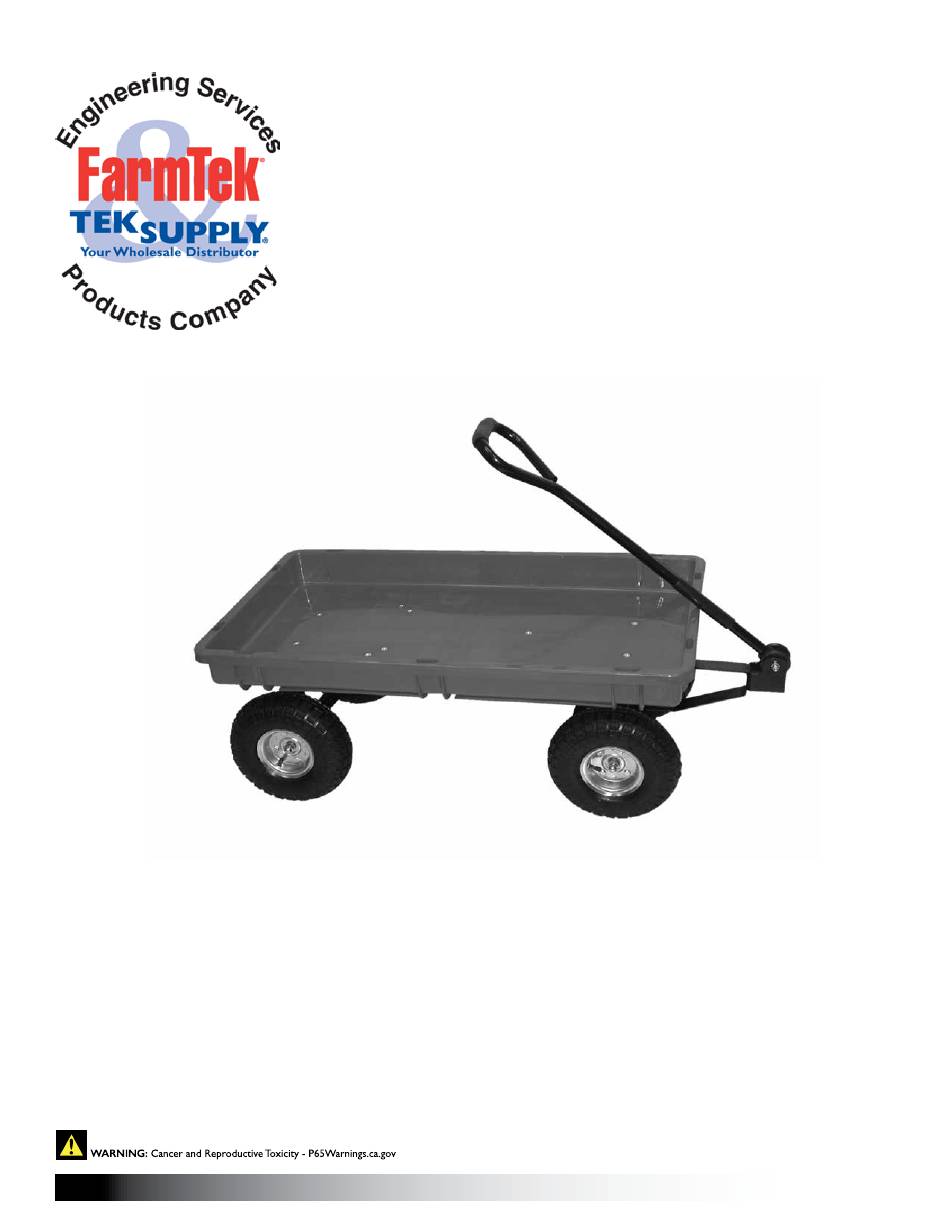

- Page 1 CARTS AND WAGONS 107001 ALL-PURPOSE PLASTIC WAGON 12197 Wagon shown above may differ slightly in design from actual wagon. ©2008 FarmTek ® All Rights Reserved. Reproduction is prohibited without permission. Revision date: 10.22.08...
-
Page 2: Care And Maintenance
CARTS AND WAGONS CARE AND MAINTENANCE • Periodically check all fasteners to assure they are tight. • Clean the wagon using water and mild soap. Rinse with water sprayed from a garden hose. (Tip the wagon on its side to let water drain out after washing.) •... - Page 3 CARTS AND WAGONS PICTORIAL PARTS LIST The following graphics and photos will help you identify the different parts. Steering Pivot Cotter Pin (1) Wheel Cap Nuts (4) Wheel Lock Wheel Flat Wheel Spacers (4) Washer (1) Washers (4) Washer (4) M6 Shoulder 6 X 20mm M6 Flat Washers (4)
- Page 4 CARTS AND WAGONS ASSEMBLE AND INSTALL REAR AXLE NOTE: Install the wheel with the valve stem to the outside. 1. Slide the rear axle braces onto the rear axle assembly. Wheel Flat Washer Wheel Lock Washer Wheel Cap Nut Rear Axle Assembly 6.
- Page 5 CARTS AND WAGONS ASSEMBLE FRONT AXLE (CONTINUED) 6. Attach the front axle brace to the front axle assembly by inserting a 6 x 20mm shoulder bolt through the front 3. Attach the steering arm to the front axle assembly by axle brace, front axle assembly, and steering arm.
- Page 6 CARTS AND WAGONS INSTALL FRONT AXLE (CONTINUED) 7. Repeat the same steps for the remaining wheel. 2. Align holes in the front axle brace and front axle 8. Set the wagon on the wheels. assembly with holes in the tub. 9.
-
Page 7: Maintenance
CARTS AND WAGONS MAINTENANCE 1. Periodically check all connections to ensure safe operation of wagon. 2. Periodically check air pressure in tires. Space below is reserved for customer notes. Revision date: 10.22.08...
