Good Display
Prepared:
Checked:
Approved:
Issue Date:
Good Display
No.17 Gonghua Street, Shahekou District, Dalian 116021 China

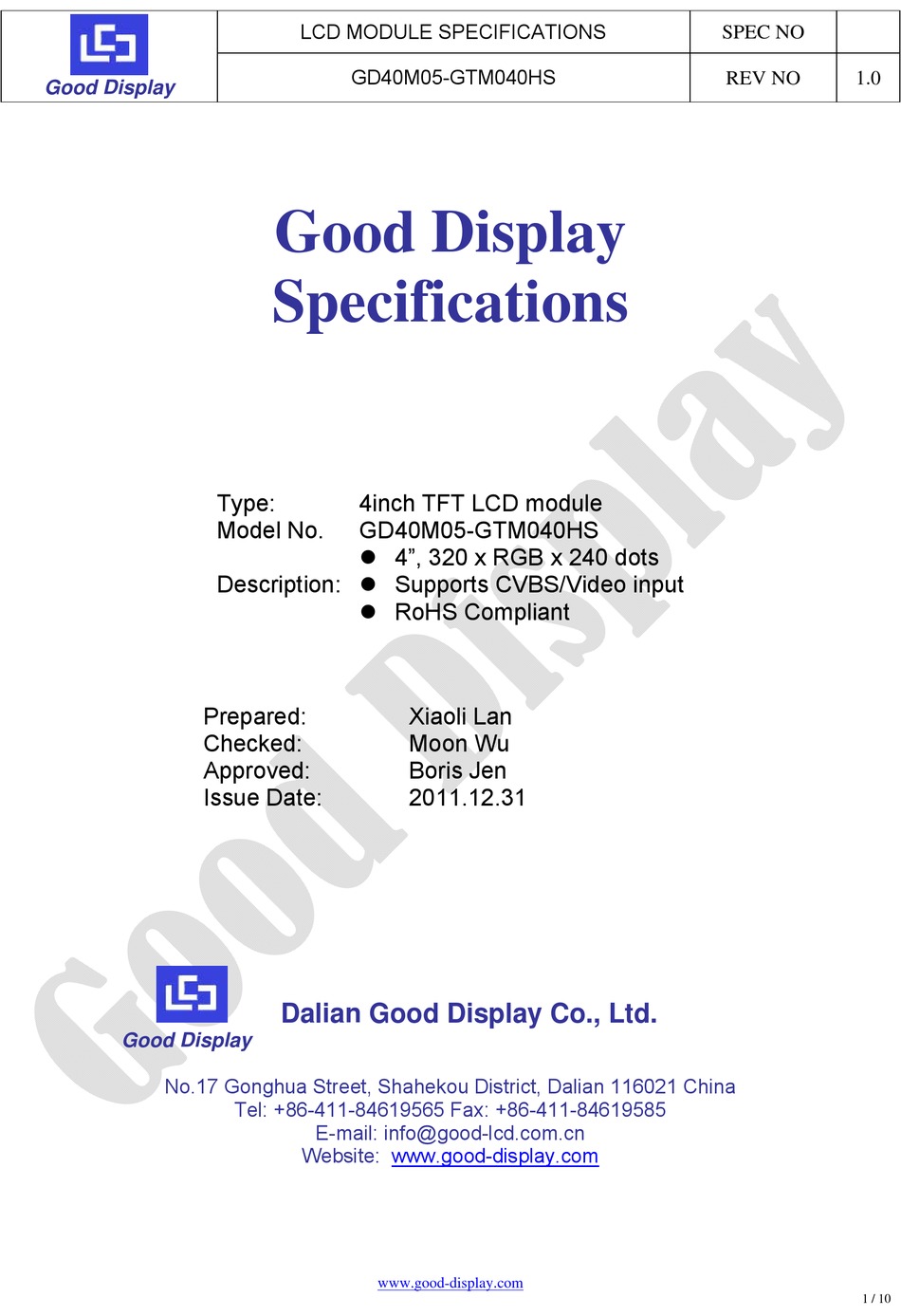

LCD MODULE SPECIFICATIONS
GD40M05-GTM040HS
Good Display
Specifications
Type:
4inch TFT LCD module
Model No.
GD40M05-GTM040HS
4", 320 x RGB x 240 dots
Description:
Supports CVBS/Video input
RoHS Compliant
Dalian Good Display Co., Ltd.
Tel: +86-411-84619565 Fax: +86-411-84619585
E-mail: info@good-lcd.com.cn
Website:
www.good-display.com
Xiaoli Lan
Moon Wu
Boris Jen
2011.12.31
www.good-display.com
SPEC NO
REV NO
1.0
1 / 10
Advertisement
Table of Contents
Related Manuals for DALIAN GOODDISPLAY CO. GD40M05-GTM040HS Series
Summary of Contents for DALIAN GOODDISPLAY CO. GD40M05-GTM040HS Series
- Page 1 LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display Good Display Specifications Type: 4inch TFT LCD module Model No. GD40M05-GTM040HS 4”, 320 x RGB x 240 dots Description: Supports CVBS/Video input RoHS Compliant Prepared: Xiaoli Lan Checked: Moon Wu Approved:...
-
Page 2: Table Of Contents
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display Contents Notice ------------------------------------------------------------------------------------------3 Technical Specifications-------------------------------------------------------------------3 General Specifications ---------------------------------------------------------------------3 Ordering Information ---------------------------------------------------------------------4 The photos of the Product ----------------------------------------------------------------4 Setting the TFT LCD module.-------------------------------------------------------------5 Connection diagram--------------------------------------------------------------------5 The interface definition of the A/D board --------------------------------------------7 TFT LCD Panel Mechanical Drawing---------------------------------------------------8 A/D Board Mechanical Drawing ---------------------------------------------------------9 Product Label-------------------------------------------------------------------------------10... -
Page 3: Notice
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display 1. Notice: Important Safety Instructions 1.1 The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD panel. Please note that your AC/DC adapter’s output plug need to match the DC input jack, the diameter of the jack is 5.5 1.2 Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack. -
Page 4: Ordering Information
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display 4. Ordering Information Parameter GD40M05-GTM040HS GD40M05-GTM040HS-P Unit Support Video input Support VGA input Without Without Touch panel 4” LCD Panel+A/D board+Power 4” LCD Panel+A/D board+Power Cable+Video Parts Cable+Video Cable+Keypad Board Cable+ Rotation Potentiometer 0.09 0.09... -
Page 5: Connection Diagram
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display parameters value from “small” to “large”. These parameters are such as Brightness, Contrast, Volume, etc. In addition, it is a shortcut key to increase the volume value at no menu status. 6.1.2 OSD menu introduction (On Screen Display) Press the <Menu>... - Page 6 LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display A/D board Front side: A/D board Back side: Cable description: 1. The length of Power supply and Video cable is 230mm, Part number is 22.XC.042017P, 4 PINs (pitch:2.0 mm) Cable Color Function Remark Yellow...
-
Page 7: The Interface Definition Of The A/D Board
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display 8. The interface definition of the A/D board: 8.1 J103 interface definition: PIN No. Symbol Description +12V DC power supply input Video Video signal input 8.2 J100 interface definition for GD40M05-GTM040HS: PIN No. - Page 8 LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display...
-
Page 9: A/D Board Mechanical Drawing
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display 10. A/D Board Mechanical Drawing PCB size: 62.0 (W) ×55.2(H) ×9.0(D) mm www.good-display.com 9 / 10... -
Page 10: Product Label
LCD MODULE SPECIFICATIONS SPEC NO GD40M05-GTM040HS REV NO Good Display 11. Product Label Label Dimension : 48.0X12.0mm XXXXXX / XXXXXX Production Date (Y/M/D) Delivery Date (Y/M/D) 12. Precaution For the sake of normal usage of this product, preventing incident from the electric shock or fire etc., please follow the precaution below instructions: 1.
