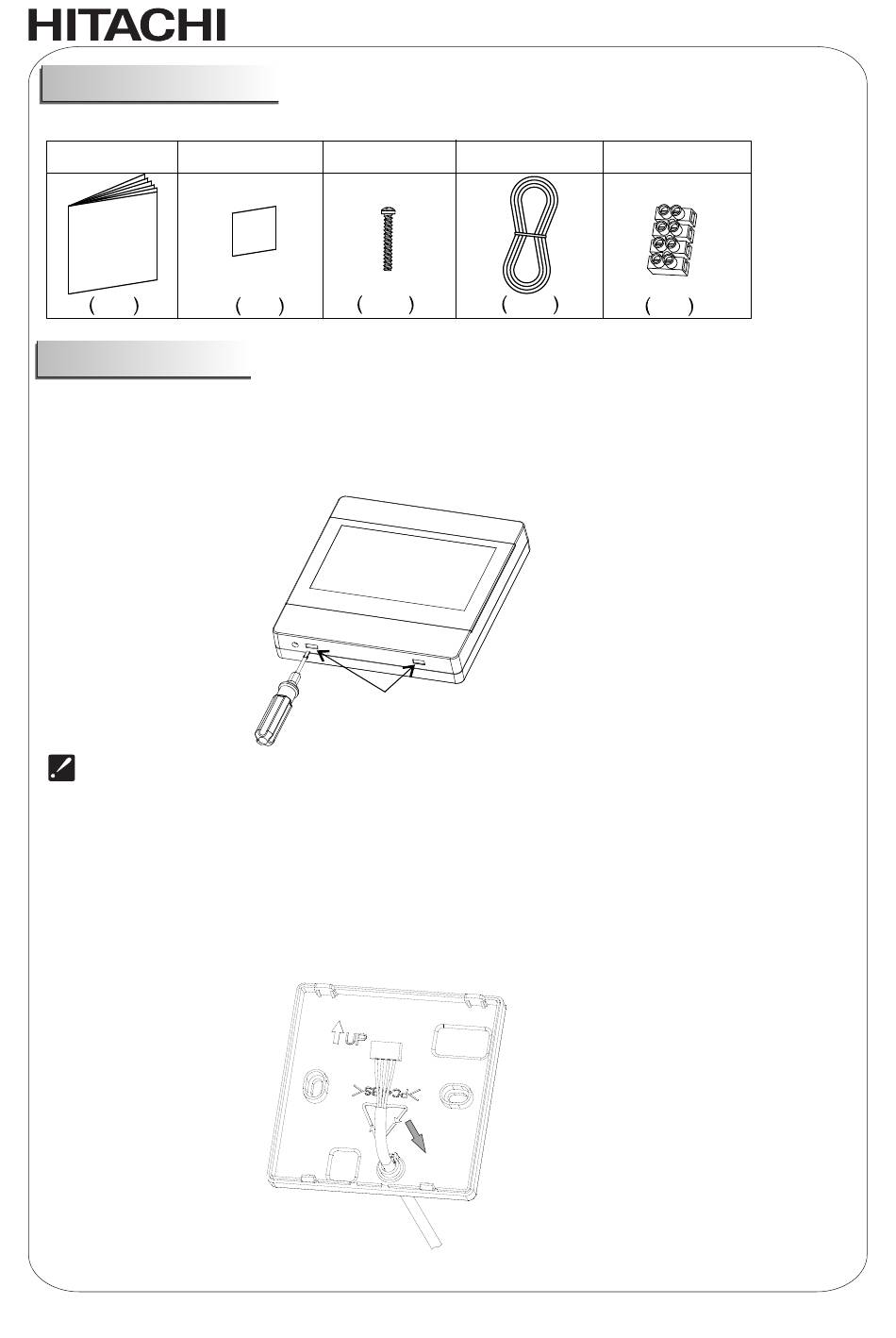

Checking accessories
Check that the following accessories are included with the unit before installation：
Quality certification
Manual
1pc
How to install
1.Selecting the Installation Location.
Please select the installation location according to safety precautions .
2. Removing the upper cover of the wired controller.
Note:
Control board of the wired controller is placed on upper cover.
Please protect it from being scratched during removal and installation!
3.Remove the insulating strip of the battery.
Otherwise the wired controller cannot work normally after installation!
4.Wiring.
①
Leading out wire
Pull one of the attached controlling cable out of the lower cover from the rear round hole.
Screw
1pc
2 pcs
Insert the slotted screwdriver in the slots,
and press on it for removal.
Wired Controller Installation
Controlling cable Connecting terminal
2 pcs
*Lead out the wire toward the arrow
direction!
3
1pc
