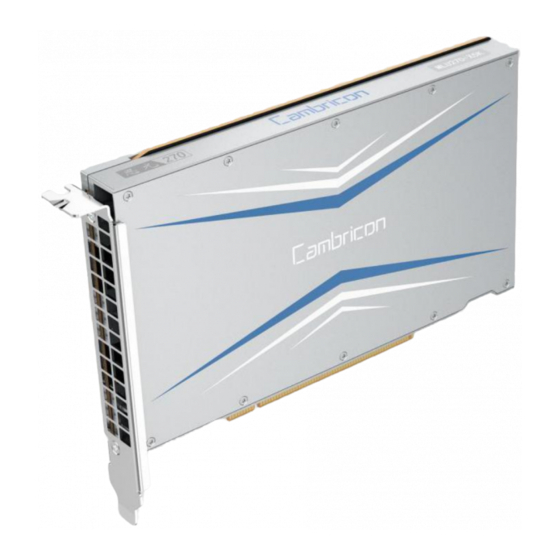

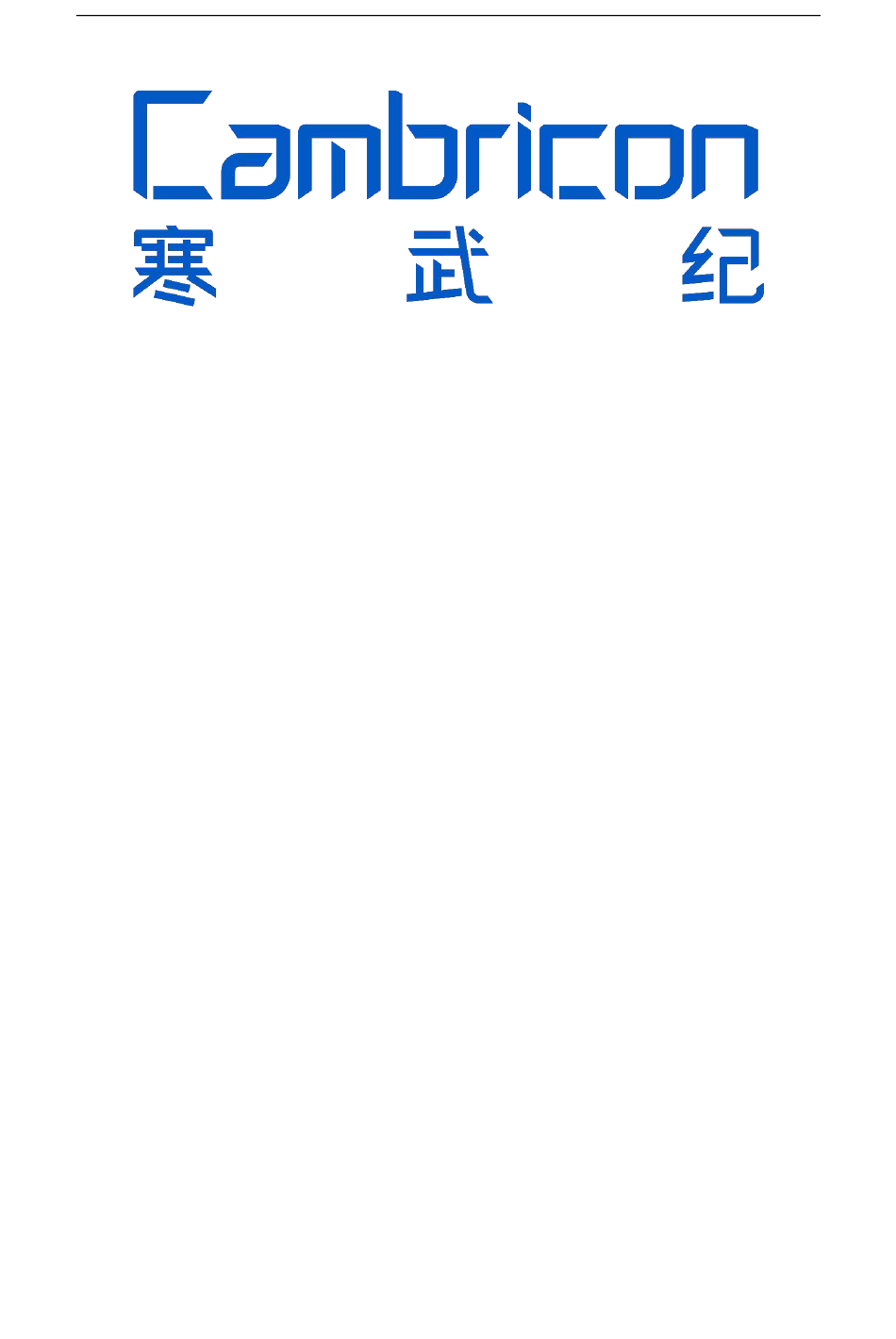

- Page 1 MLU270-X Series Intelligent Processing Card User Manual V0.9 Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual...
- Page 2 Revision History Document Name MLU270-X Series Intelligent Processing Card User Manual Revision V0.9 Created Date 2020.01.10 Revision History Date Version Notes 2020.01.10 V0.9 First Release : service@cambricon.com Technical supports contact www.cambricon.com Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual...
-
Page 3: Table Of Contents
2.4 Mechanical Specifications ....................7 2.5 Package Size and Weight ....................8 2.6 Thermal Specifications ......................8 2.7 Power Supplies Specifications .................... 9 3. Cambricon NeuWare Development Environment ..............12 4. Compliance ..........................12 Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual... -
Page 4: Product Brief
AI PC/server so as to provide a huge extension of calculation power of AI inferences. MLU270-X series has a moderate TDP of 150W and it can provide a calculation power as high as 4 times of the previous generation. It can be widely used in applications such as... -
Page 5: Product Specifications
MLU270-X series will decrease the load of CPU and the occupation for PCIe bandwidth, so as to increase the performances even more. - Page 6 The main frequency is reduced to 25% of current frequency when write 0x04,and restore to pre-frequency when write 0x01 PCIE Vendor 0xA0 [15:0] Vendor ID：0xCABC and Device ID [31:16] Device ID：0x0270 PCIE Sub-Vendor 0xA1 [15:0] Sub-Vendor ID：0xCABC Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual...
-
Page 7: Operating Environment
2018.11 Device ID 0xF5 Display Device ID ， e.g 0x20023 means device id is 20023 Operating Environment Table 5 MLU270-X Series Intelligent Processing Card Working Environment Operating Temperature 0℃～45°C -40℃～75℃ Storage Temperature 5%—95% Relative Humidity Operating Humidity S torage Humidity 5%—95% Relative Humidity... -
Page 8: Package Size And Weight
Notes：The weight is a measured value with a tolerance of +-10% Thermal Specifications 2.6.1 MLU270-X Series Power and Temperature specifications Table 7 MLU270-X Series Thermal Design specifications Item Parameters TDP (Thermal Design Power) 150W 0-90℃ Recommended Operating Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual... -
Page 9: Power Supplies Specifications
Shutdown Tj 95℃ 2.6.2 MLU270-X Series Airflow Directions Requirement MLU270-X Series use a blower to cool the card，the airflow direction is shown below： Figure.3 MLU270-X Series Airflow direction Power Supplies Specifications MLU270-X Series Intelligent Processing Card provides a 8-Pin Power Connector as ：... - Page 10 Power Sockets, along with a One-To-Two Adapter Cable. Table9 Adapter Cable Connections 8-Pin Power PCIe 8-Pin Socket 1 PCIe 8-Pin Socket 2 Colour connector Yellow Yellow Yellow Yellow Black Black Black Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual...
- Page 11 Power Capping Response time （max） 100ms Table 13 Power Break PB# PCIe pin assignment Power Brake response time（typical） 150us PB# input insertion low time （min） 250ms Power brake hardware slowdown factor Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual...
-
Page 12: Cambricon Neuware Development Environment
Address: 11/F, Block D, Zhizhen Tower, No.7 Zhichun Road, Haidian District, Beijing, China Compliance The MLU270-X Series is compliant with the regulations listed in this section. Compliance marks, including the FCC ID numbers, can be found on the labels of each devices. - Page 13 Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Underwriters Laboratories (UL) UL Listed Product Logo for MLU270-X Series Intelligent Processing Cards，model name MLU270-X. Cambricon Technologies, MLU270-X Series Intelligent Processing Card User Manual...
