  • Page 1 SMARTY XV MOUNTING AND INSTALLATION INSTRUCTION...

  • Page 2: Table Of Contents

    CONTENT 2. SYMBOLS AND MARKING 3. SAFETY INSTRUCTIONS AND PRECAUTIONS 4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION 4.2. DIMENSIONS AND WEIGHT 4.3. TECHNICAL DATA 4.4. OPERATING CONDITIONS 4.5. STANDART PACKAGE OF COMPONENTS 4.6. DESCRIPTION OF COMPONENTS 5. INSTALATION 5.1. RECEPTION OF GOODS 5.2.

  • Page 3: Symbols And Marking

    2. SYMBOLS AND MARKING Warning – pay attention Additional information Stick the auxiliary label on the unit (on an easily accessible place) or on the dashed place of a technical manual in order to keep the important information about the unit. Figure.

  • Page 4: Safety Instructions And Precautions

    In exceptional cases harmful gases could be drawn out of the chimney or extraction ducting back into the room. In this case we strictly recommend to turn off Salda Antifrost and use an external preheater for heat exchanger anti-frost protection (see Salda Antifrost function on the Remote controller manual).

  • Page 5: Information About The Product

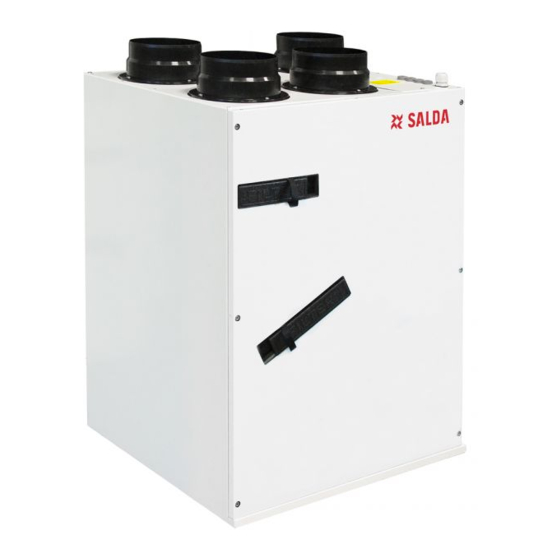

    4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION Smarty X V are residential air handling unit with a high efficiency (up to 91 %) counter flow heat exchanger. The unit provides ventilation in the home and takes the heat from the exhausted air. AHU complies with ErP 2018 , Passivhaus, Eurovent requirements. The unit is operated by a separate remote control panel or though separate MB-Gateway by PC.

  • Page 6: Technical Data

    ød G1/2 G1/2 - depends on unit and its accessories. SMARTY WEIGHT 2 XV 1.1 2 XV 1.2 3 XV 1.1 3 XV 1.2 4 XV 1.1 4 XV 1.2 [kg] 4.3. TECHNICAL DATA SMARTY 2XV 1.1 2XV 1.2 3XV 1.1 3XV 1.2 4XV 1.1 4XV 1.2...

  • Page 7: Operating Conditions

    Extract LWA, dB(A) Surround LWA, dB(A) Measured at flow/pressure, (m /h/Pa) 406/50 4.4. OPERATING CONDITIONS SMARTY 2XV 1.1 2XV 1.2 3XV 1.1 3XV 1.2 4XV 1.1 4XV 1.2 Minimum outdoor air temperature Maximum outdoor air temperature Minimum extracted air temperature Maximum extracted air temperature Maximum extracted air relative humidity 60 %...

  • Page 8: Instalation

    5. INSTALATION 5.1. RECEPTION OF GOODS Each device is thoroughly checked before transportation. While receiving goods it is recommended to check whether devices were not damaged during transportation. If a damage to the device is noticed, immediately address the representatives of a transport company. Please inform a rep- resentative of the manufacturer, if any deviation from the order is noticed.

  • Page 9: Piping And Instrumentation Diagram

    Figure 5.3.1. Smarty 2XV Figure 5.3.2. Smarty 3XV/4XV 5.4. PIPING AND INSTRUMENTATION DIAGRAM Figure 5.4.1. SMARTY XV miniMCB (* Available in 3/4 XV 1.1 mod- Figure 5.4.2. SMARTY XV miniMCB basic (* Only heater or els; ** Check the manual for details; *** Optional) preheater can be connected at a time;...

  • Page 10: Mounting

    Exhaust air temperature sensor Supply air temperature sensor Outdoor air temperature sensor α extract air temperature and humidity sensor (only Ventilated premises version 1.1) sensor* MB-Gateway Network module RH sensor* Network Computer Stouch or SA-Control remote control panel POSSIBLE PCB INPUTS/OUTPUTS Fire alarm Working indication output α...

  • Page 11: Place Requirements For The Equipment And Mounting Positions

    5.6. PLACE REQUIREMENTS FOR THE EQUIPMENT AND MOUNTING POSITIONS 1,5xL 1,5xL Figure 5.6.1. Min. distance to open the door - 1,5xL; Min. distance to open control box door - H > 400 mm. 5.7. FLOOR MOUNTING Figure 5.7.1. floor mounting (optional accessory required) 5.8.

  • Page 12: Connection Of The Air Duct

    DRAINAGE INSTALLATION SMARTY 2XV øD Figure 5.9.1. drainage installation (øD=150 mm) It’s required to connect condensate drainage system after hanging or placing of air handling unit. Insert condensate draining into AHU. Condensate draining must be lubricated with a sealant (I-VII) and connected to a condensate removal system. Remove the sticker on the bottom of the unit, which covers a drainage hole.

  • Page 13: Connection Of The Unit To Electric Network

    and noise level, you can increase the diameter. • In order to reduce the level of the noise in the air supply system, install dampers (see chapter on their installation). • In order to reduce air loss in the system, the air ducts and profile parts should be of class C and higher. Their catalog can be found in our website. •...

  • Page 14: Maintenance

    6. MAINTENANCE 6.1. SAFETY INSTRUCTION Unplug unit from mains before opening the door (disconnect the power plug from the outlet or if there is a two-pole automatic circuit breaker installed – disconnect it as well. It is necessary to ensure that it won’t be turned on by third parties) and wait until the full stop of the fans (for about 2 min.).

  • Page 15: Filters Maintenance

    After changing the filters, please reload the filter timer. Instruction on reloading, you may find in manual of control panel or on our website www.salda.lt Change the filters every 3-4 months or according to the notification on the control device.

  • Page 16: Heat Exchanger Maintenance

    Figure 6.5.1. Smarty 2XV Figure 6.5.2. Smarty 3XV/4XV 6.6. HEAT EXCHANGER MAINTENANCE • Proceed to maintenance and repair after any rotation in the fan stopped. • Clean the heat exchanger once a year. • Firstly take out heat exchanger cassette carefully. Submerge it into a bath and wash with warm soapy water (do not use soda). Then rinse it with weak hot water stream (too strong stream can fold the plates).

  • Page 17: Control Board Maintenance

    6.8. CONTROL BOARD MAINTENANCE - Unscrew the front bolt securing the control board holder to the unit casing. - Withdraw the automation through the front part. - Disconnect the connectors from the control board. - The connectors are marked according to connection location. Thus during automation reassembly please observe the marking of the connection location of connectors and controller.

  • Page 18: Device Control

    1. Selected control interface (remote control panel, MB-GATEWAY and etc.). Chosen interface just affects access to the information and settings but not affects the logic of control. Full access to the information and settings are available on ST-SA-Control, MB-GATEWAY WEB application and SALDA AIR mobile application. 2. Unit configuration (internal/external components, sensors and control board settings) Refer to the instruction manual of the existing control device for unit control instructions.

  • Page 19: Accessories

    8. ACCESSORIES MUTE EKA NIS S-KCO2 S-RCO2-F2 CM230-F-L ST-SA- Stouch MB Gate- S-KFF-U S-RFF-U- UG-3-A4O 774451 + TP-Link TJ1TE- Control D-F2 774411 TLWR802N NTC10 K3B4.5 TF 230 DESCRIPTION NAME ELECTRICAL ACCESSORIES EKA NIS 160-1.0-1 f ACC000323 EKA NIS 160-1,2-1f ACC003804 EKA NIS 160-1.5-1 f ACC000324 EKA NIS 160-2.0-1 f...

  • Page 20: Connection Of Accessories

    Remotre control panel ST-SA -Control ACC005592 Remotre control panel Stouch ACC000272 Network module MB-Gateway MB Gateway ACC000269 Duct humidity transmitter S-KFF-U ACC000279 Room humidity transmitter S-RFF-U-D-F2 ACC000280 Button 774451 + 774411 ZEPSM001 Wireless N Nano Router TP-Link TL-WR802N ACC000273 Sensor temperature TJ1TE-NTC10K3B4.5 ACC002560 Smoke detector...
  • Page 21 EKA connection: EKA NIS connection: Automatic and manual protection shall be connected to EX1 controllers X23 connector if the electric heater is equipped with these connection terminals. Otherwise jumpers are installed on X23 connector protection inputs. SMARTY XV v2020.2 EN |...
  • Page 22 8.1.1.2. VERSION 1.2. Smarty XV 1.2. units have one connection of external electrical heater/pre-heater. In factory settings connection is dedicated for the pre-heater but can be configured for the heater. Heater/pre-heater can be controlled by signals: - 0-10V – EKA NIS - On-off –...
  • Page 23 EKA NIS connection: SMARTY XV v2020.2 EN |...
  • Page 24 Automatic and manual protection shall be connected to controllers X5 connector if the electric heater/pre-heater is equipped with these connection terminals. Otherwise jumpers are installed on X5 connector protection inputs. Since a pre-heater is to be connected according to the factory settings, settings should be changed in the environment of the MB-Gateway WEB application service or on the ST-SA-Control panel.
  • Page 25 • Service -> Heaters -> Supply air heater or outdoor air pre-heater Set whether it is a heater or pre-heater as well as the type of the heater or pre-heater and actions to be performed in case of the activation of a protection signal.

  • Page 26: Fire Protection Signal Input (Fire Protection Input (Nc))

    supply. 8.1.2. FIRE PROTECTION SIGNAL INPUT (FIRE PROTECTION INPUT (NC)) Fire protection signal input must be normally closed, until the fire protection system is not connected a jumper is installed in the factory. Automation controller A zone X4 More information can be found in the "MCB miniMCB technical manual". 8.1.3.

  • Page 27: Room Co Transmitter Installation Recommendation

    8.1.4. ROOM CO TRANSMITTER INSTALLATION RECOMMENDATION 5 0 c m i n . min. 60 cm max. 400m If the duct CO transmitter is used, it must be installed in the extract air duct. Tool for drilling holes are required for duct transmitter installation.

  • Page 28: Connection Of Remote Control Panel Or Modbus

    8.1.7. CONNECTION OF REMOTE CONTROL PANEL OR MODBUS Wiring diagram. Automation controller F zone, X18 connector. Switch position for X18 connector configuration Switch Position Purpose 120R line termination resistor (On/Off) 8.1.8. FIRE PLACE CONNECTION (SMARTY XV 1.1) Wiring diagram. Automation controller C zone, X23 connector. LED indication miniMCB miniEX1...

  • Page 29: Recommended Scheme For Connection Of Internal And External Components

    8.1.9. RECOMMENDED SCHEME FOR CONNECTION OF INTERNAL AND EXTERNAL COMPONENTS *Only Smarty 1.1 versions have N2 module. Figure 8.1.9.1. Smarty 2XV 1.1, Smarty 2XV/3XV/4XV 1.2 (219.1017.0.1.1-PS) SMARTY XV v2020.2 EN |...
  • Page 30 Figure 8.1.9.2. Smarty 2XV 1.1, Smarty 2XV/3XV/4XV 1.2 (219.1017.0.1.2-PS) | EN SMARTY XV v2020.2...
  • Page 31 Figure 8.1.9.3. Smarty 2XV 1.1, Smarty 2XV/3XV/4XV 1.2 (219.1017.0.1.3-PS) SMARTY XV v2020.2 EN |...
  • Page 32 Figure 8.1.9.4. Bypass (SMARTY ZP3XV-0k) Figure 8.1.9.5. Preheater, Bypass wiring (Smarty 3XV-PE-0k) | EN SMARTY XV v2020.2...
  • Page 33 BU - Blue - Mėlynas RD - Red - Raudonas GN/YE - Green/Yellow - Žalias/Ge DUTIES / NAME SIGNATURE DATE SP42 EI D. Aleksandravičius UAB"SALDA" 2016-03-22 DRAWN BY ns (MiniMCB) EI A. Šklenikas 2016-03-22 CHECKED BY Principle connection scheme 2016-03-22 CHECKED BY Figure 8.1.9.7.
  • Page 34 Figure 8.1.9.9. External preheater (SP45) | EN SMARTY XV v2020.2...
  • Page 35 Figure 8.1.9.10. Smarty 3XV/4XV 1.1 (219.1349.0.1.1-PS) SMARTY XV v2020.2 EN |...
  • Page 36 Figure 8.1.9.11. Smarty 3XV/4XV 1.1 (219.1349.0.1.2-PS) | EN SMARTY XV v2020.2...
  • Page 37 Figure 8.1.9.12. Smarty 3XV/4XV 1.1 (219.1349.0.1.3-PS) SMARTY XV v2020.2 EN |...

  • Page 38: Spare Parts

    9. SPARE PARTS Heat ex- Door By-pass MiniMCB MiniMCB TL/TA changer Smarty basic 3/4X V Door 15 D SEE- Smarty 2X V SMARTY 2XV Control board V1.1 MiniMCB ASM000211 Control board V1.2 MiniMCB basic ASM000217 Temp. sensor TL/TA PJUT0062 Temp. sensor TJ ACC002560 By-pass drive 15 D SEE-202 GPYSM221_0_1007...
  • Page 39 Doors GPUD232_1028_0 By-pass damper (Smarty 4XV 1.1) GPUSK227_1004_1016 By-pass damper (Smarty 4XV 1.2) GPUSK227_1006_1016 SMARTY XV v2020.2 EN |...

  • Page 40: Possible Faults And Troubleshooting

    10. POSSIBLE FAULTS AND TROUBLESHOOTING FAILURE CAUSE EXPLANATION / CORRECTIVE ACTIONS Check whether the device is connected to the No supply voltage power network Switch on only if the unit condition has been Unit is not operating Protection device is off or a current evaluated by a qualified electrician.

  • Page 41: Ecodesign Data Table

    SMARTY XV v2020.2 EN |...
  • Page 42 | EN SMARTY XV v2020.2...
  • Page 43 SMARTY XV v2020.2 EN |...
  • Page 44 | EN SMARTY XV v2020.2...
  • Page 45 SMARTY XV v2020.2 EN |...
  • Page 46 | EN SMARTY XV v2020.2...

  • Page 47: Declaration Of Confimity

    LST EN 61000-6-3:2007 - Electromagnetic compatibility (EMC) -- Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial environments. Should any alterations be made in the products, this declaration will no longer apply. Quality: SALDA UAB activities are in line with the international quality management system standard ISO 9001:2015. Date 2020-03-23...

  • Page 48: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a con- trol system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 49 SMARTY XV v2020.2...
  • Page 50 SMARTY XV v2020.2...
  • Page 51 SMARTY XV v2020.2...
  • Page 52 Once a year** Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000306 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...

This manual is also suitable for:

Smarty 2x v 1.1Smarty 2x v 1.2Smarty 3x v 1.1Smarty 3x v 1.2Smarty 4x v 1.1Smarty 4x v 1.2
