Kathrein 738 440 Instruction

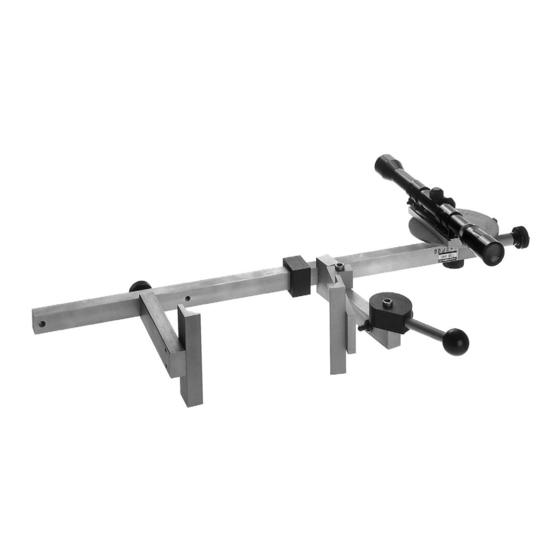

Azimuth Adjustment Tool
738 440
Precise azimuth adjustment for mast mounted antennas can easily be achieved by using the azimuth
adjustment tool.
This tool is suitable to all types of Panels and Tri-Sector Pipe Antennas with a maximum width
of 315 mm.

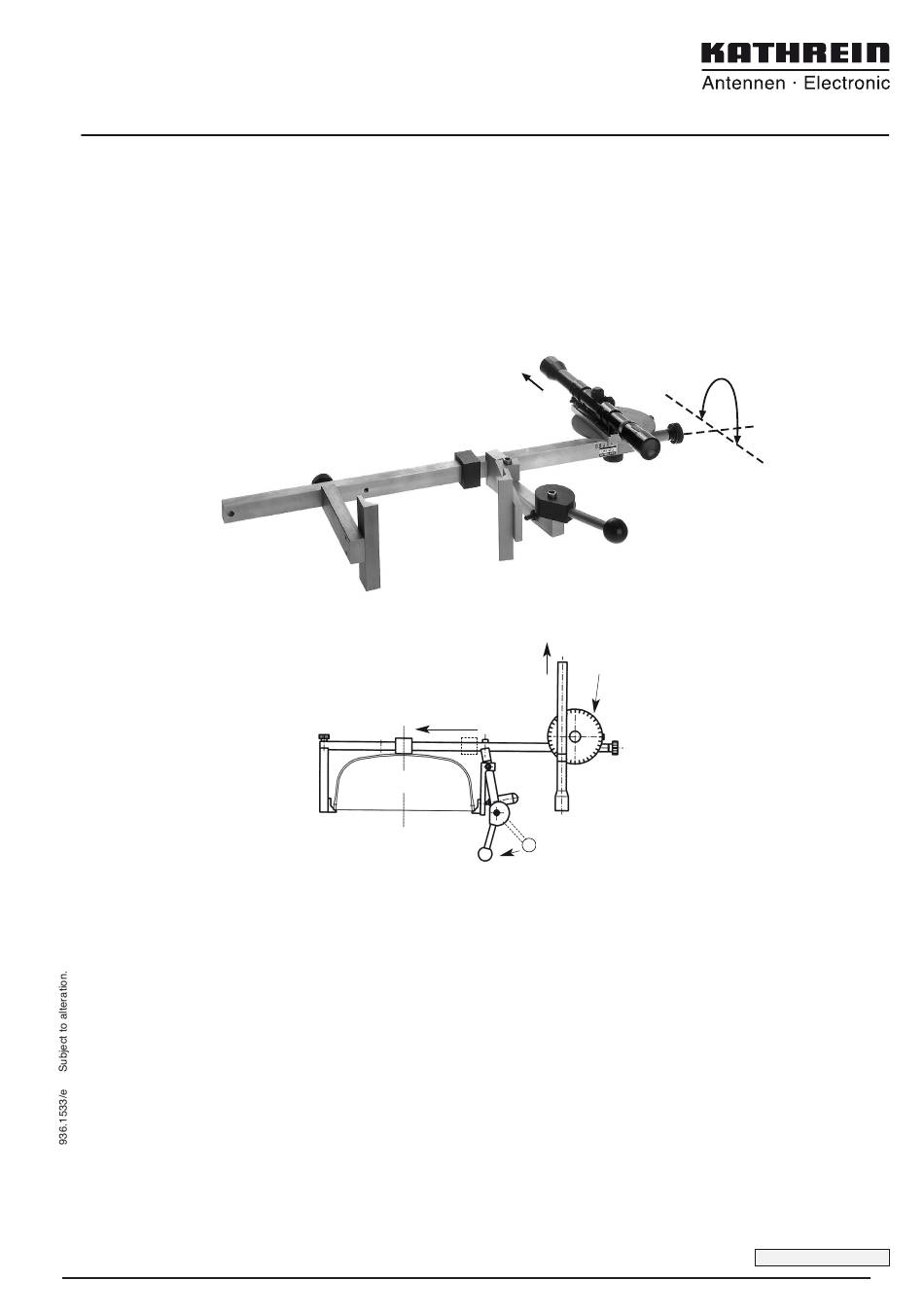

Instruction:
– Use a map to work out the angle between the designed antenna azimuth and target
(church, building, mountain peak).
– Set this angle on the scale of the adjustment tool.
– Place the adjustment tool onto the antenna and tighten the clamping device.
– Use the telescope to aim at the target object, if necessary, use elevation compensation.
– Then rotate the antenna until the target object appears in the telescope.
* Observe the position of the stopper when fitting the azimuth adjustment tool.
Kathrein USA Greenway Plaza II, 2400 Lakeside Blvd., Suite 650, Richardson TX 75082
Target object
Move the stopper to central position*
Panel
All specifications are subject to change without notice.
The latest specifications are available at www.kathreinusa.com
Phone: 214.238.8800 Fax: 214.238.8801
Target object
Scale
Clamping device
Email: info@kathrein.com
Elevation
compensation
738 440 Page 1 of 2
