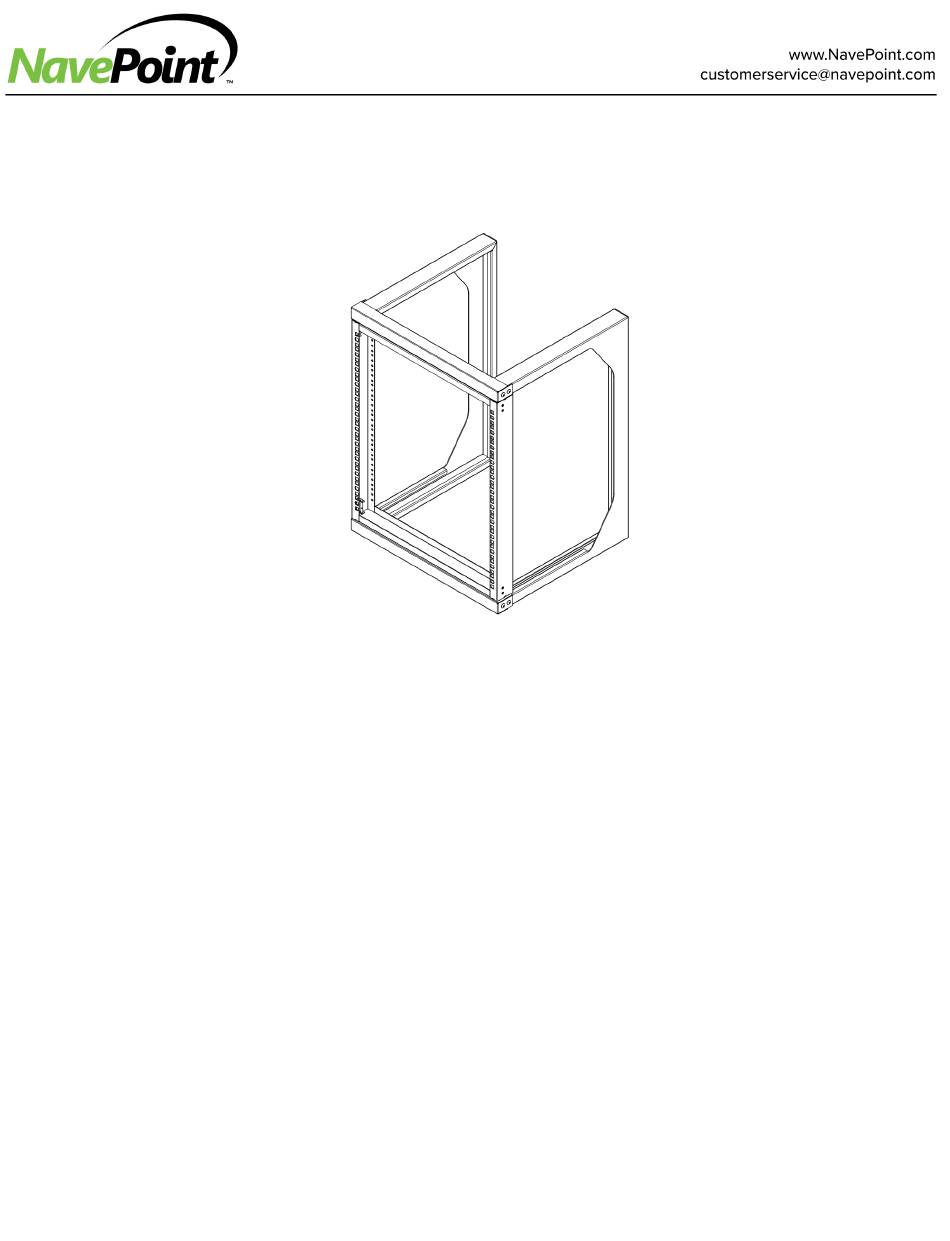

OWNER'S MANUAL: Swing Gate Wallmount Rack
Keep this information for further reference.
Thank you for purchasing a NavePoint product.
Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not attempt to install or
use product if it has been damaged. This product contains small items that could be a choking hazard – keep these items away from children.
During installation, lay product contents on cardboard or other protective surface to avoid any damage.
Do not use with equipment that is heavier than the indicated weight capacity for this product. This product is designed to be installed indoors on
wood stud walls, solid concrete walls or brick walls. Make sure that the supporting surface will safely support the weight of the equipment and all
attached hardware and components. It is recommended that installation be performed by a qualified installer. NavePoint cannot be held
responsible for damage to equipment or personal injury resulting from improper use or installation of product.
Maintenance: Check that the product is secure and safe to use at regular intervals (at least every three months).
Limitations of Liability: In no event will NavePoint, LLC. be liable for any damages, whether direct or indirect, special, punitive, incidental or
consequential damages (including, but not limited to, lost profits or revenue, loss of use, lost business opportunities or loss of goodwill) or for the
costs of procuring substitute products, arising out of or in connection with the use of the product, whether such liability arises from any claim
based upon contract, warranty, tort (including negligence), product liability or otherwise, whether or not seller has been advised of the possibility
of such loss or damage. In no event will seller's total cumulative liability, from all causes of action and all theories of liability, exceed the total
amounts actually paid to seller by customer under the order that gives rise to any liability hereunder.
V1.0

Advertisement

loading

Summary of Contents for NavePoint Swing Gate Wallmount Rack

  • Page 1 Thank you for purchasing a NavePoint product. Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not attempt to install or use product if it has been damaged. This product contains small items that could be a choking hazard – keep these items away from children.
  • Page 2: Parts Identification

    1. Parts Identification A Wall Mounting Frame (x2) B Horizontal Support Bar (x2) C Equipment Mounting Frame (x1) M5 Screws(x8) M4 Screws(x8) Metal Sleeves(x2) Plastic Sleeves(x2) M6 Mounting Screws (x10) 12-24 Mounting Screws(x10) M6 Cage Nuts(x10) www.NavePoint.com customerservice@navepoint.com...
  • Page 3: Rack Assembly

    2. Rack Assembly STEP 1 STEP 2 STEP 1. Attach the 2 Horizontal Support Bars (B) to the Wall Mounting Frames (A) using 8 M5 Screws (D). STEP 2. Secure them with 8 M4 Screws (E). www.NavePoint.com customerservice@navepoint.com...
  • Page 4 STEP 4. Secure the Equipment Mounting Frame (C) to the built frame, make sure the latch pins click into both the Metal Sleeves (F) and the Plastic Sleeves (G). Note: The Equipment Mounting Frame (C) can be installed with either the tapped screw holes or the squared holes facing forward for equipment mounting purposes. www.NavePoint.com customerservice@navepoint.com...
  • Page 5: Equipment Installation

    100 pounds evenly distributed (50 pounds when Equipment Mounting Frame is in open position). Make sure the wall surface can hold both the weight of the cabinet and the rack-mounted equipment. 4. Equipment Installation 1 Rack Unit www.NavePoint.com customerservice@navepoint.com...
  • Page 6 Repeat steps 1a and 1b until all required cage nuts are installed. 2 After installing the required cage nuts, use the included M6 Mounting Screws (H) to secure your equipment into the installed M6 Cage Nuts (I). www.NavePoint.com customerservice@navepoint.com...
  • Page 7 - Tapped Hole Mounting Use the included 12-24 Mounting Screws (J) to secure your equipment to the Equipment Mounting Frame (C). www.NavePoint.com customerservice@navepoint.com...
