Quantum™ MT™ Installation Instructions
Installation Instructions

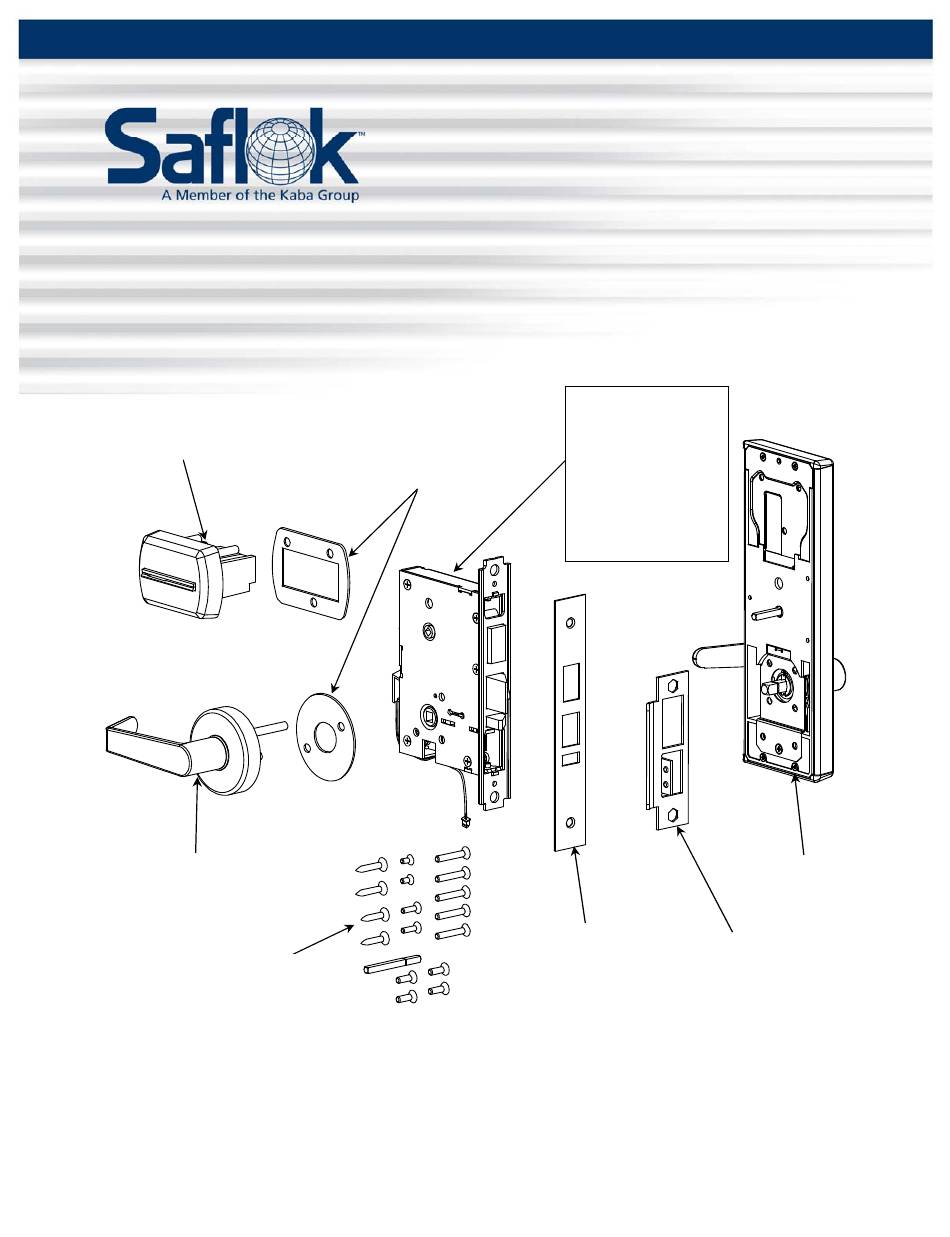

All parts needed to install the Quantum™ MT™ lock are included with each unit. Please check to make
sure all parts are accounted for before beginning installation. Do not substitute any of the parts. The use
of substitute parts will result in poor performance of the lock.
Card Reader Assembly
(A20950-COLOR)

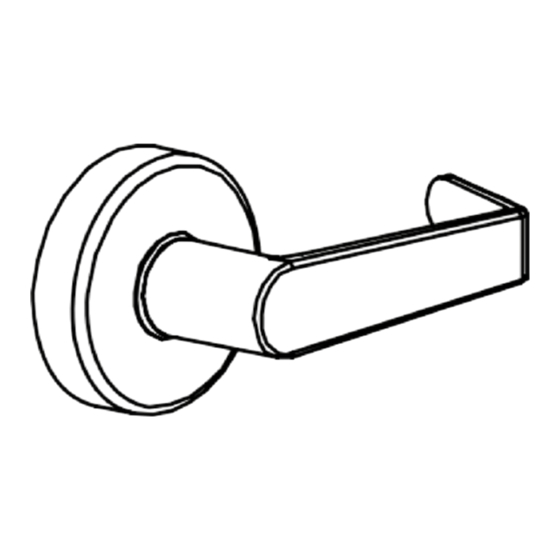

Outside Lever Trim
(A20970-HAND-COLOR)
Screw Pack
(A29070-COLOR)
All information contained herein, including but not limited to product pricing and other intellectual property, is confidential and
All information contained herein, including but not limited to product pricing and other intellectual property, is confidential and
intended for the sole use of the addressee(s) so named. Any misuse of this confidential information contained herein may result in
intended for the sole use of the addressee(s) so named. Any misuse of this confidential information contained herein may result in
legal action by Computerized Security Systems dba SAFLOK and its parent company.
legal action by Computerized Security Systems dba SAFLOK and its parent company.
© SAFLOK™
Quantum
nce of the lock.
Rubber Gaskets
(external applications only)
INS_QTMCARDMT
MT
™
™
Mortise, MT, STD, DAJ
(A60000-HAND-G)
OR
Mortise, MT, ADB, DAJ
(A59990-HAND-G)
OR
Mortise, Std.
(A59810-HAND-G)
OR
Mortise, ADB
(A59850-HAND-G)
Scalp Plate
(51190-COLOR)
Strike Plate
(30320-HAND-COLOR)
Pg. 1 of 8
Inside Trim Assembly
(QCLXXXX-6-XX)
2/16/2012
