RIDGID R350RHF Manual

DANGER:
Do not use oxygen, combustible gases, or bottled gases as a power source for this tool. The tool will explode and cause
death or serious injury.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product. If the operator's
manual which originally accompanied this tool is missing, visit us at www.RIDGID.com or call 1-866-539-1710.
WARNING:
Disconnect the tool from the air supply before performing maintenance on this tool. Failure to do so could result in serious
personal injury.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye
damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields, or a full face
shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side
shields. Always use eye protection which is marked to comply with ANSI Z87.1.
5
18
4
14
15
16
Fig. 1
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 35, Hwy. 8
Pickens, SC 29671, USA
1-866-539-1710  www.RIDGID.com
RIDGID is a registered trademark of RIDGID, Inc., used under license.

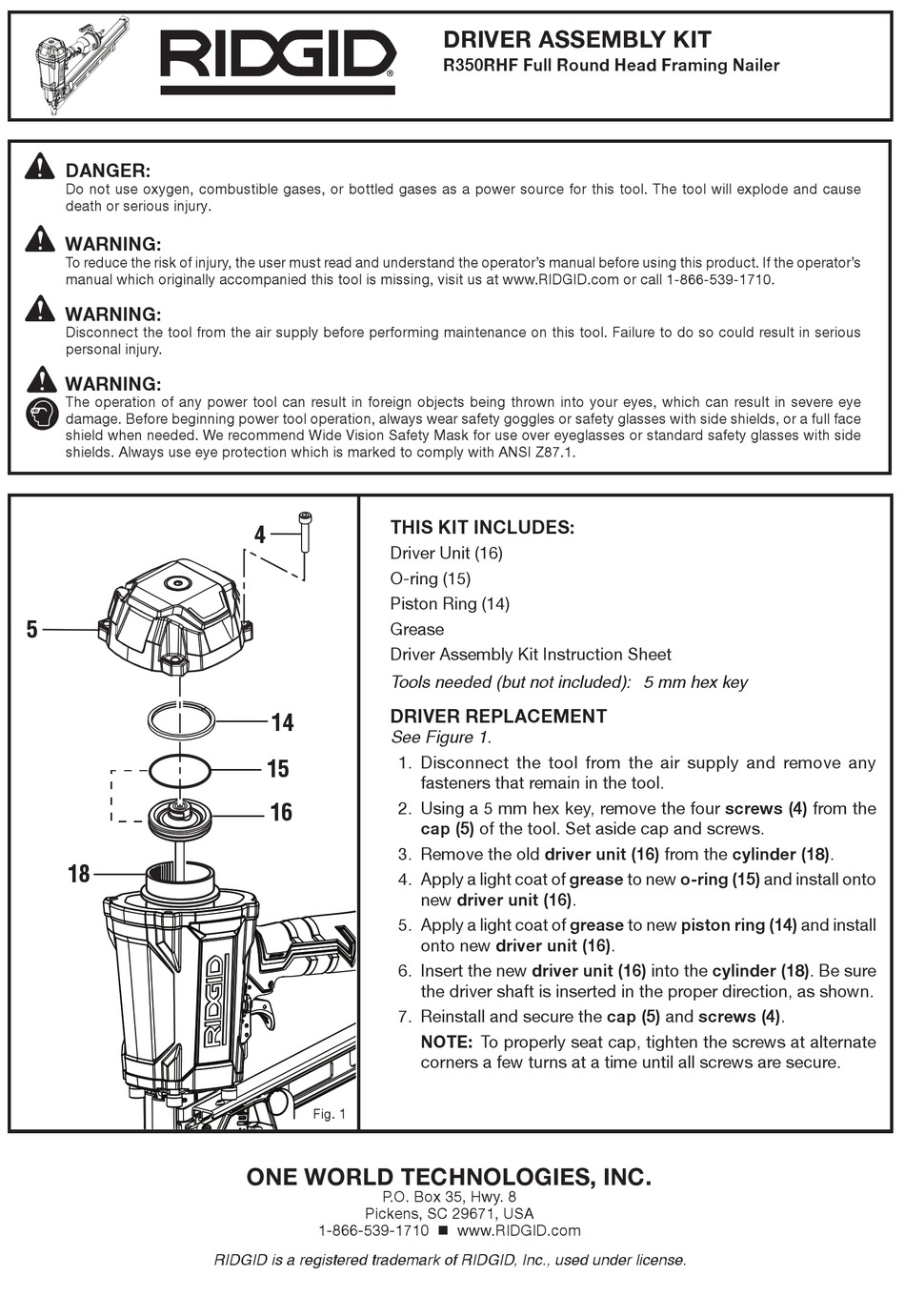

DRIVER ASSEMBLY KIT

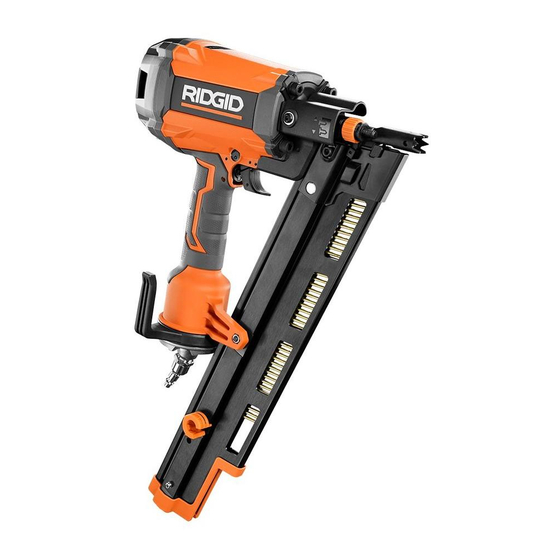

R350RHF Full Round Head Framing Nailer
THIS KIT INCLUDES:
Driver Unit (16)
O-ring (15)
Piston Ring (14)
Grease
Driver Assembly Kit Instruction Sheet
Tools needed (but not included): 5 mm hex key
DRIVER REPLACEMENT
See Figure 1.
1. Disconnect the tool from the air supply and remove any
fasteners that remain in the tool.
2. Using a 5 mm hex key, remove the four screws (4) from the
cap (5) of the tool. Set aside cap and screws.
3. Remove the old driver unit (16) from the cylinder (18).
4. Apply a light coat of grease to new o-ring (15) and install onto
new driver unit (16).
5. Apply a light coat of grease to new piston ring (14) and install
onto new driver unit (16).
6. Insert the new driver unit (16) into the cylinder (18). Be sure
the driver shaft is inserted in the proper direction, as shown.
7. Reinstall and secure the cap (5) and screws (4).
NOTE: To properly seat cap, tighten the screws at alternate
corners a few turns at a time until all screws are secure.
