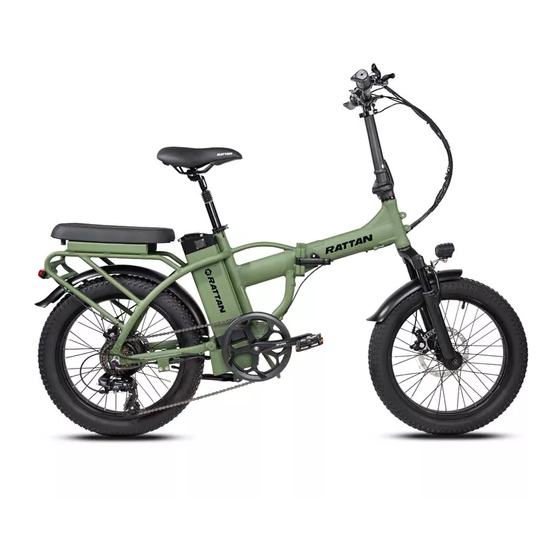

- Page 1 Model:LM-500/750 LF-500/750 User’s Manual 2020 www.rattanebike.com...
- Page 2 CONTENTS Part 1 Assembly Instructions (page1-3) Part 2 Display Instruction (page4-9) Part 3 Use and Maintenance (page10-13) Part 4 After sales and Warranty (page14-17)
- Page 3 Part 1 Assembly Instructions 1. Unboxing 2. Unfold the bike and lock...
- Page 4 3. Install the peddles and rear peddles 4. Power on the battery before turning on the display...
- Page 5 ▲The gasket is an addition repair part. Please don’t use for peddle assembly. ▲Please fully plug the DC head into the end of charging connector. ▲To make sure you can install by yourself, please click our website （www.rattanebike.com）for the assembly video or find the video on YouTube.
- Page 6 Part 2 Display Instruction MODEL: LCD-M5 1. LCD Display Size and Material Display Frontal View Display Lateral View Control Button Frontal View Control Button Lateral View...
- Page 7 2. Introduction of Display ⚫ Speed display ⚫ Power leveldisplay ⚫ Power indicator ⚫ Failure warning ⚫ Total mileage ⚫ Individualmileage ⚫ Headlight display ⚫ Singledrivingtimedisplay 3. Introduction of Control & Setting ⚫ Power switch control ⚫ Maximum speedsetting ⚫ Headlight switchcontrol ⚫...
- Page 8 ⚫ Headlight Please press the button for few seconds to open. ⚫ Battery power display ⚫ Multi-functional display area ODO—Total mileage. TRIP A—Singlemileage. TRIP B—Single mileage. VOL—Battery current voltage. CUR—Current operating current. RM—Remaining mileage. TM—Instrument boot time. ⚫ Vehicle mode Walk—Walk boost mode.
- Page 9 ⚫ Switch into setting menu Long press & short press switch to next parameter； Exit settings and save parameters. (If not been operated, the modified parameters will automatically save and exit after 8 seconds.) ⚫ Setting Parameter Interpretation P01: Backlight brightness. The darkest is level 1 & the brightest is level 3. P02: Mileage unit, 0: KM;...
- Page 10 1: Electric drive: Using by turning the handle drive. (It is invalid to change the data) 2: Power Driven and Electric Driven Coexistence. (Valid parameter) P11: Assistance sensitivity setting. Range: 1-24. P12: Assistance intensity setting. Range: 1-5. P13: Boost magnetic steel. Setting 5/8/12. P14: Controller limit value setting.
- Page 11 ⚫ Default setting: Function Parameter Default Brightness 1.Darkest; 2.Normal; 3.Brightest KM/MILE 0-MILE; 1-KM Voltage 24V; 36V; 48V Turn off time 0-off ； 1-60 min Level setting 0: 0-3level; 1:0-5 level Wheel diameter 16-28inch 20/24 Useless setting. Whatever you set will not affect your display Speed limit 0-51km/h Useless setting.
- Page 12 Part 3 Use and Maintenance 1. Precautions for First Using ⚫ Please adjust the optimal height of the seat according to the height of the user. ⚫ Please ensure the brake work properly. ⚫ It is not recommended to use the bike under the bad weather, such as rain storm. ⚫...
- Page 13 4. Brake Maintenance ⚫ Check brake pads regularly. ⚫ Check whether the brake disc is deformed. ⚫ If it is a hydraulic brake, check for oil leakage. ⚫ Clean brake regularly. 5. Motor Maintenance ⚫ Do not try to disassemble the motor. ⚫...
- Page 14 Common failures and check Problem Possible cause Remedy The speed Battery voltage is too low. Make sure the battery adjuster not Speed adjusting handle connection fully charges works or the becomes loosened. Hold faster after maximum speed The spring is stuck or failure inside recheck is too low the speed adjusting handle.
- Page 15 9. Ebike Status Code Meaning Status State Meaning Remarks Code (Decimal) Normal Reservation Brakes Power Sensor Fault (Riding Mark) Not Realized Here 6 KM/H cruise Real-time cruising Battery under voltage Motor Failure turn malfunctioning Controller failure Communication reception failure Communication dispatch failure BMS communication failure Headlight failure 10.
- Page 16 Part 4 After sales and Warranty 1. After sales Dear customer, thank you for choosing Rattan Ebike for your green travel solution, let’s ride together to keep our earth and home green. If you have any question about our product and want newest information’s, please...
- Page 17 2.Warranty The main parts of the warranty provisions Warranty Depreciation Component Performance failure Remark period rate /day Natural sealing off. Frame fork Fracture key parts 1year 0.2% Except human destroy crack. handle bar Fork fracture. Internal gear break. Bearing broken.
- Page 18 Warranty Depreciation Performance Component Remark period rate/day failure Switch 1year 0.1% Not work Skid, fracture Freewheel, chain 1year 0.1% freewheel stagnation Crank 1year 0.1% Not work Except human Expansion brake 1year 0.1% Not work destroy Throttle 1year 0.1% Not work Front and middle 1year 0.1%...
- Page 19 Riding on the abnormal road conditions. ⚫ Commercial rental use. ⚫ Irresistible natural disasters. At last, we express our top regard to you for choosing RATTAN ebike. Our planet is becoming cleaner because of you, keep going.
