Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this unit near water. Clean with a soft, dry cloth. Do not block any ventilation openings. Install the unit in accordance with the manufacturer’s instructions.
Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Substance Lead (Pb)
To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic. Product Name:...
Page 6
Notes on the AC Power Cord AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet, please contact your sales dealer.
Introduction Projector Features The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use. The projector offers the following features: Single chip 1.397cm / 0.55" Texas Instruments DLP XGA (1024 x 768 pixels) Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling compression compatibility for VGA, SVGA, XGA and SXGA Compatibility with Macintosh...

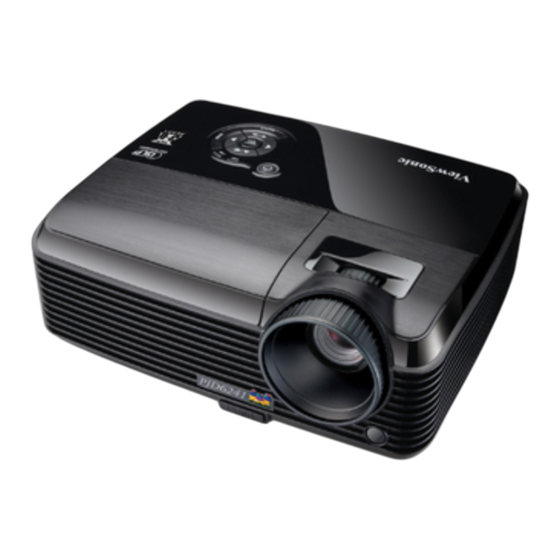

Projector Overview Front View Lens cap Elevator button Lens cap strap Projection lens Front IR remote control sensor Ventilation holes (intake) 10 9 Speaker Focus ring Zoom ring Control panel Lamp cover EN-7...
Rear View Connection ports AC power socket Kensington lock Rear IR remote control sensor Ventilation holes (exhaust) Security bar Bottom View Ceiling mount (M4*6) Tilt-adjustment feet This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package.
Using the Product Control Panel Power (Power LED indicator) Refer to “LED Indicator Messages”. TEMP (Temperature LED indicator) Refer to “LED Indicator Messages”. LAMP (Lamp LED indicator) Refer to “LED Indicator Messages”. Button Function Keystone Manually correct distorted images resulting from an angled projection. Four directional buttons Use four directional buttons to select items or make adjustments to your selection.
Connection Ports For network control. This connector is for firmware update and mouse function support. VIDEO Connect composite video output from video equipment to this jack. S-VIDEO Connect S-Video output from video equipment to this jack. MONITOR OUT Connect to a computer display, etc. AUDIO OUT Connect to a speaker or other audio input equipment.
Remote Control POWER Turn the projector on or off. VGA1 Select analog RGB signal from COMPUTER IN 1 terminal. Source Manually select an input source by sequence. Enter Confirmed selections. Keystone+ / - Adjust image distortion caused by tilting the projector. ViewM Switch in between high brightness performance or Accuracy color...
Installing the Batteries Open the battery cover in the direction shown. Install batteries as indicated by the diagram inside the compartment. Close the battery cover into position. Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Make sure the plus and minus terminals are correctly aligned when loading a battery.
Remote Control Operation Point the remote control at the infrared remote sensor and press a button. Operating the projector from the front Operating the projector from the rear Do not point the laser directly to the people's eyes (especially small children). There is a danger of injury to the eyes.
Installation Connecting the Projector USB Cable VGA Cable (D-Sub to D-Sub) RS-232 Cable Audio Cable When connecting cable, power cords of both projector and external equipment should be disconnected from AC outlet. The figure above is a sample connection. This does not mean that all of these devices can or must be connected simultaneously.
Powering On/Off the Projector Powering On the Projector: Remove the projector lens cap. Complete the AC power cord and peripheral signal cable(s) connections. Press button to turn on the projector. The projector takes a minute or so to warm up. Turn on your source (computer, notebook, DVD, etc.).
Adjusting the Projector Adjusting the Projector Height The projector is equipped with an elevator foot to adjust the image height. To raise or lower the image: To raise or lower the image, press the elevator button and raise or lower the front of the projector.
Adjusting Projection Image Size Refer to the graphic and table below to determine the screen size and projection distance. 5.08m / 200" Screen size Diagonal 1.02m / 40" 1.40 1.27m / 50" 1.80 1.52m / 60" 2.10 1.78m / 70" 2.50 2.03m / 80"...
Page 22
*1 Adjustable range and default setting vary depending on signal type. *2 This function is only available when the projector is installed an optional filter cover. EN-19...
How to operate Press the MENU button to open the OSD menu. When OSD is displayed, use After selecting the desired main menu item, press feature setting. to select the desired item and adjust the settings with Press the MENU button, the screen will return to the main menu. To exit OSD, Press the projector will automatically save the new settings.
Page 24
Gamma Effect the represent of dark scenery. With greater gamma value, dark scenery will look brighter. 3D Sync Off: Disable 3D function 3D-Vision: For NVIDIA 3D Vision application DLP-LINK: For TI 3D DLP-LINK application 3D Sync Invert (for TI 3D DLP-LINK only) On: Invert left and right frame contents.
Page 25
Setting (Computer / Video Mode) Menu Position Choose the menu location on the display screen. Projection Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly. Signal Type Specify the source to the COMPUTER IN 1/COMPUTER IN 2 terminal that you wish to project.
Page 26
Duration of OSD menu display countly starts (at idle state by second). Option (Computer / Video Mode) Blank Screen Blank the screen temporarily, and select the screen color when this function is active. Password Set or change the password. When the password function is added, image projection will require to input the preset password when turning on the projector.
Page 27
Group Name Display group name. Projector Name Display projector's model name. IP Address Numerical address to identify networked computers. This function can only be used when DHCP is set to No. The IP Address is the number that identifies this projector on the network. You cannot have two devices with the same IP Address on the same network.
Network Control This feature provides the ability to remotely control and manage the projector through the network. Preparation: Connect one end of the internet cable to the Network Control connector on the projector. Connect the other end of the internet cable to an available RJ-45 connector on your computer.
Page 29
Start browser in PC and specify following URL, then click “Go” button. URL: http://(Projector IP address)/ For example, if projector IP address is 169.254.1.1, specify URL: http:// 169.254.1.1/ If connection succeeds, the login screen is displayed. Enter your User name and Password and click “OK”.
Page 30
B. Manual IP address setting (DHCP: No): Set IP Address and Subnet Mask under Network Config. IP Address: Numerical address to identify networked computers. Subnet Mask: A numeric value to define the number of bits used for a network address of a divided network (or subnet) in an IP Address. Gateway: A server (or router) to communicate across networks (subnets) that are divided by Subnet Mask.
Page 31
Select "Intel Protocol (TCP/IP)" and click "Properties". Set your PC’s IP address, and click OK. Click "Use the following IP address" The network address portion included in the IP address set into your PC should be common with projector’s one. In this case, projector has “169.254.1.1”...
Page 32
Start browser in PC and specify following URL, then click “Go” button. URL: http://(Projector IP address)/ For example, if projector IP address is 169.254.1.1, specify URL: http:// 169.254.1.1/. If connection succeeds, the login screen is displayed. Enter your User name and Password and click “OK”.
Page 33
Control the projector via a web browser Login If the administrator and user passwords are disabled, it will directly go into the Status page. EN-30...
Page 34
If the Administrator & User passwords are enabled, select your User Name and enter password to login. Authority on the network control of Administrator & User: Item Status Show current projector status and network configuration settings. Control Control the projector via network. Network Setting Network configuration &...
Page 35
Status All screen images in this manual are shown when you login with the Administrator ID. The image will differ if you login with User ID. Item IP Address Show current IP address. MAC Address Show current MAC Address. Projector Name Show projector name.
Page 36
Control Item Basic Power Switch Power On or Power Off the projector via network. Input Source Select input source. Date Show date set on current projector. Time Show time set on current projector*. Volume Adjusts the volume setting. (0 - 20) Mute Enable or disable the mute function.
Page 37
Tint Adjusts the tint setting. (0 - 100) Sharpness Adjusts the sharpness setting. (0 - 31) Computer Image Frequency Adjusts the frequency. (-50 - +50) Tracking Adjusts the tracking. (0 - 31) H Position Adjusts the horizontal position. (-10 - +10) V Position Adjusts the vertical position.
Page 38
Network Setting Item Network DHCP Assign an IP address to the projector from the DHCP server automatically or manually. IP Address Setup IP address when DHCP is disable. Subnet Mask Setup subnet mask when DHCP is disable. Gateway Setup gateway when DHCP is disable. DNS Server Setup DNS server address when DHCP is disable.
Page 39
Setup the sender e-mail address. (Max length: 40 characters) Server To enter the SMTP server (Mail server) name of the company. For example: mail.viewsonic.com (Max length: 30 characters) User Name Enter user name of the sender’s e-mail account. (Max length: 20...
Page 40
Schedule The schedule function is divided into two scheduling categories, as shown below: Weekly Schedule: defines the date of each week will execute the command Click “Add” button to create new schedule. To delete schedule, click “Cancel”. Specific Day: defines the month and day that will execute the command. Click “Submit”...
Page 41
Tips for solving web page problems: If your web page is not running smoothly, please follow below steps to set the browser. Go to Tools > General and click "Settings". EN-38...
Page 42
Click "Every visit to the page" and "OK". Click "OK" to exit "Internet Properties". EN-39...
Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.
Replacing the Lamp As the projector operates over time, the brightness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself.
Page 45
Turn off the projector. If the projector is installed in a ceiling mount, remove it Unplug the power cord. Loosen the screw in the side of the lamp cover and remove the cover. Remove the screws from the lamp module, raise the handle, and lift out the module.
Specifications Display system Resolution Zoom F/No. Focal length Screen size Lamp Input terminal Output terminal Control terminal Speaker Video compatibility Scanning frequency Horizontal frequency Vertical frequency Environment Power requirement Power consumption Dimension (W x D x H) Weight Note: Design and Specifications are subject to change without prior notice. Single 1.397cm / 0.55"...
Appendix LED Indicator Messages LED Type Color Power LED Blue Lamp LED Temp LED Power LED Blue Lamp LED Temp LED Power LED Blue Lamp LED Temp LED Power LED Blue Lamp LED Temp LED Power LED Blue Lamp LED Temp LED Power LED Blue...
Compatibility Modes Computer: Compatibility Resolution 640 x 480 640 x 480 @ 120Hz 720 x 400 SVGA 800 x 600 800 x 600 @ 120Hz 1024 x 768 1024 x 768 @ 120Hz 1152 x 864 1280 x 960 SXGA 1280 x 1024 1280 x 960 1280 x 1024...
Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well. Start-up problems If no lights turn on: Be sure that the power cord is securely connected to the projector and the other end is plugged into an outlet with power.
RS-232 Command and Configuration Baud Rate:19200 Parity Bit:none Data Bit:8 Stop Bit:1 Assign Port:COM1 Operation Name type BE, EF, 10, 05, 00, Power BE, EF, 03, 06, 00, Computer (Analog RGB) BE, EF, 03, 19, 00, YCbCr BE, EF, 03, 19, 00, S-Video BE, EF, 03, 19, 00, Source...
Page 52
D-Sub 9 pin 1 CD Wire List COLOR Black Brown Orange Yellow Green Blue Purple White SHELL SHELL EN-49...
IR Control Code EN-50 Format Byte1 Power Source Down Left Right MENU Auto Mouse ViewMatch Freeze Enter / Mouse Left Exit / Mouse Right KeyS+ KeyS- Digital Zoom+ Digital Zoom- Volume+ Volume- Mute Blank Byte2 Byte3 Byte4...
